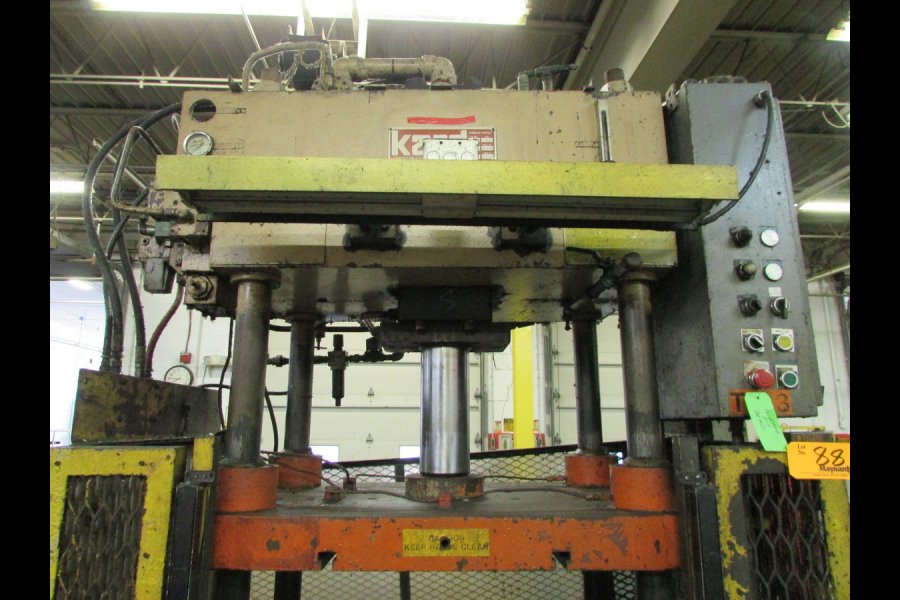

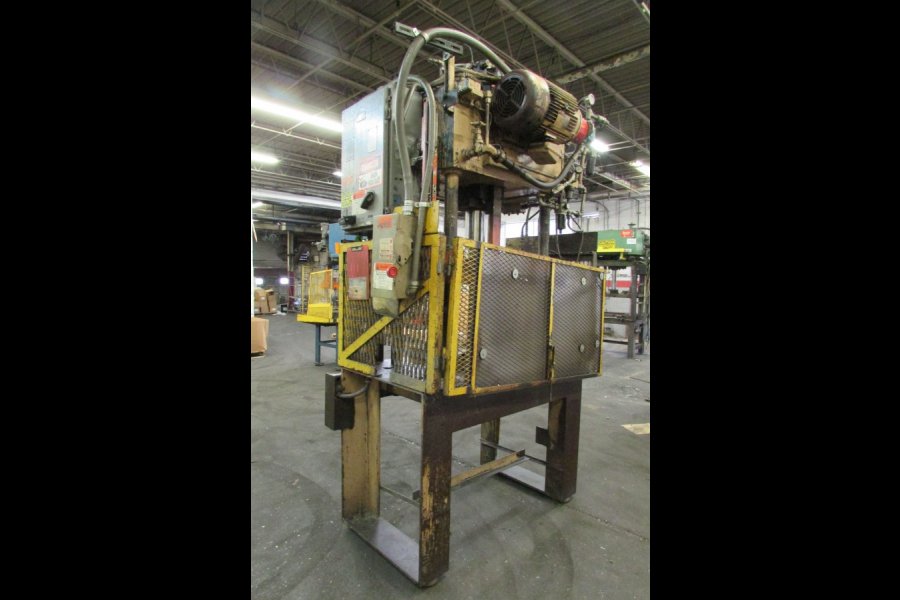

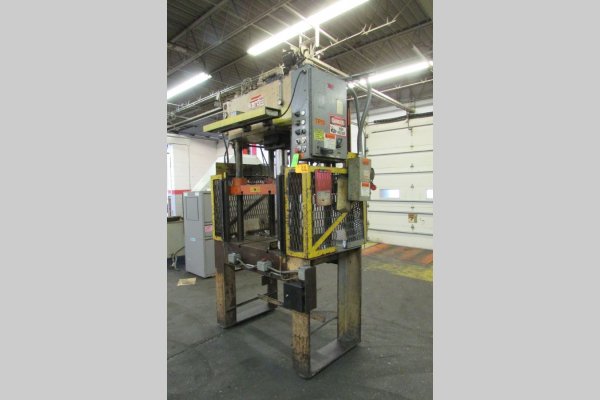

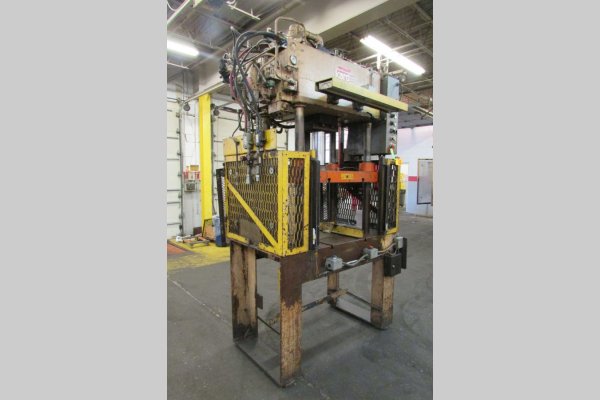

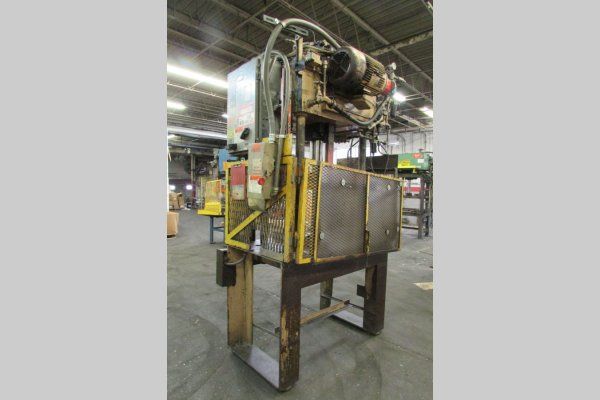

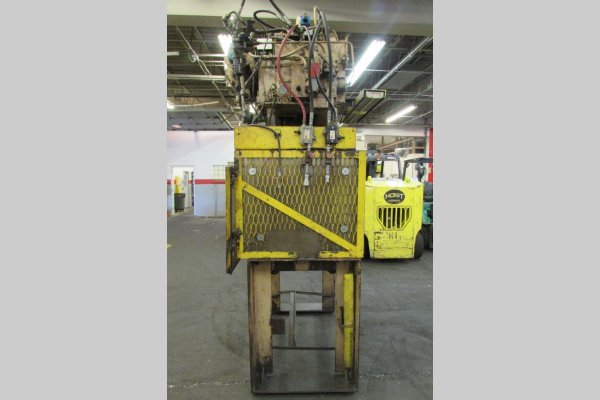

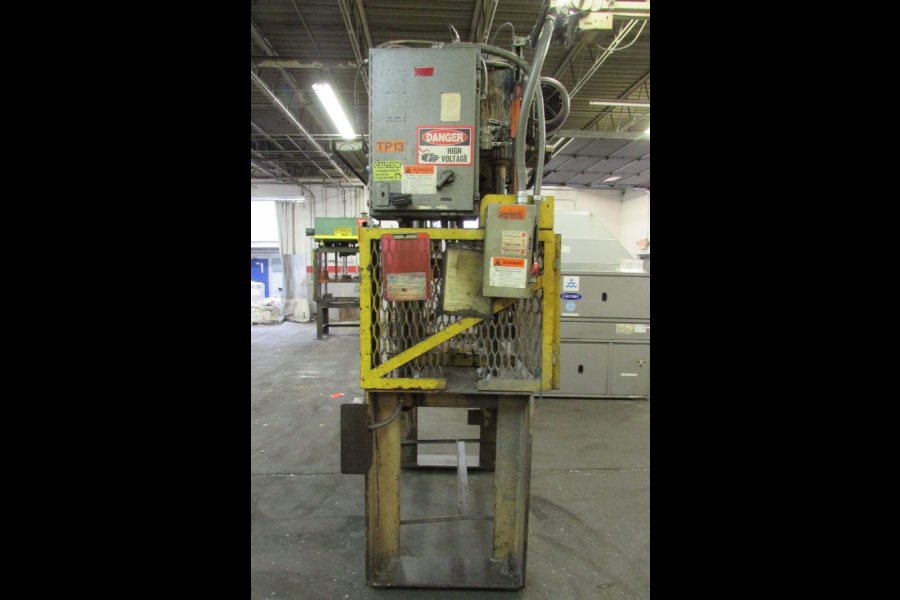

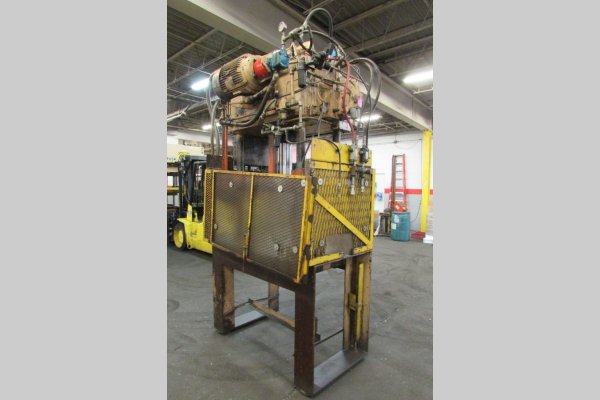

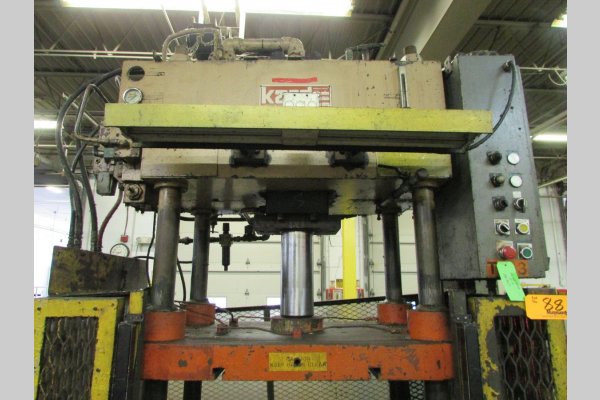

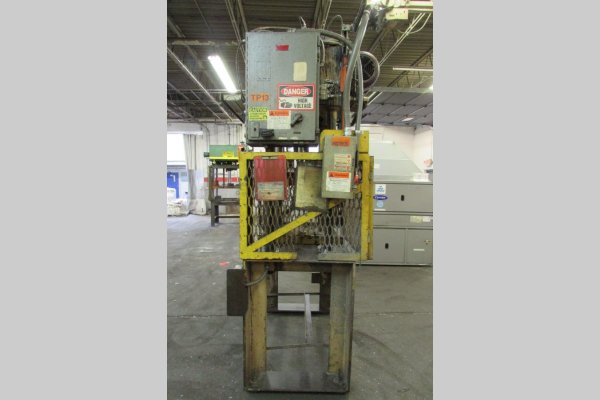

Used Kard Trim Press Model: TP-30-4 30 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Kard Trim Press
Model: TP-30-4
Size: 30 U.S. Ton
Inventory Number: DCM-4931

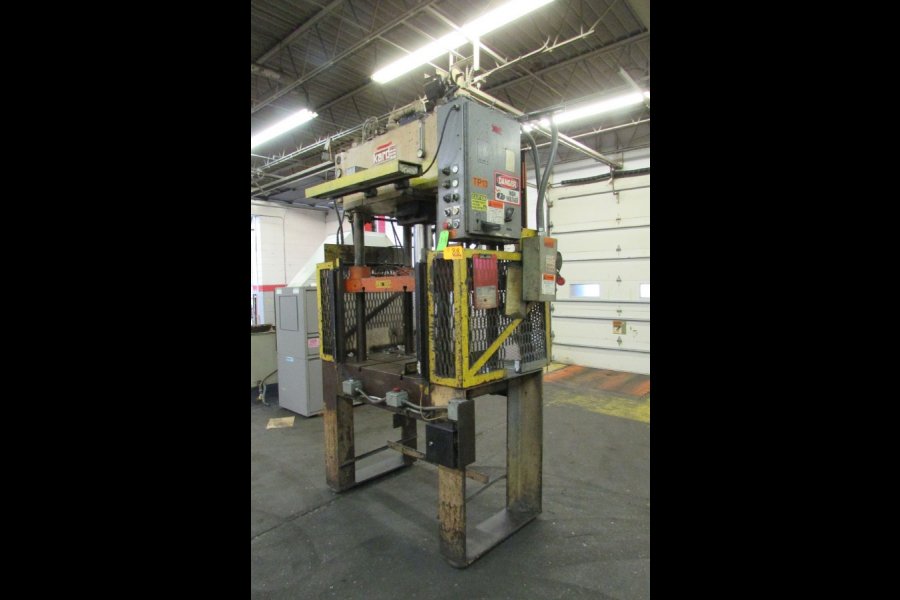

Used Kard Trim Press Model: TP-30-4 30 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press.
Features & Accessories:
- Located near die cast cell #26 (HPM II-400-A)
- Air Safety Ratchet
- Drill & Tapped Bed and Moving Platen

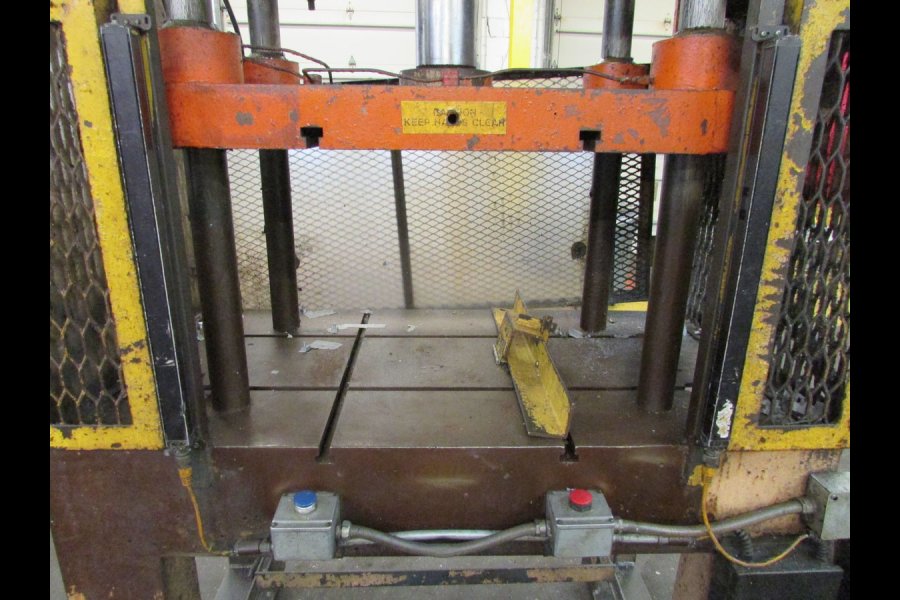

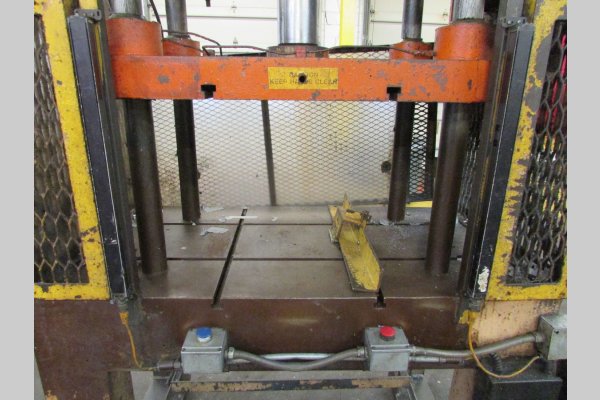

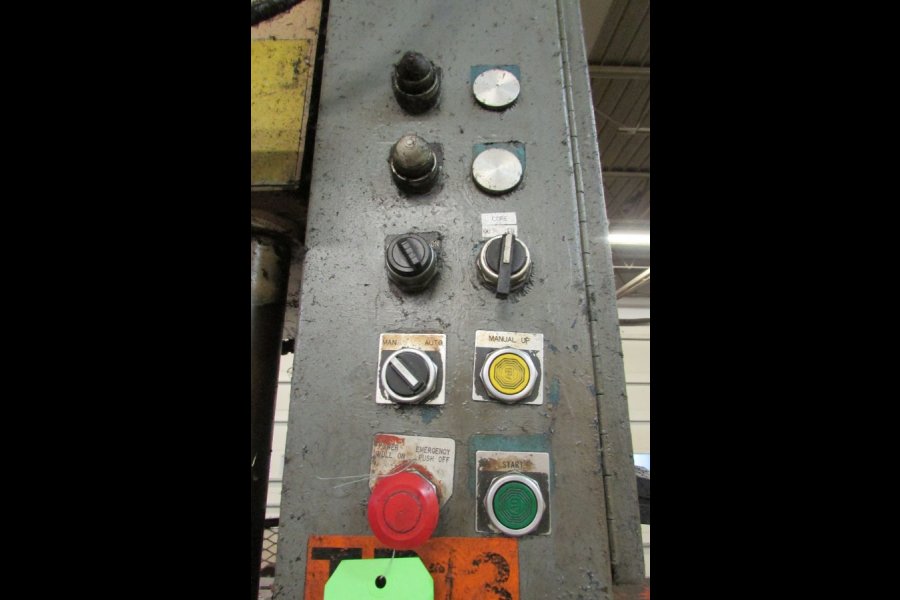

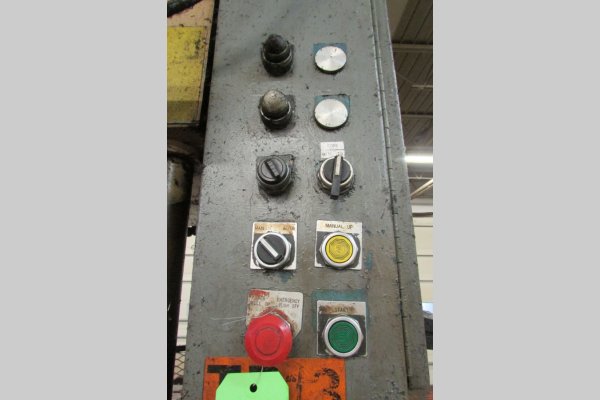

- Dual Palm Button Operation

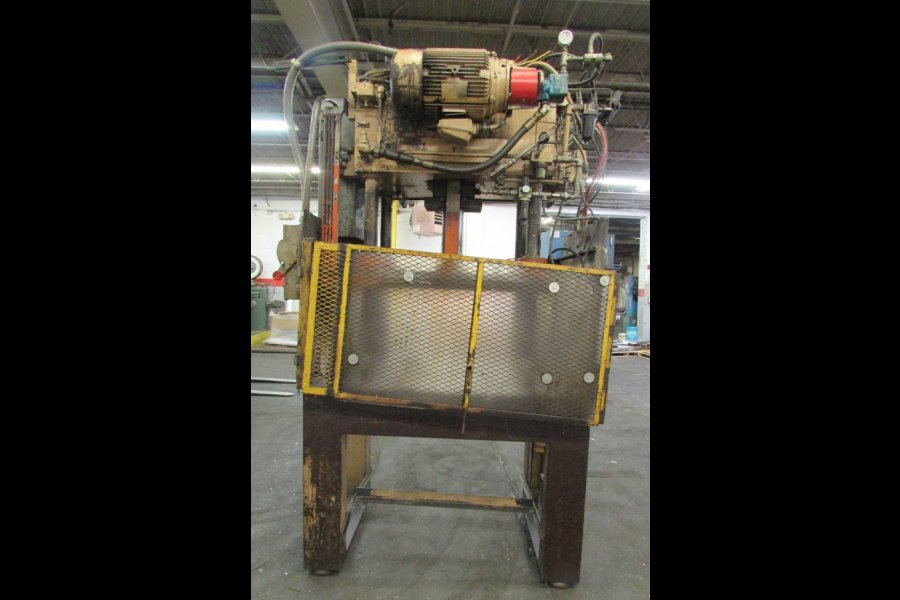

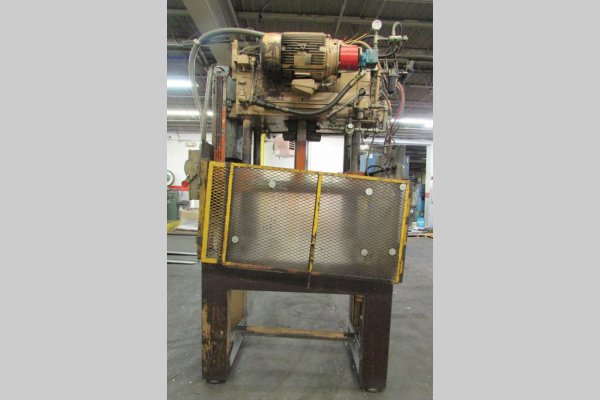

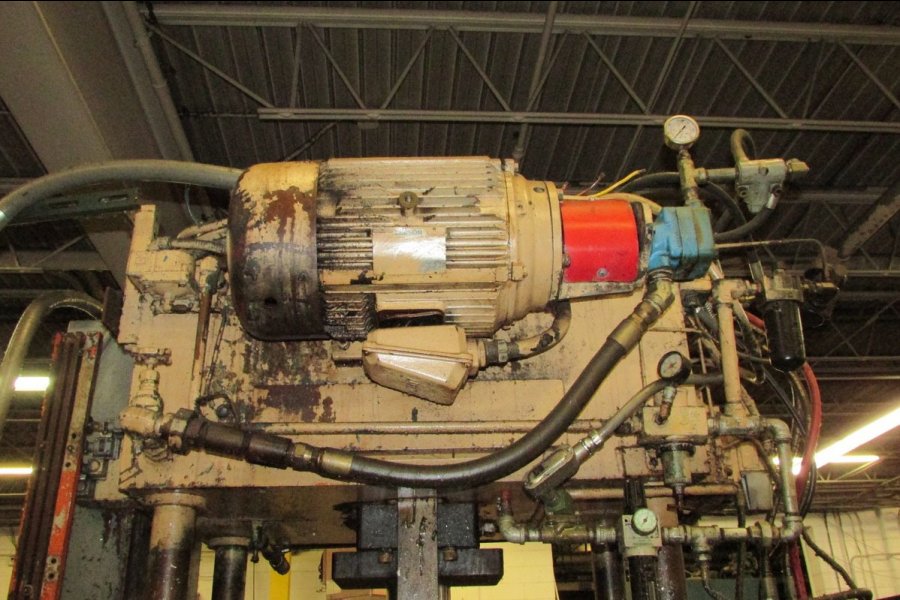

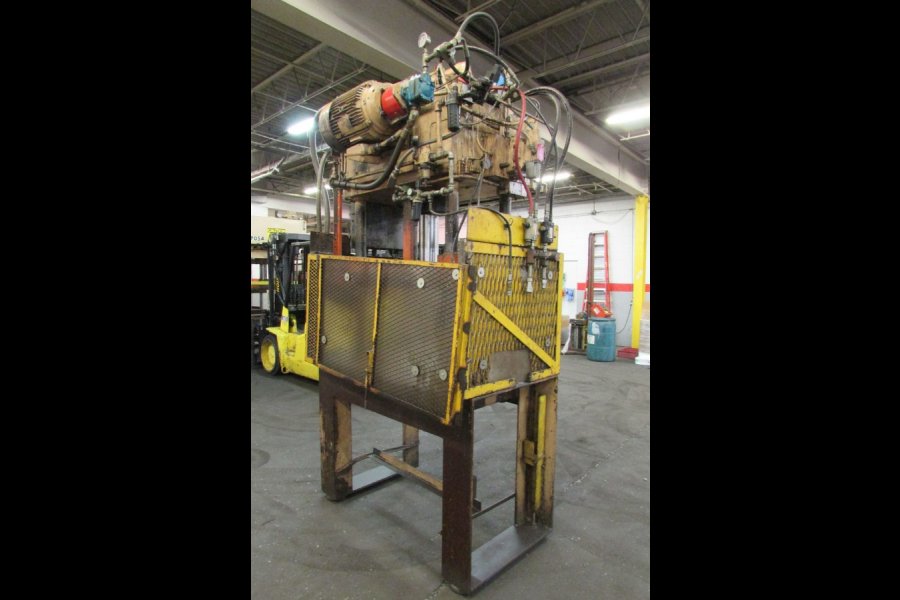

- Top Mounted Hydraulics
Item Specifications for DCM-4931
| Specifications | |
|---|---|
| Model: |
Kard TP-30-4
|
| Pressing Tonnage: |
30 tons
|
| Number of Columns: |
4
|
| Tie Bar Diameter: |
3 inches
|
| Daylight: |
26 inches
|
| Stroke: |
14 inches
|
| Shut Height: |
12 inches
|
| Clearance between Tie Bars (Left to Right): |
36 inches
|
| Clearance between Tie Bars (Front to Back): |
16 inches
|
| Bed Size (Left to Right by Front to Back): |
48 x 28 inches
|
| Cut out Size in Bed: (L/R x F/B) |
20 x 14 inches
|
| Overall Size: |
55 x 48 x 120 inches
|
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
| Metal Mechanics 35 Ton Trim Press | |
| Metal Mechanics 35 Ton Trim Press | |
| Birch 30 Ton Trim Press | |
| Metal Mechanics 50 Ton Trim Press |
Shipping Terms: Ex-site
We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.
Description
Used, Kard Trim Press Model TP-30-4 30 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet, Drill & Tapped Bed and Moving Platen, Dual Palm Button Operation, Top Mounted Hydraulics, controls, second Hand, DCM-4931
See jumbo large photos of this Kard Trim Press TP-30-4
