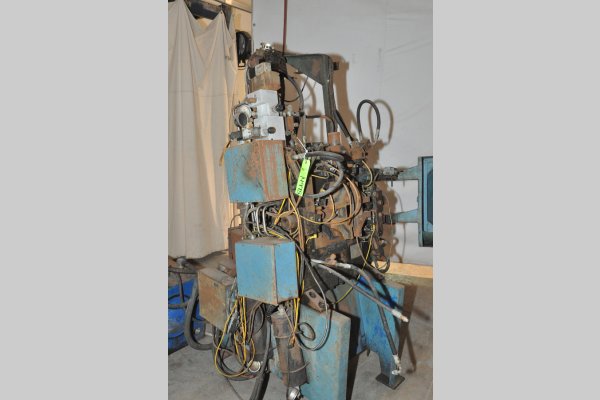

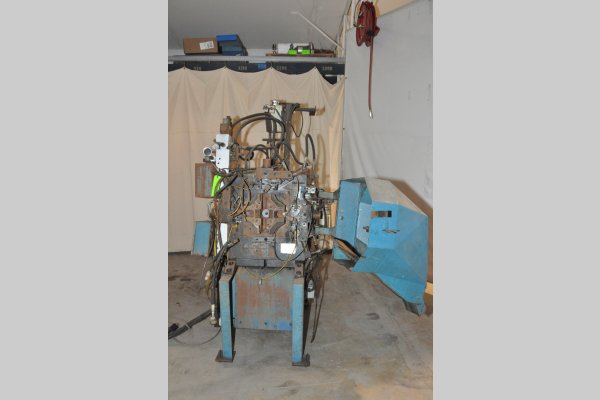

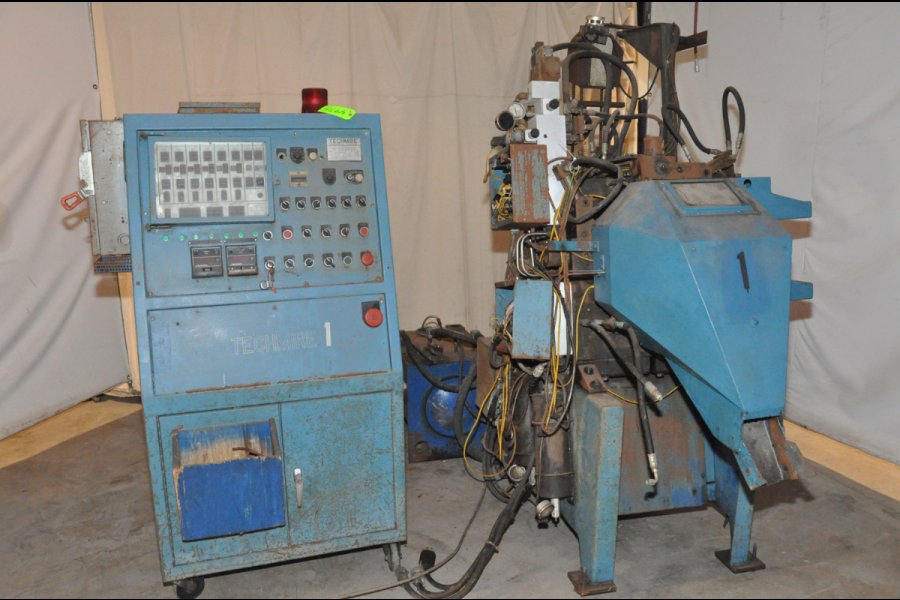

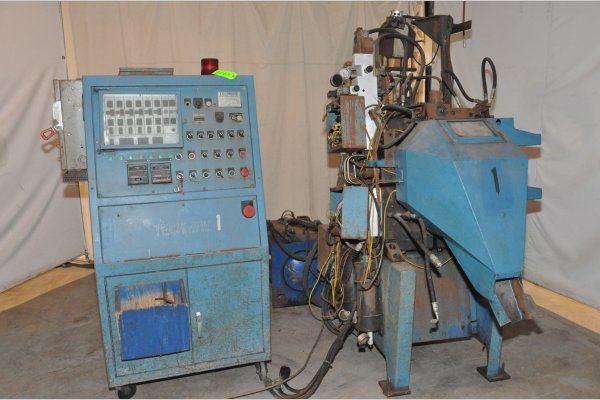

Used Techmire Model: 22Z 8 ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine

Print PDF

Status: Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Techmire

Model: 22Z

Size: 8 ton

Inventory Number: DCM-4975

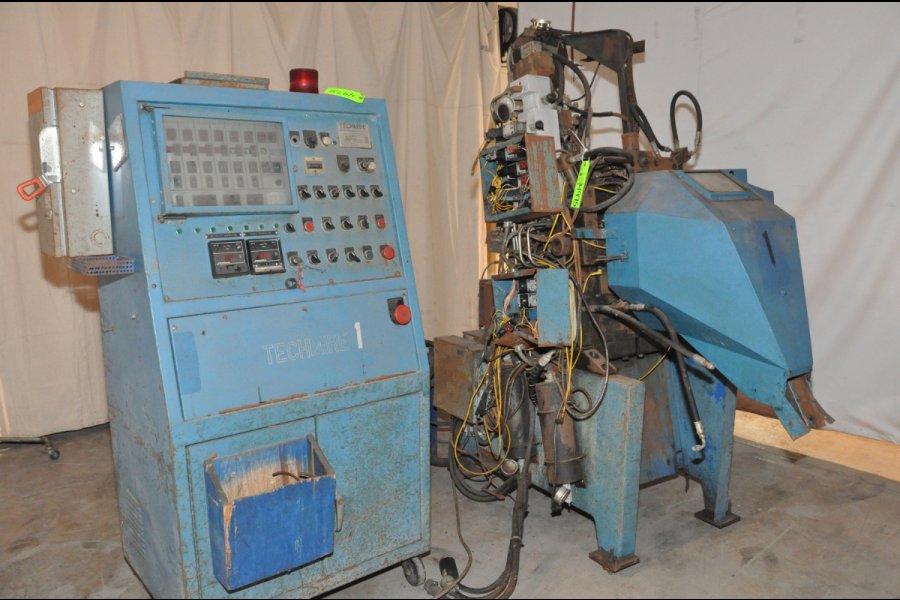

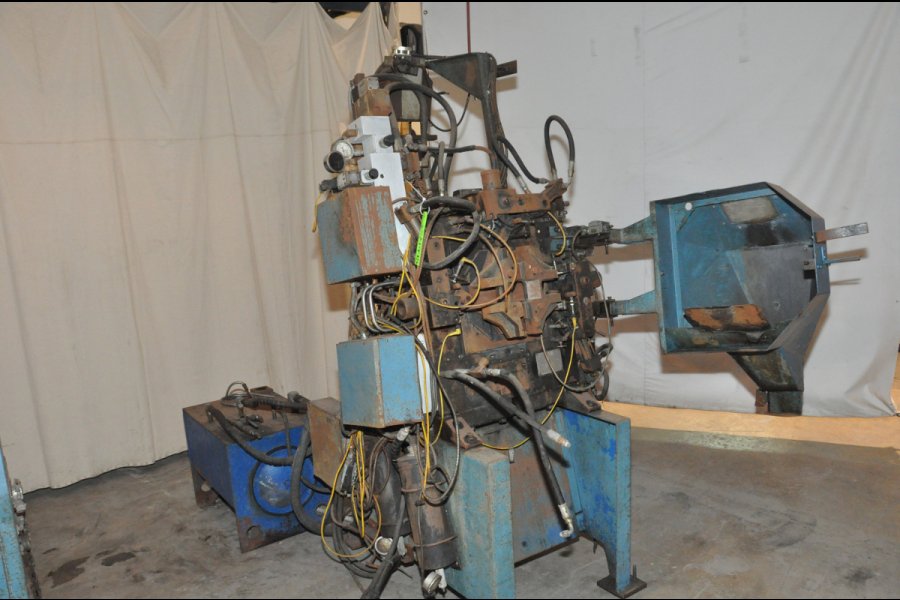

Used Techmire Model: 22Z 8 ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine.

View Available Four Slide Die Casting Machines

Features & Accessories:

Item Specifications for DCM-4975

Standard Die Size:
2.5 x 2.5 inches
Injection Capacity (zinc):
6.58 ounces
Plunger Diameter:
1 inch
Maximum Injection Pressure:
4,000 psi
Maximum Hydraulic Line Pressure:
1060 psi
Stroke of each Die Member:
1.5 inches
Maximum Total Die Opening:
3.0 inches
Clamping Force:
7.9 Tons
Furnace power/bath capacity/melt rate in zinc:
14.5 kw/280 pounds/132 pounds per hour
Main Pump Motor:
10 hp
Machine Weight:
3700 pounds
Floor Space Required (width x depth):
4.6 x 6.2 feet

Shipping Terms: F.O.B. Warehouse

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

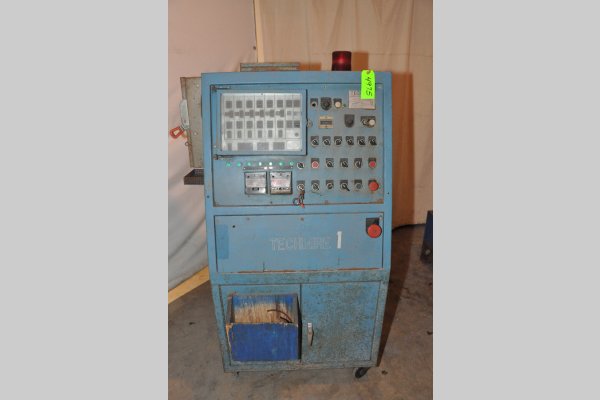

Used, Techmire Model 22Z 8 ton Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: , Can be upgraded to the New Techmire 44 Ring System with Locking Cylinders; Upgradeable to Techmire H13 Gooseneck and/or Stainless Steel Pot, Techmire 22Z (aka 22 or 2x2 or 2 x 2 or 22 z) Die Casting Machines are Manufactured in Montreal, Quebec Canada Techmire controls, second Hand, DCM-4975

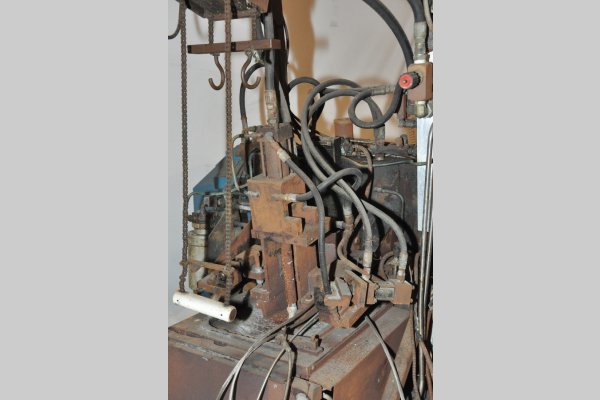

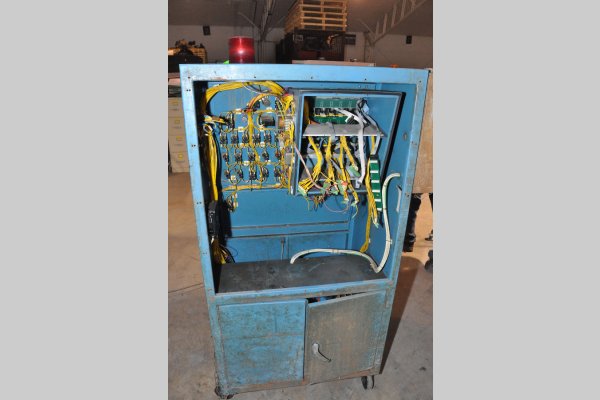

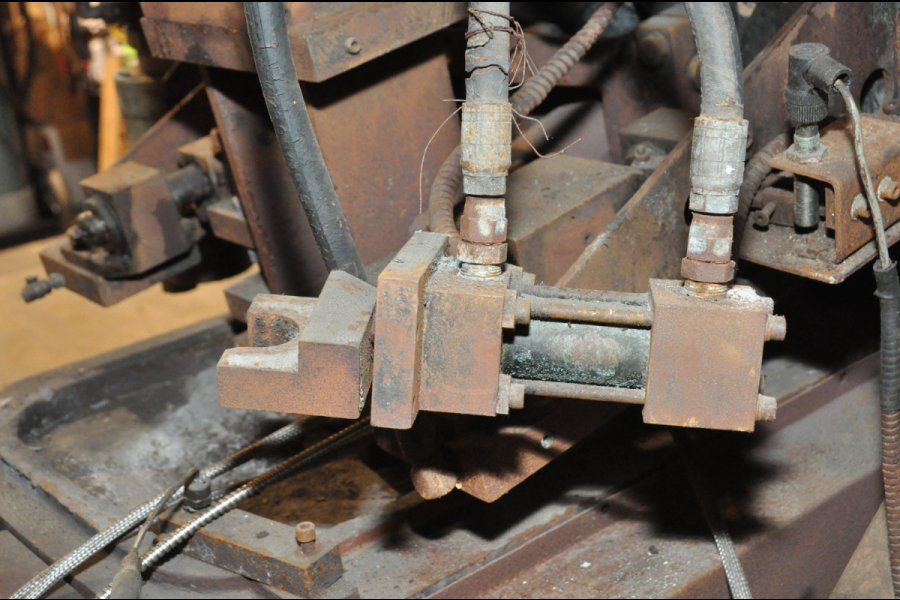

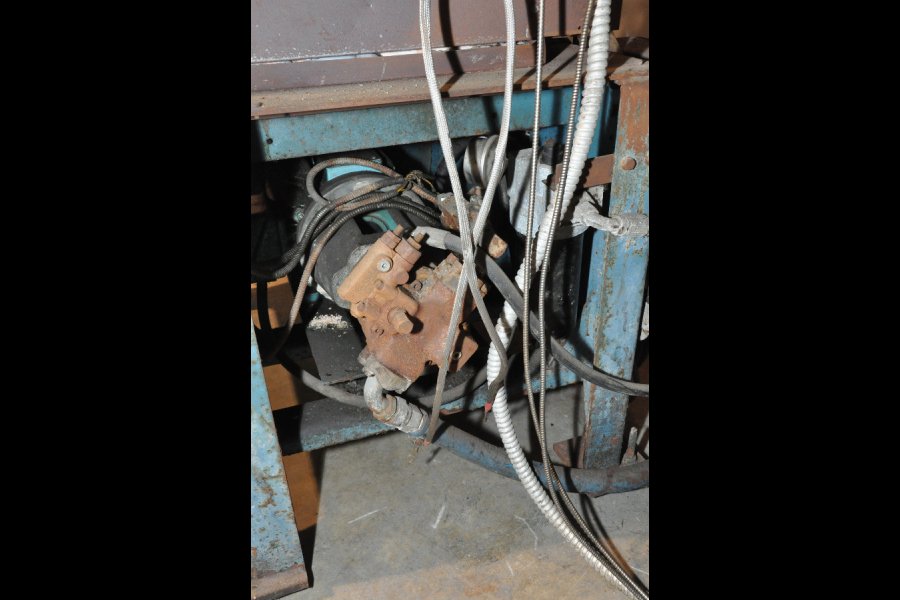

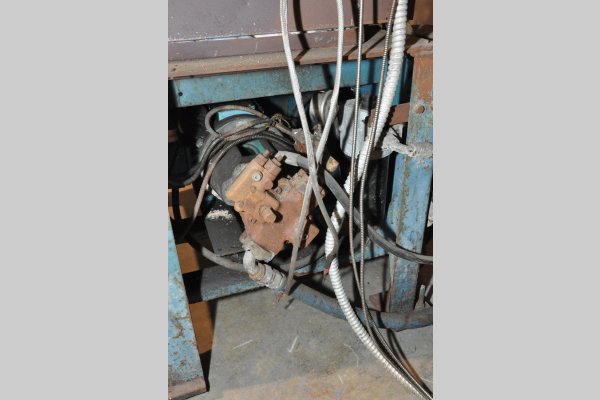

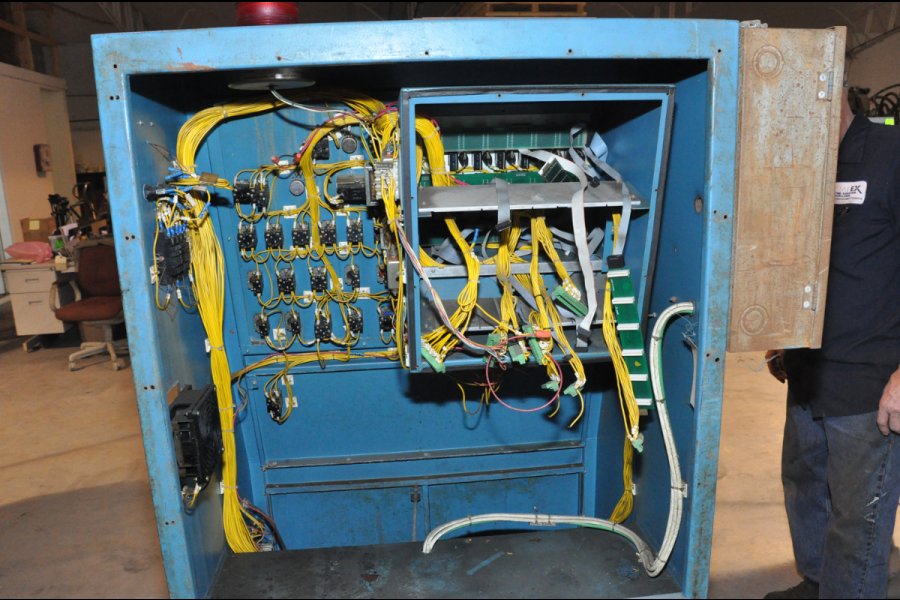

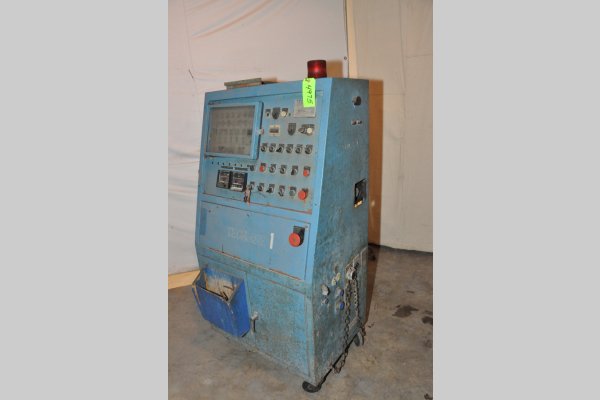

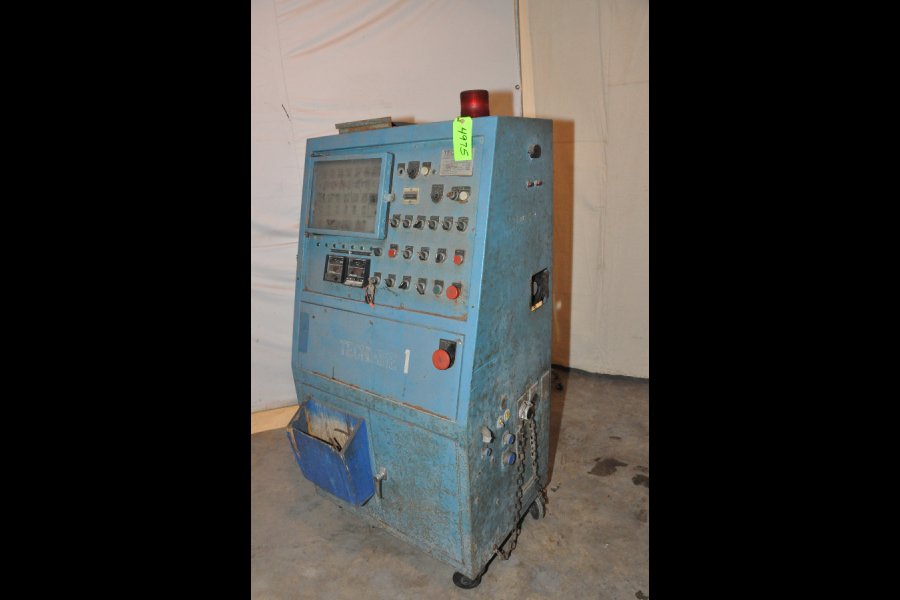

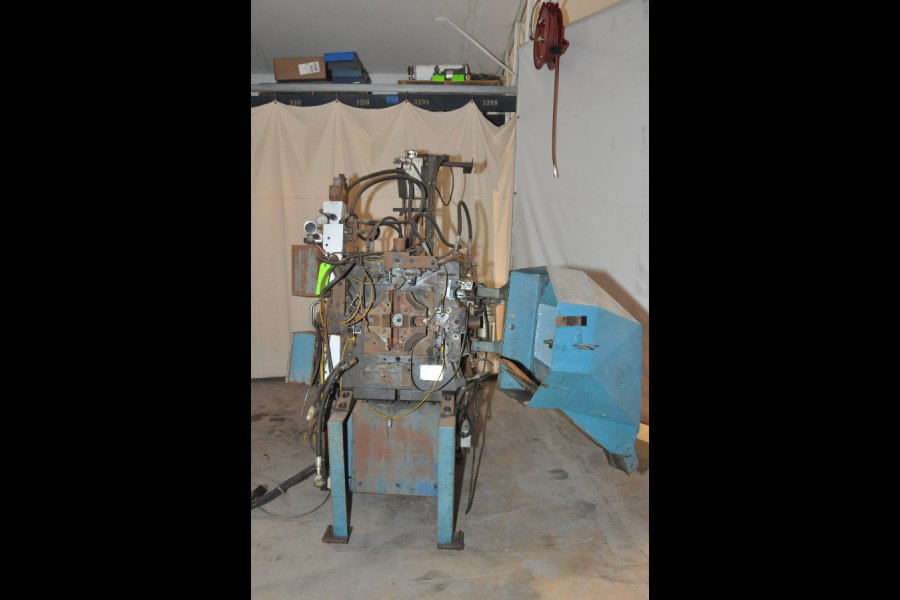

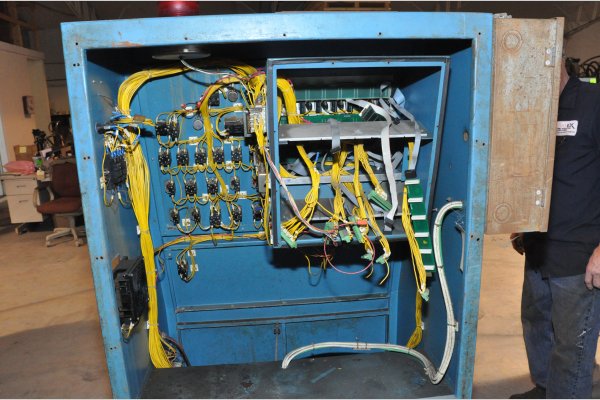

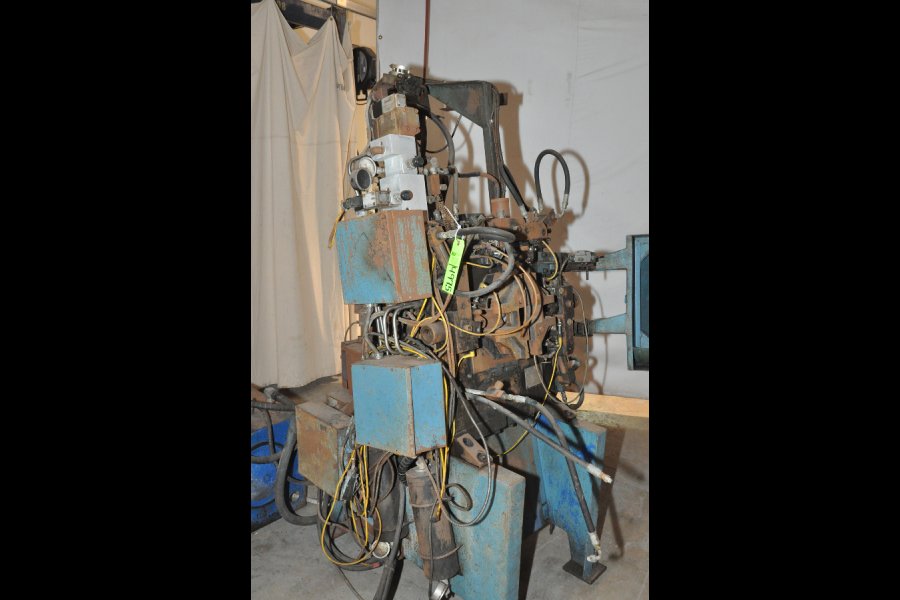

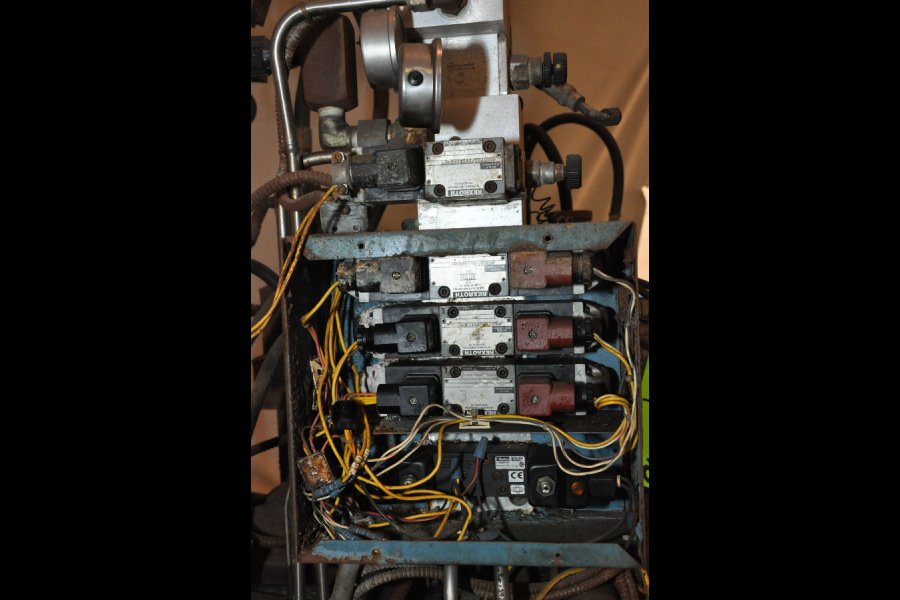

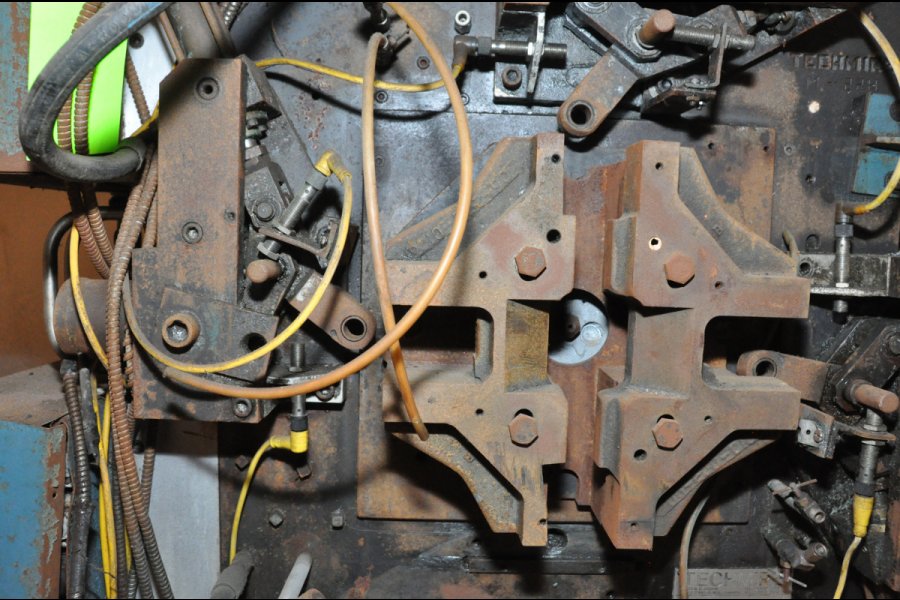

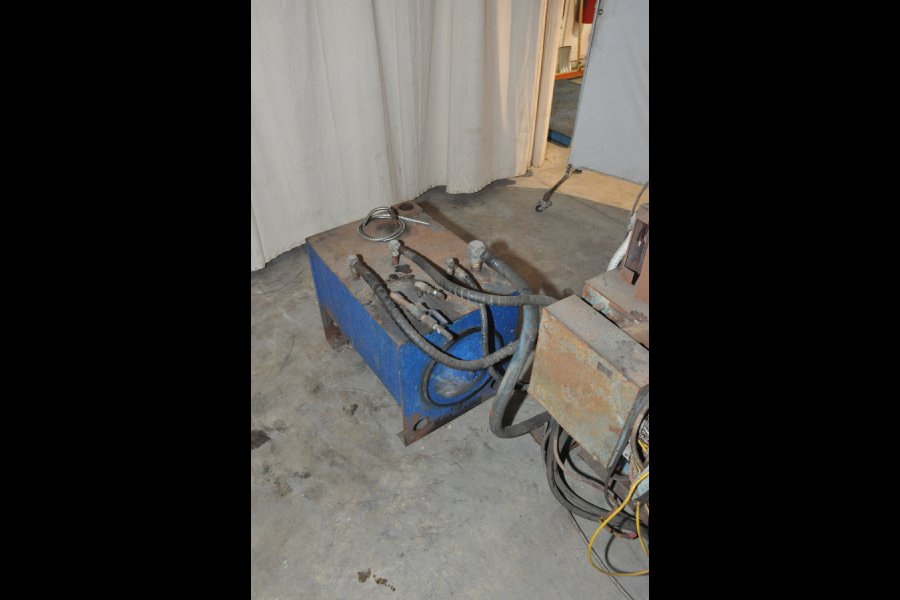

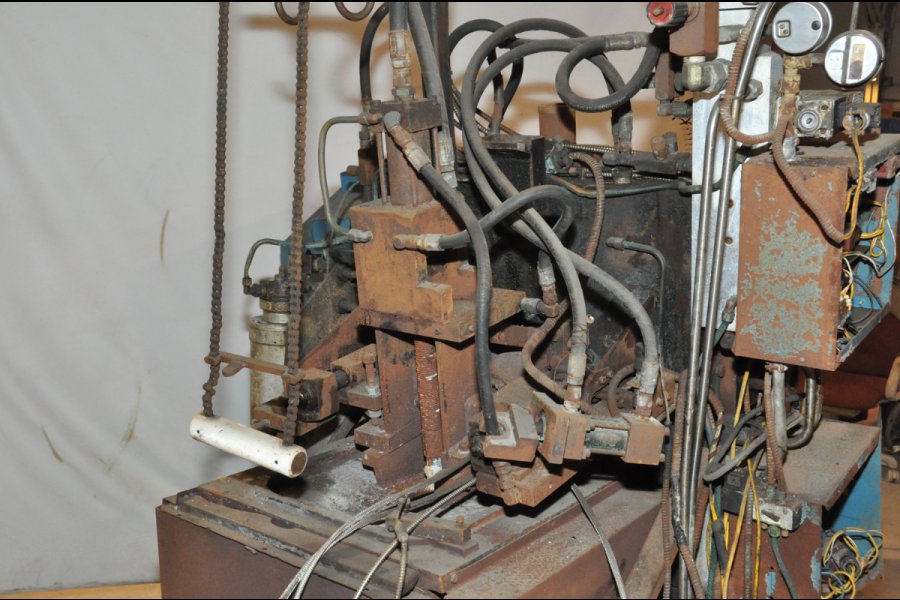

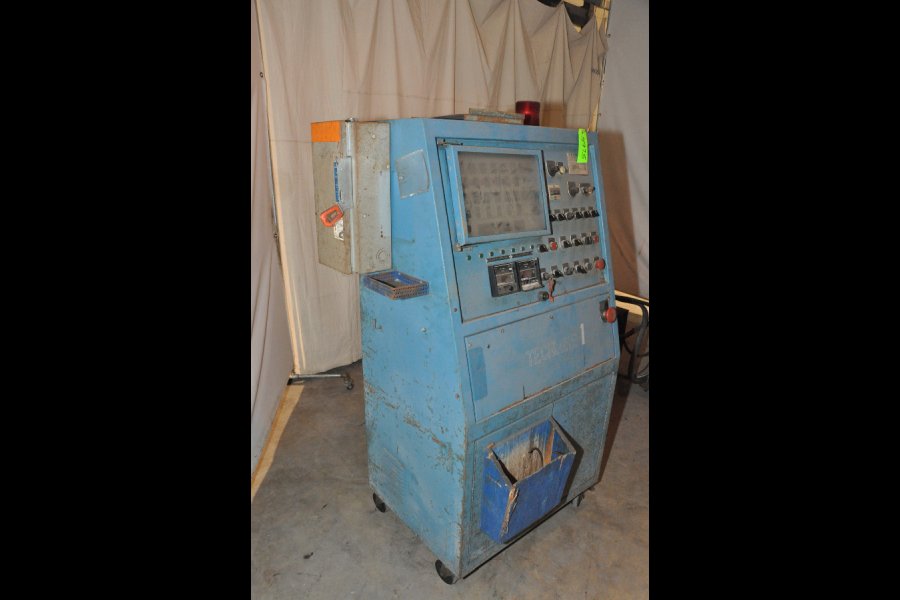

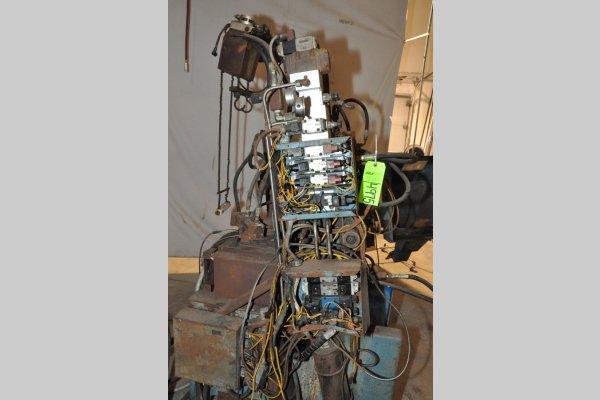

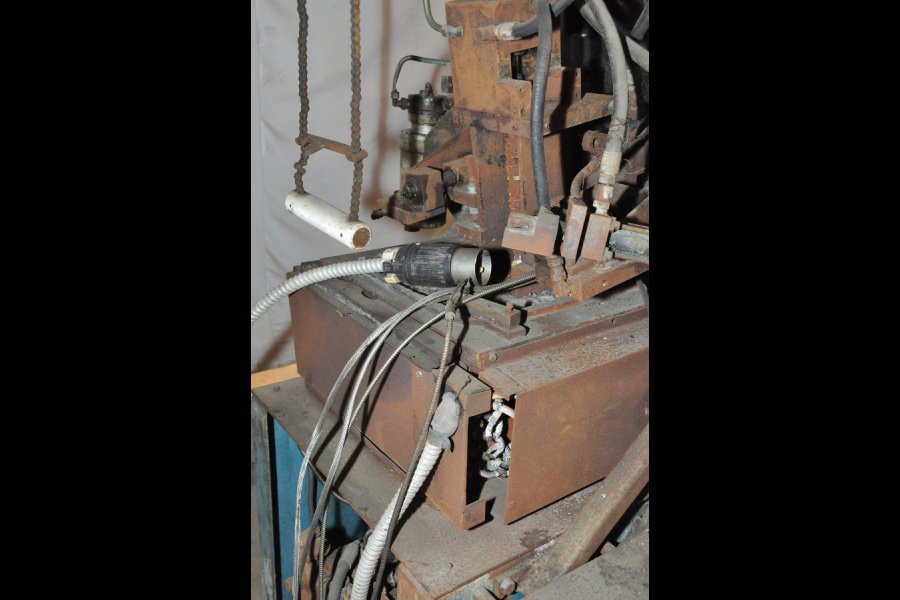

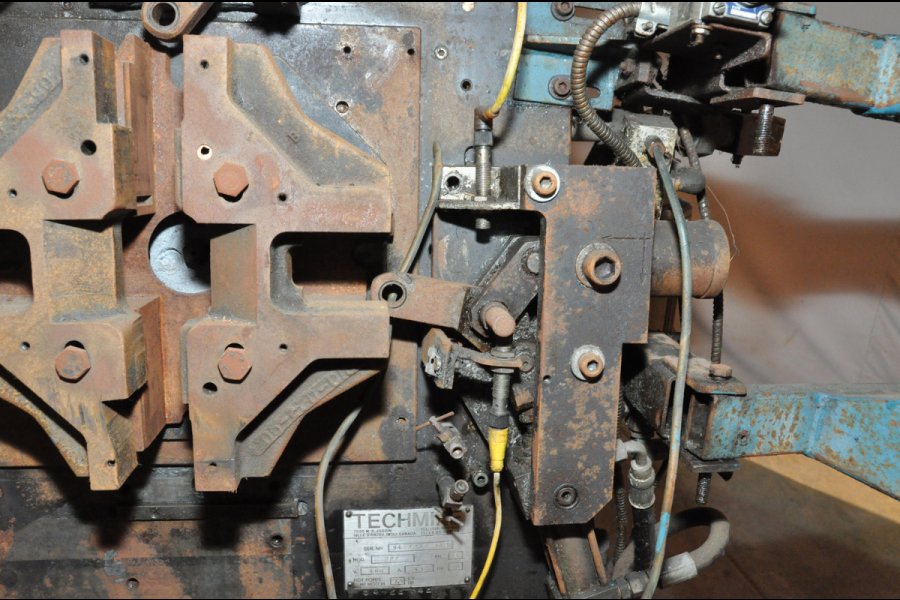

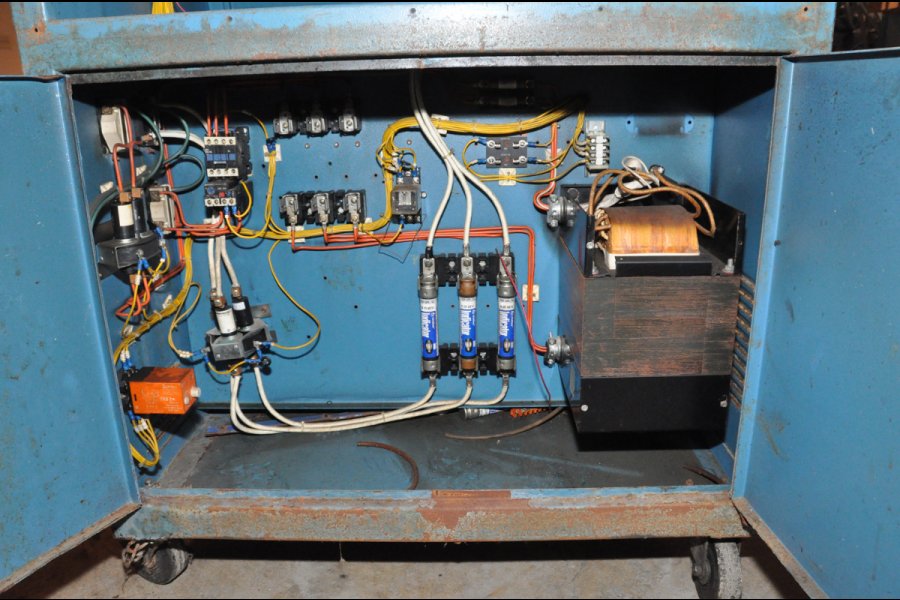

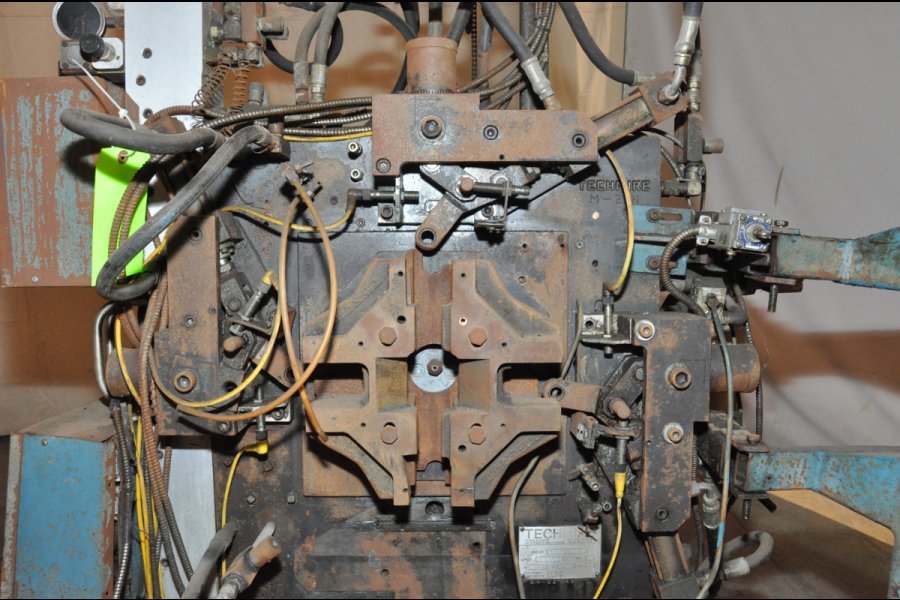

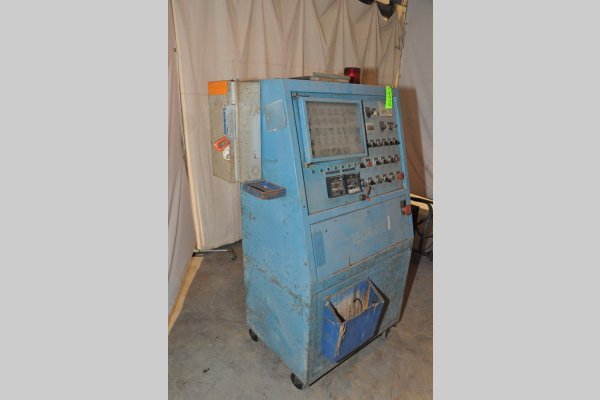

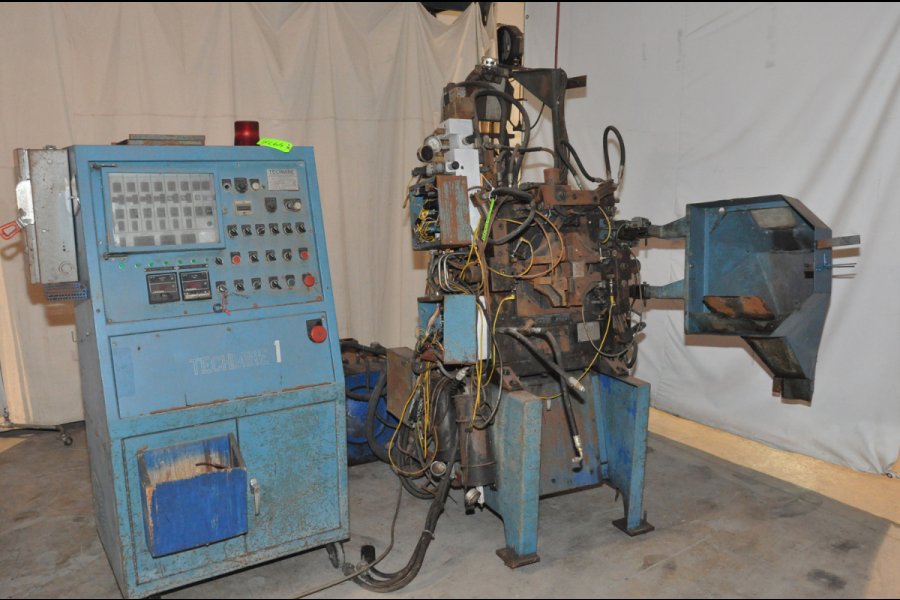

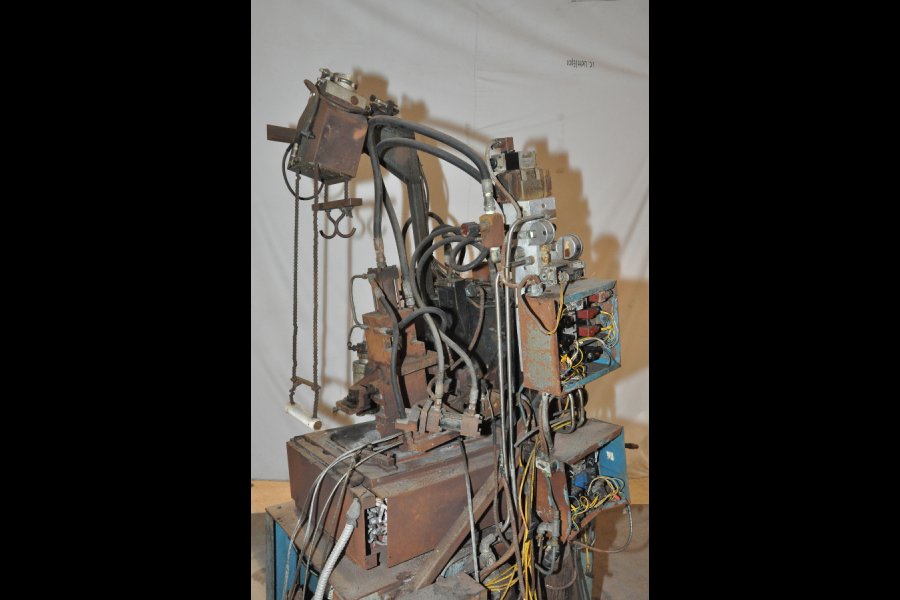

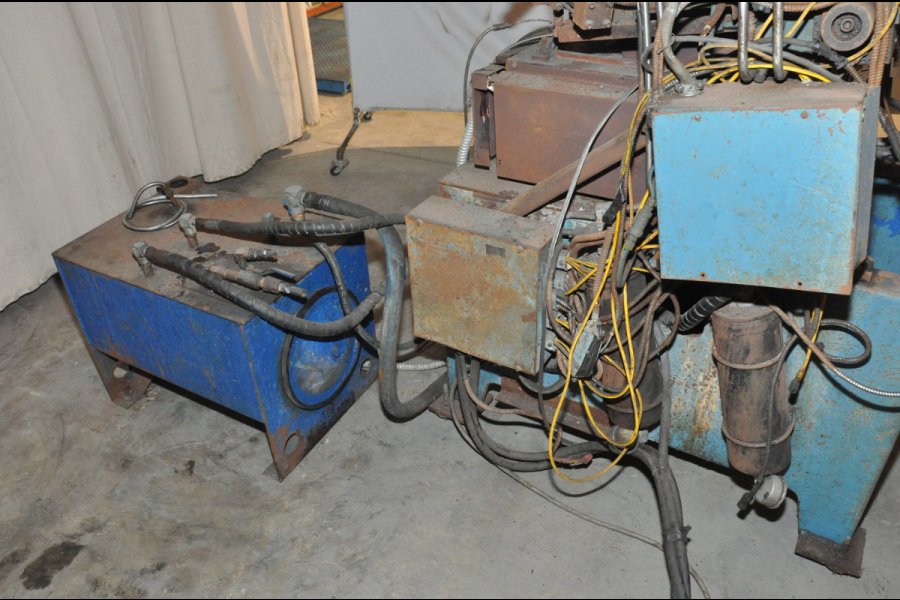

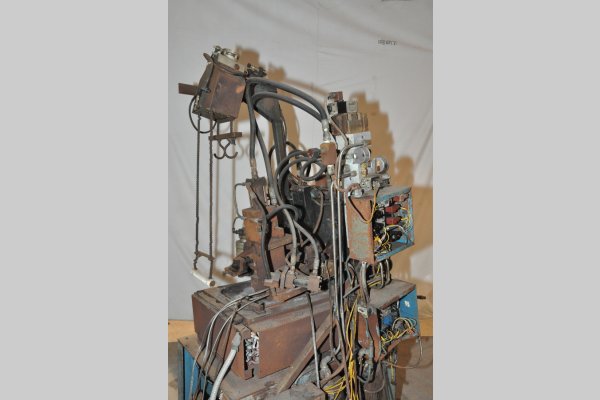

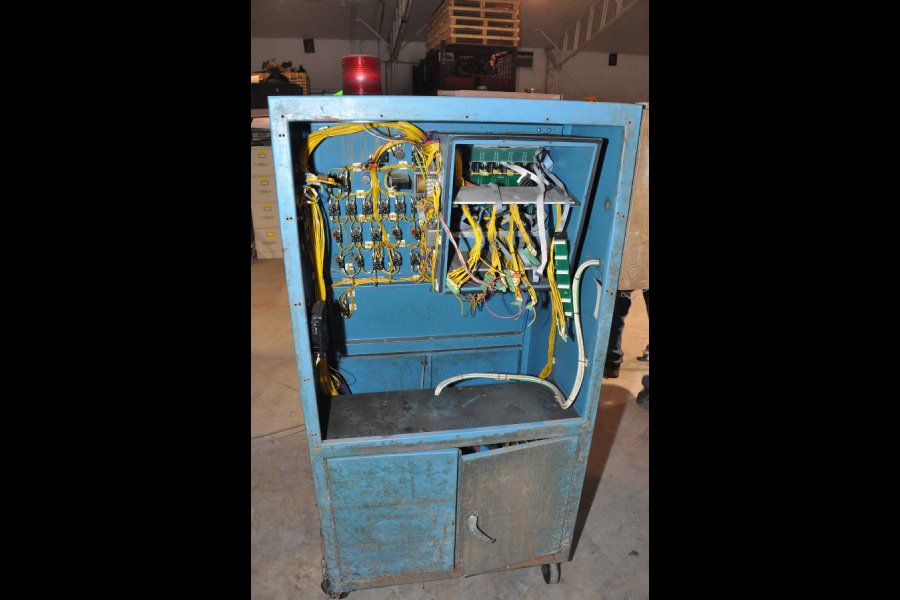

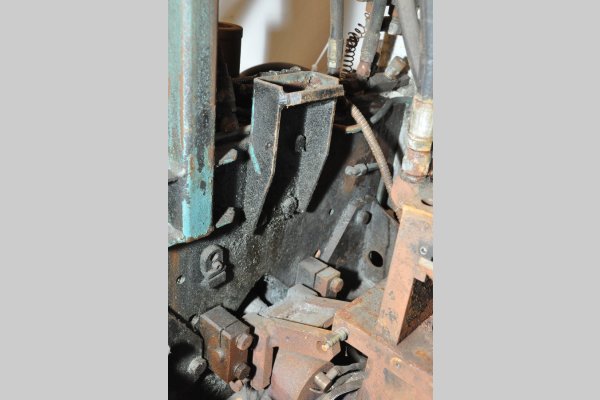

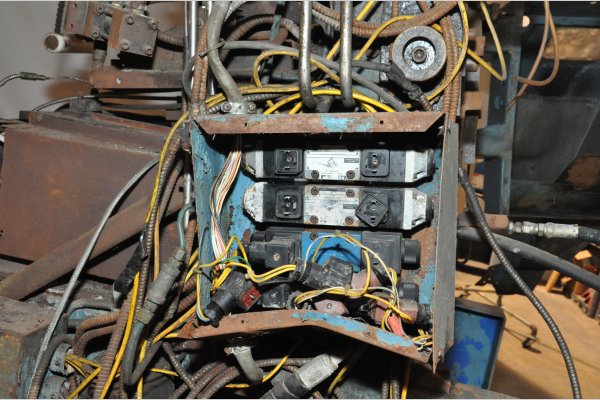

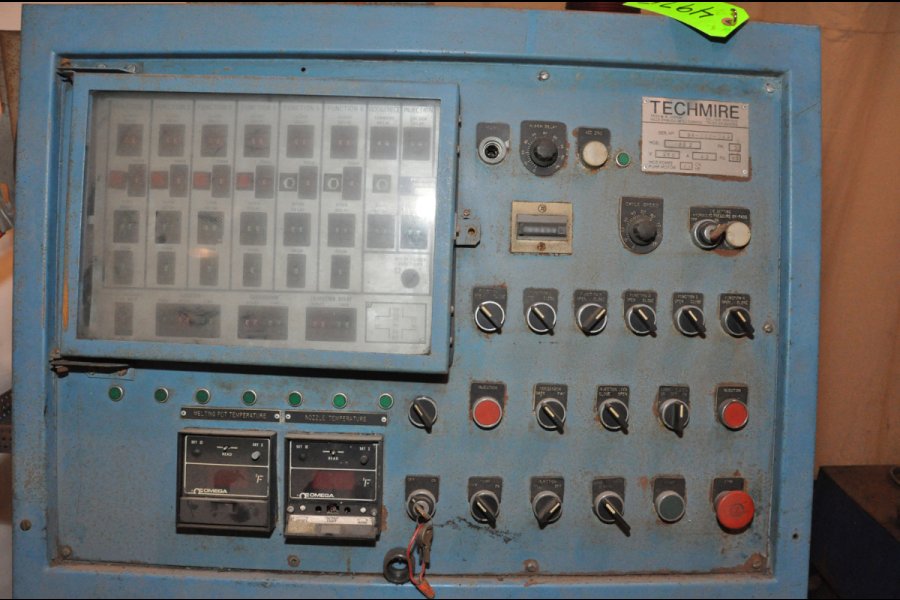

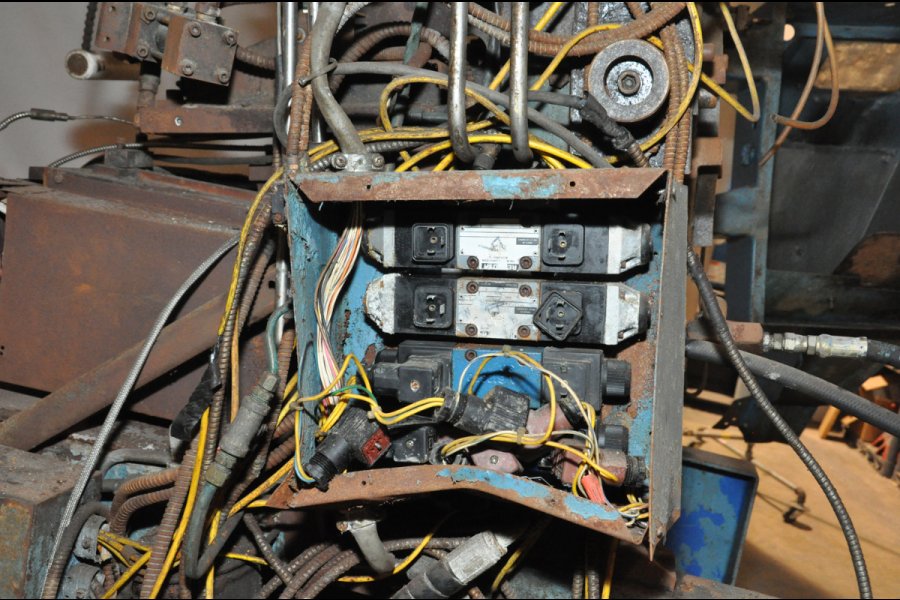

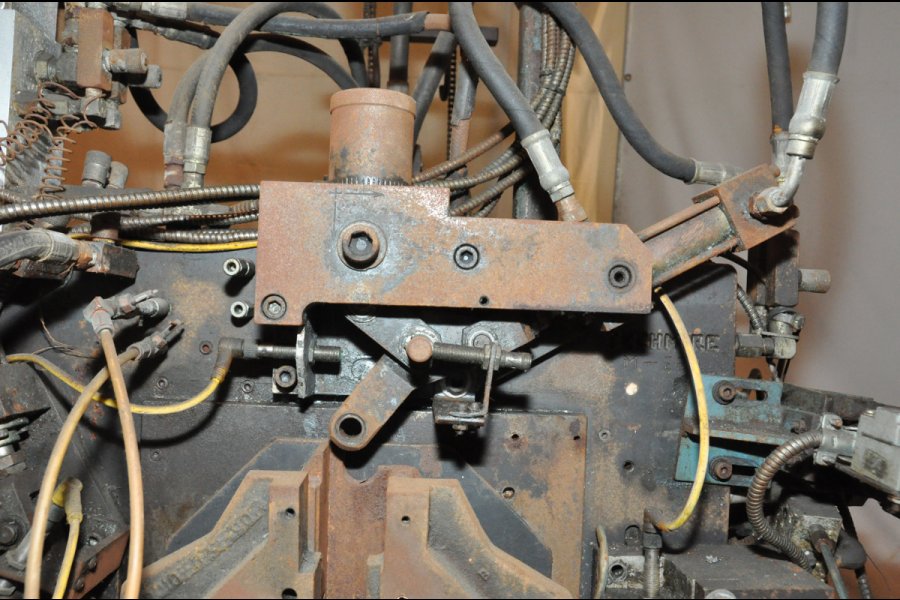

See jumbo large photos of this Techmire 22Z
