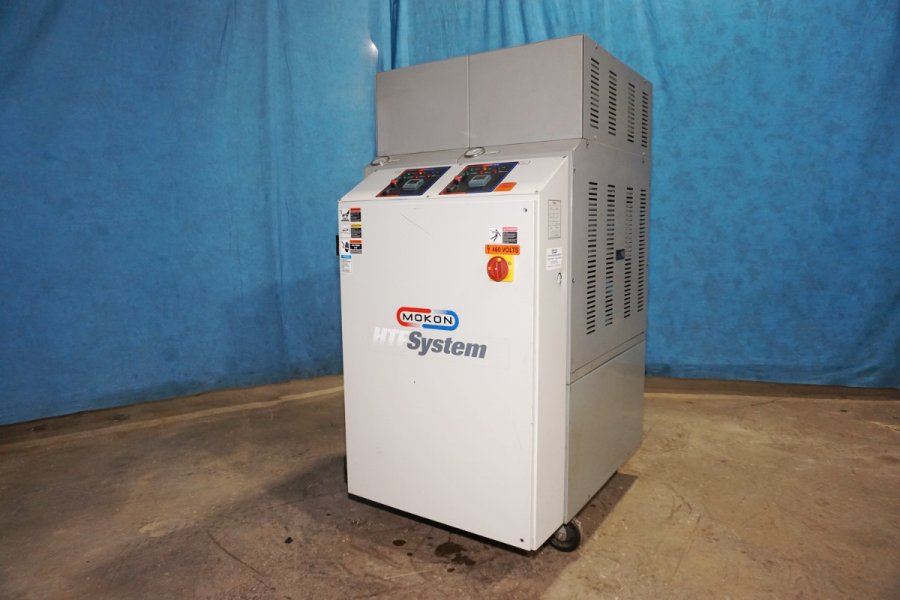

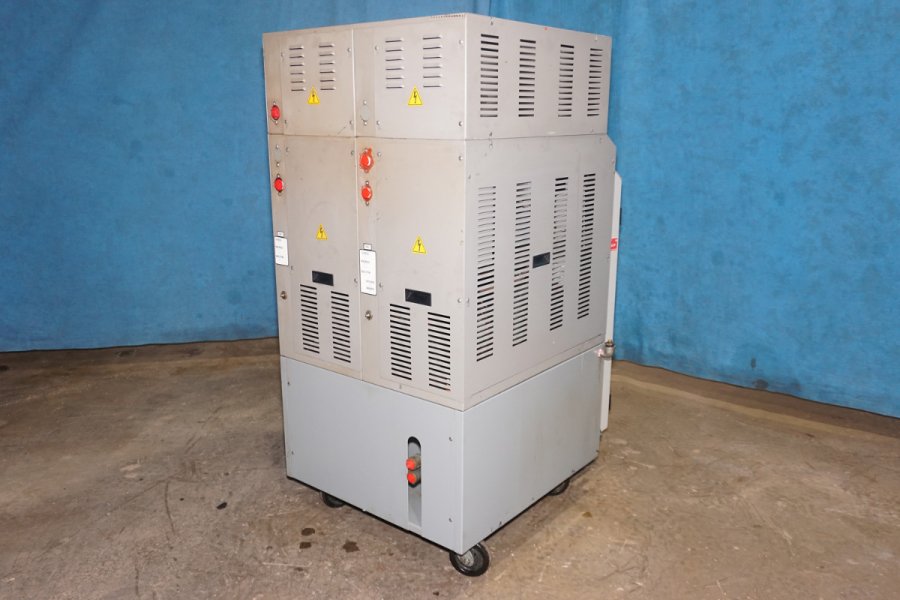

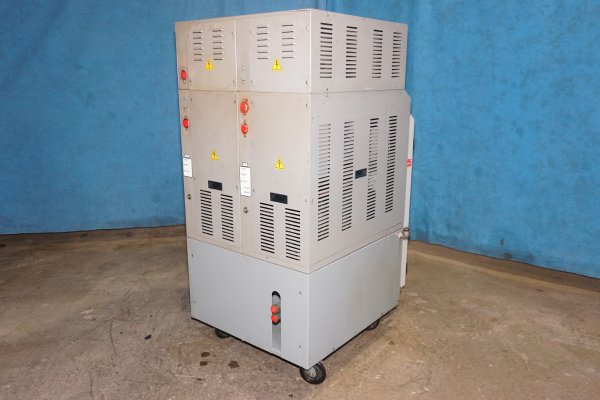

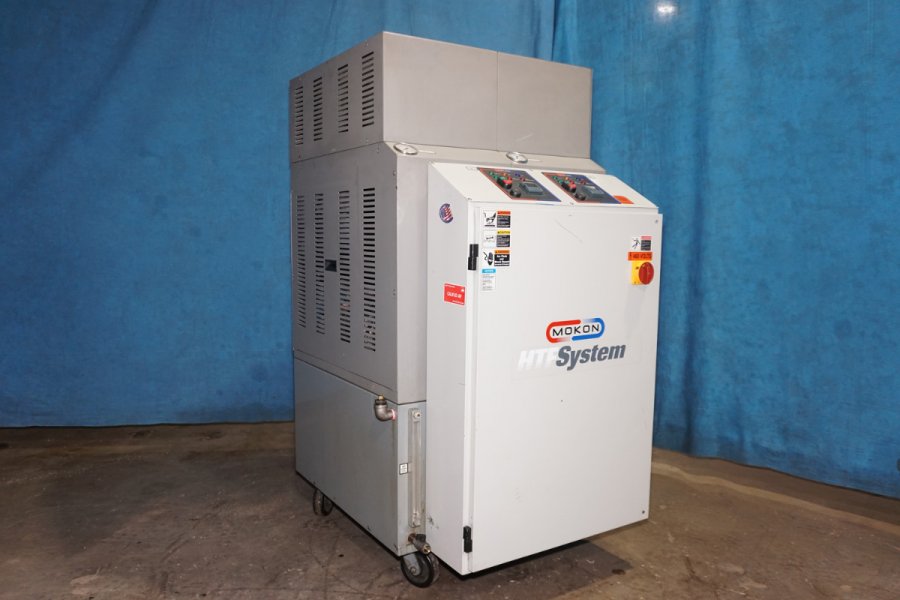

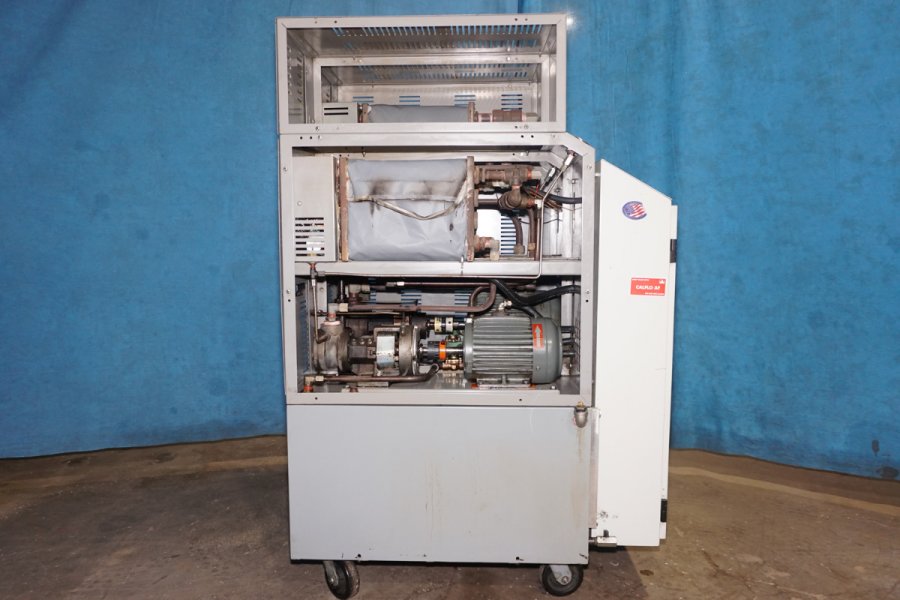

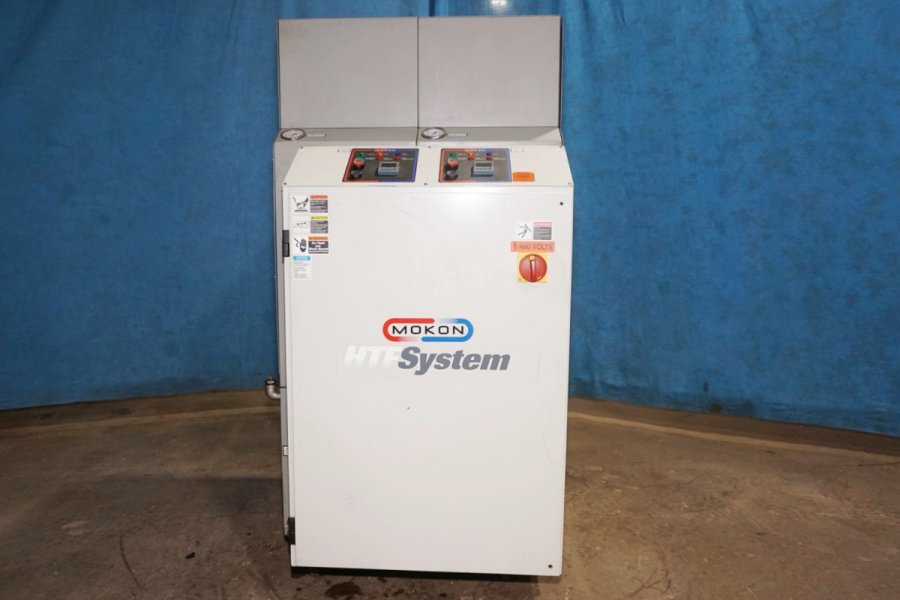

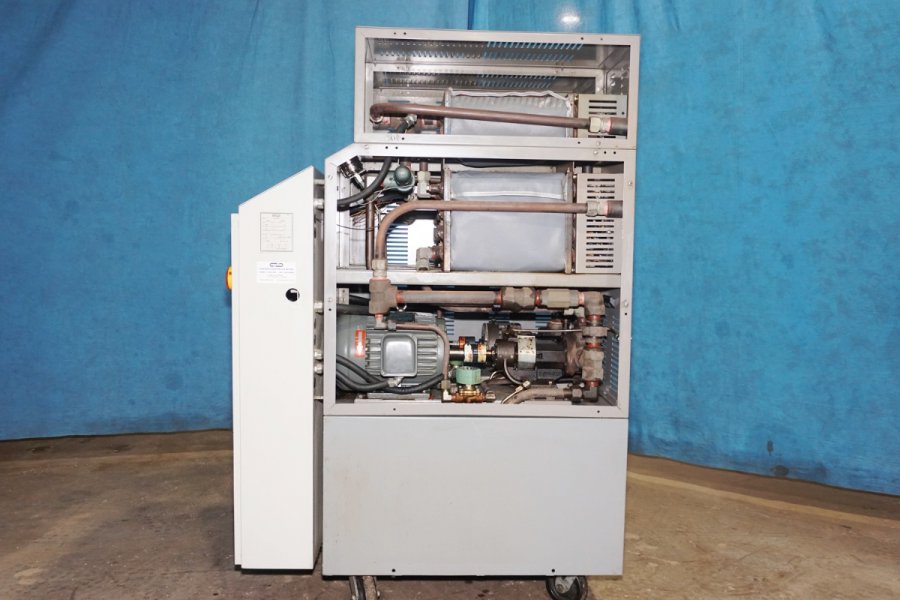

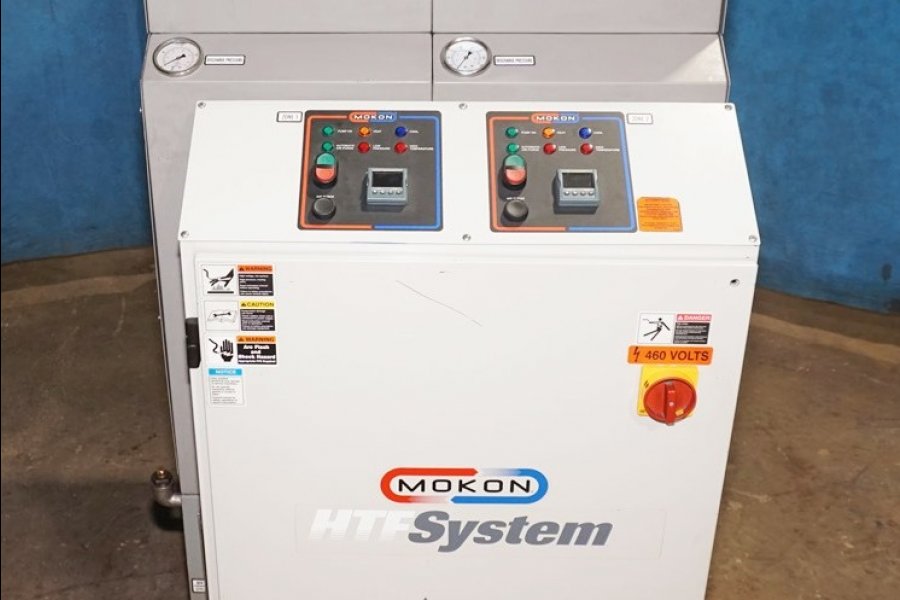

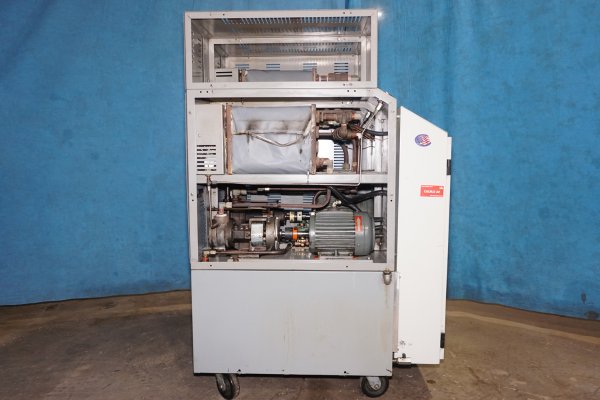

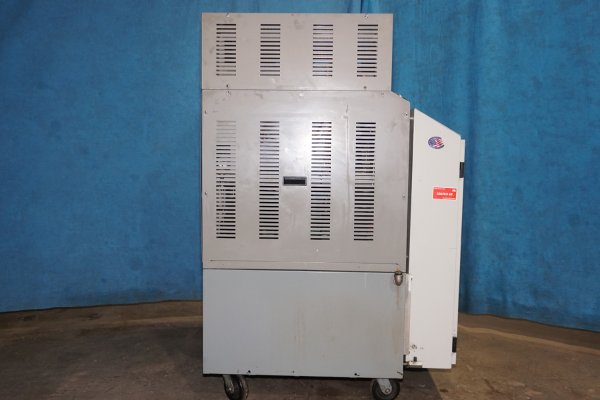

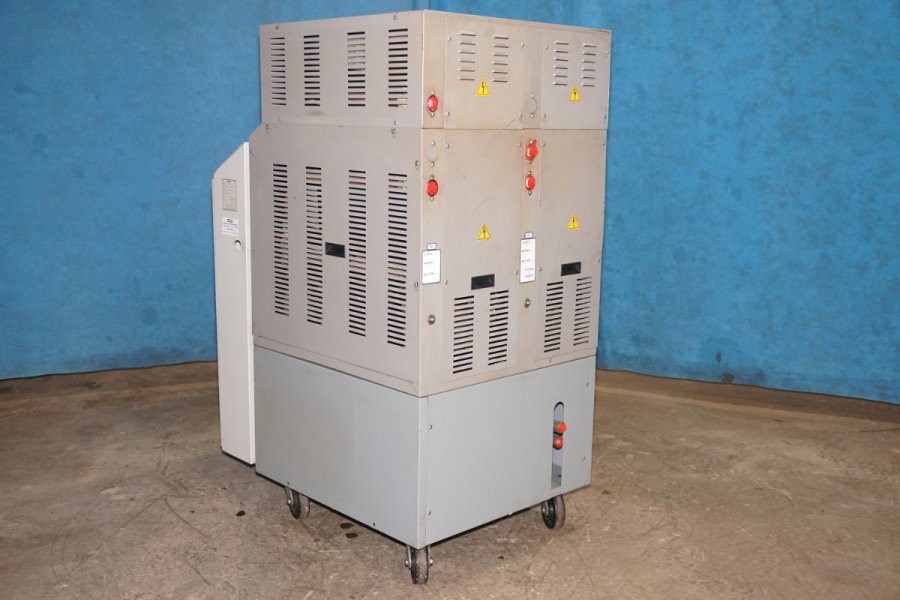

Used Mokon Model: 320121 30 kW (18 kW zone 1 12 kw zone 2) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
Status: Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Mokon
Model: 320121
Size: 30 kW (18 kW zone 1 12 kw zone 2)
Inventory Number: DCM-5664
Used Mokon Model: 320121 30 kW (18 kW zone 1 12 kw zone 2) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit.
View Available Hot Oil Units
Features & Accessories:
- Call us on our Hot Oil Temperature Control Unit Hot Line 7:00 AM to 7:00 PM at 1-847-360-9170 Extension 2
- Mokon Series Dependability

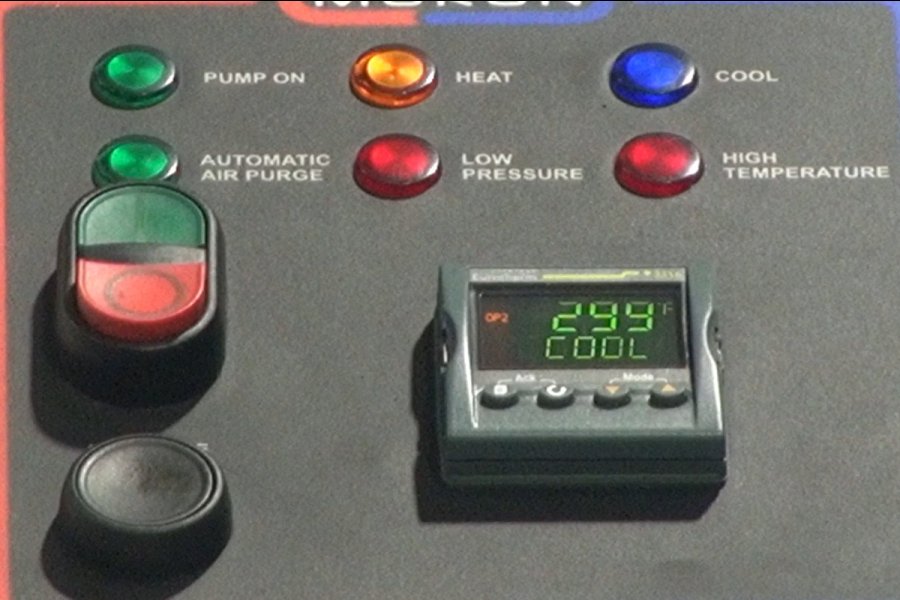

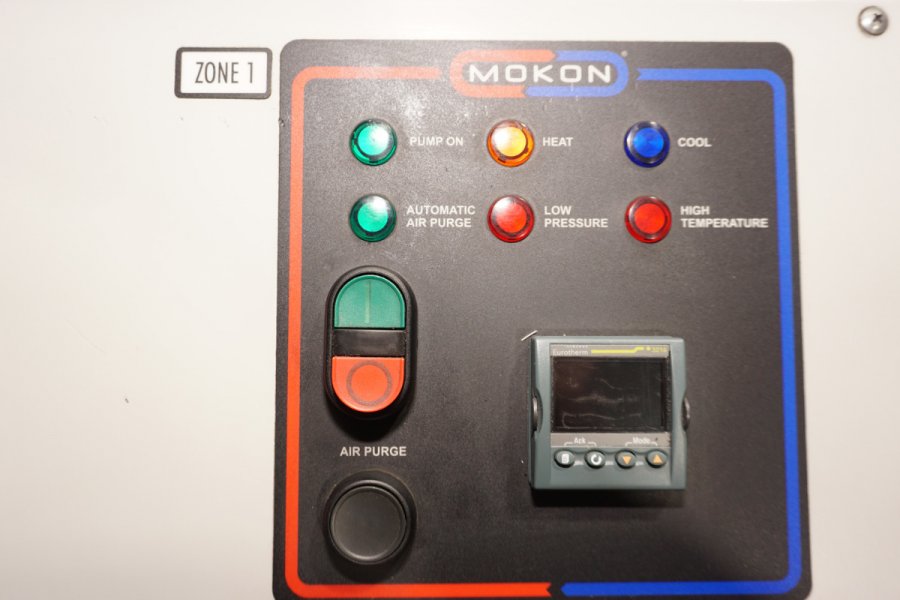

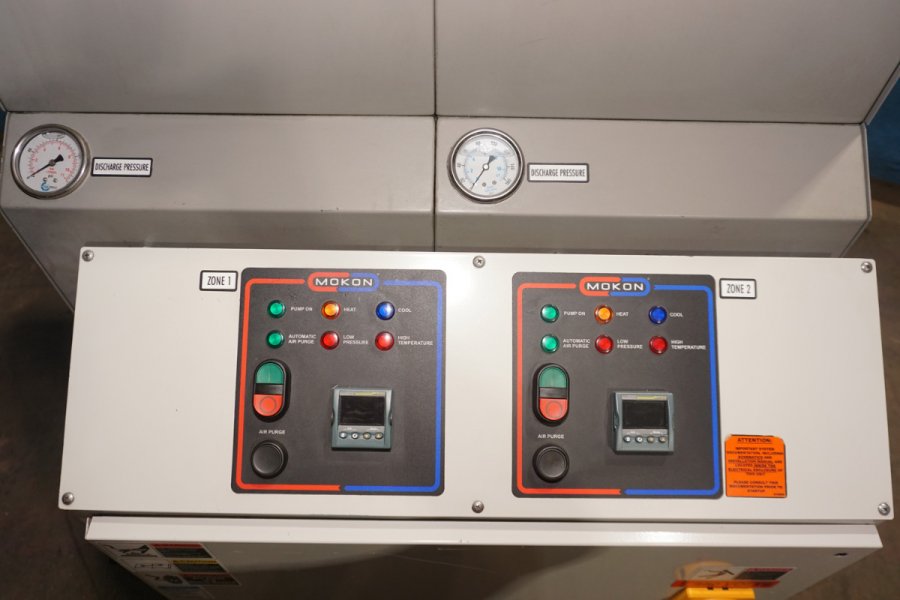

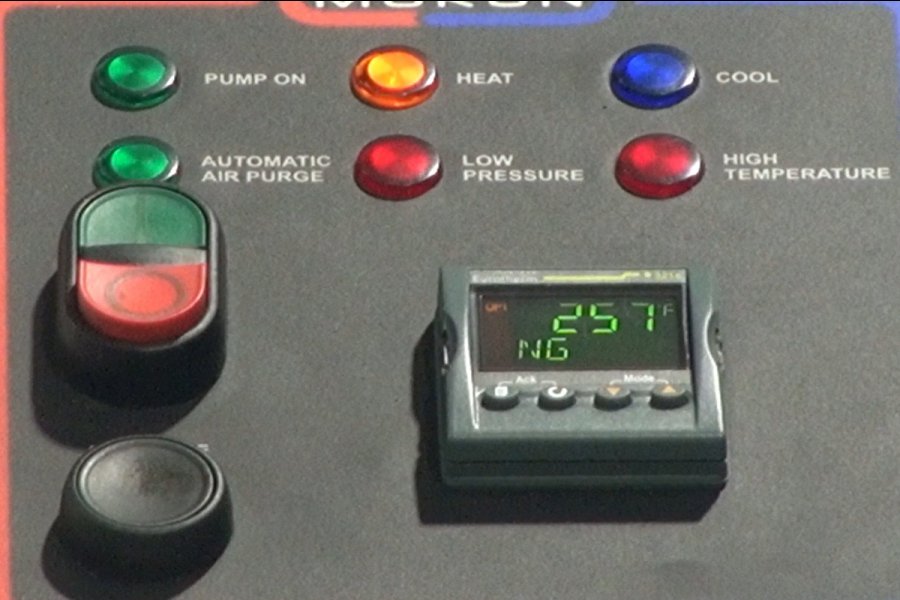

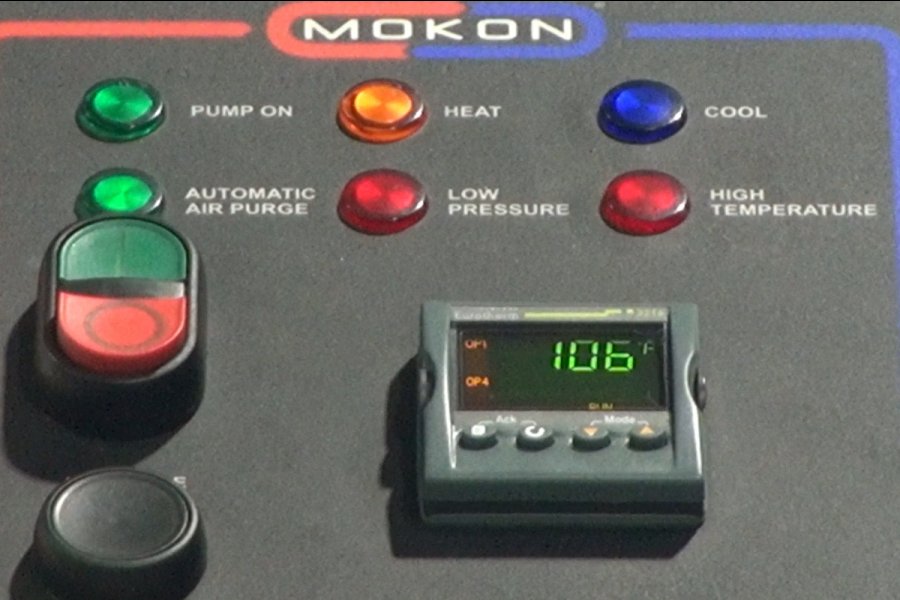

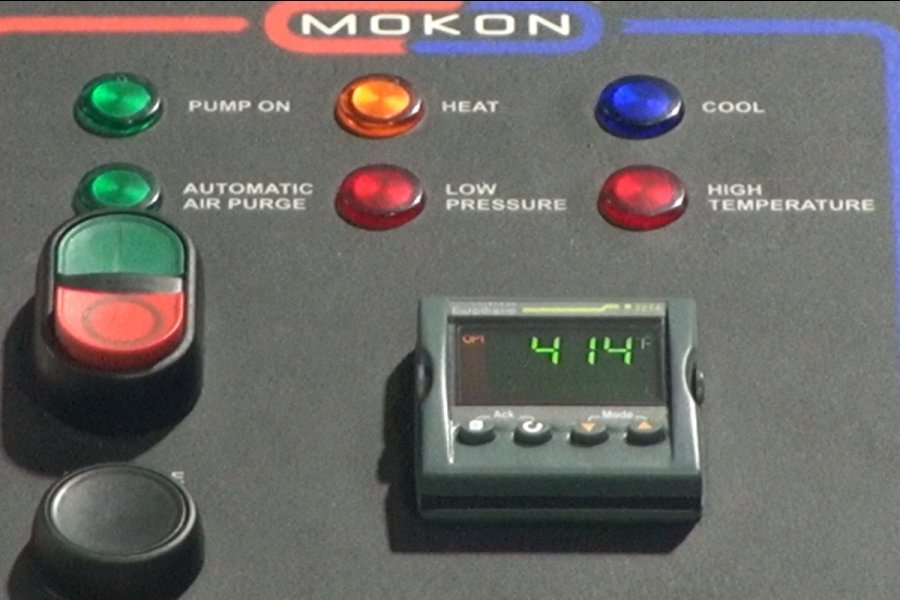

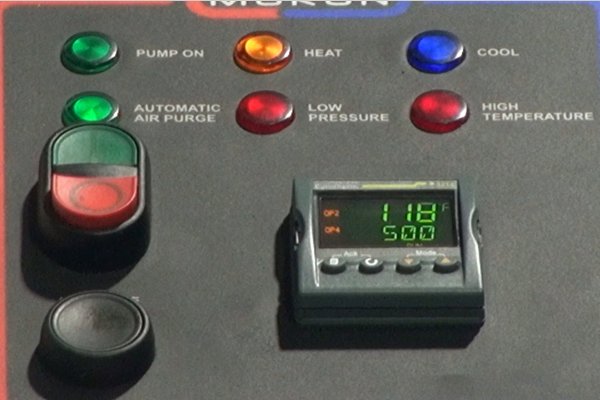

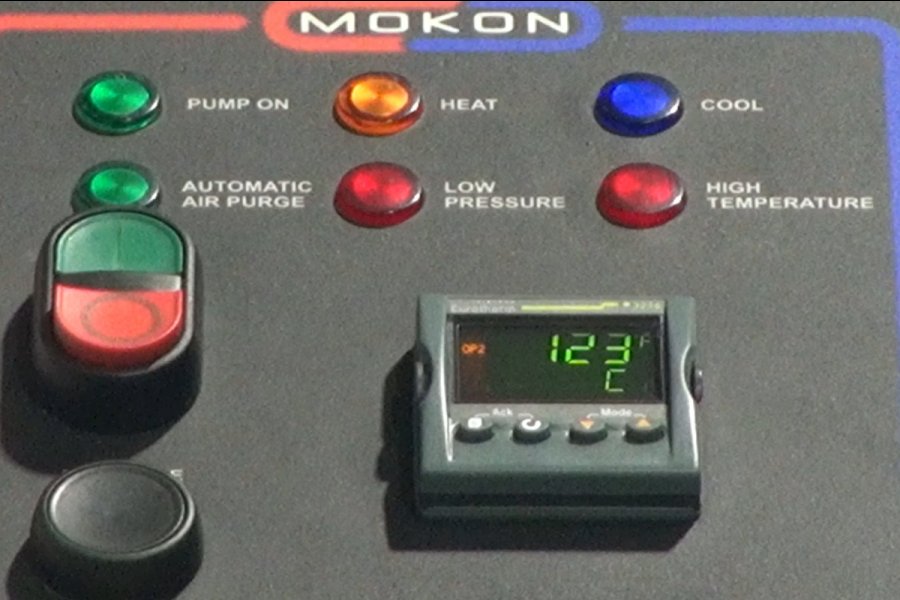

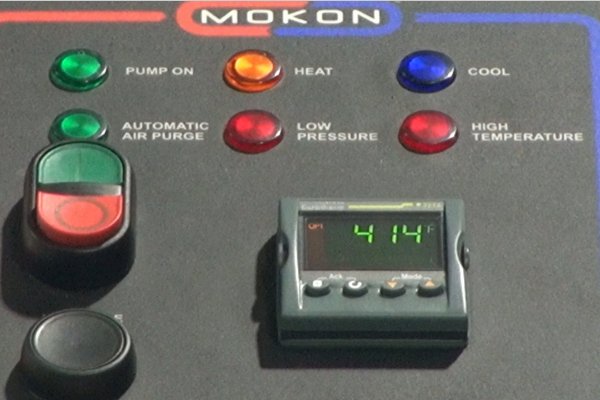

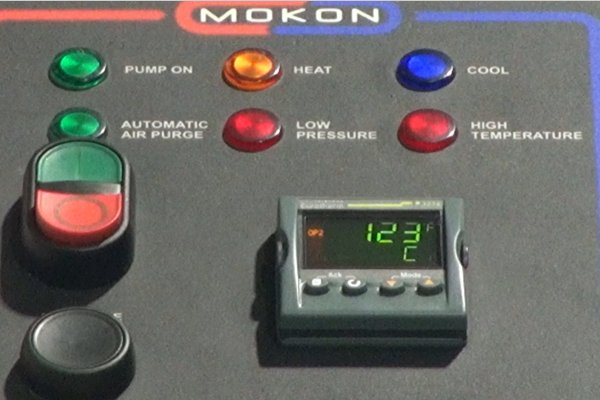

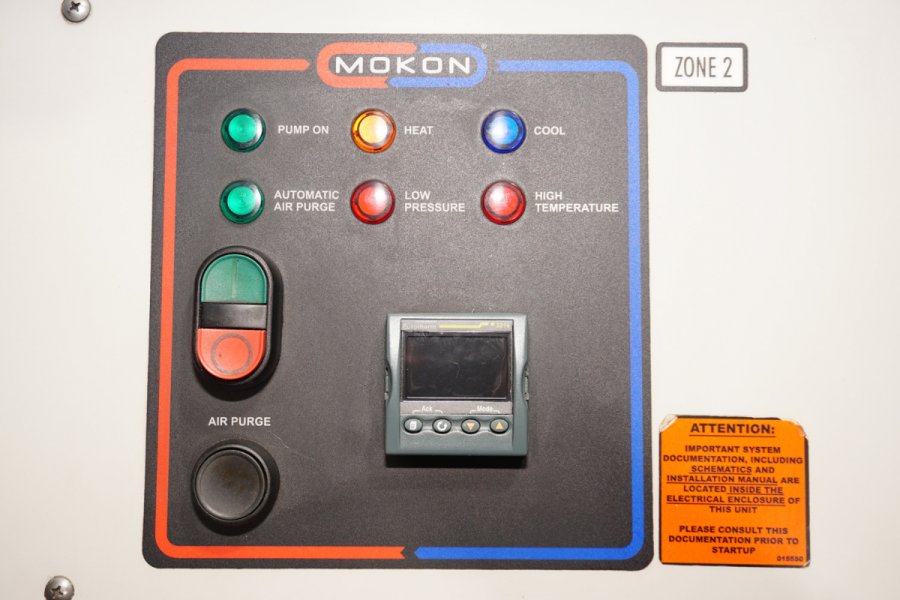

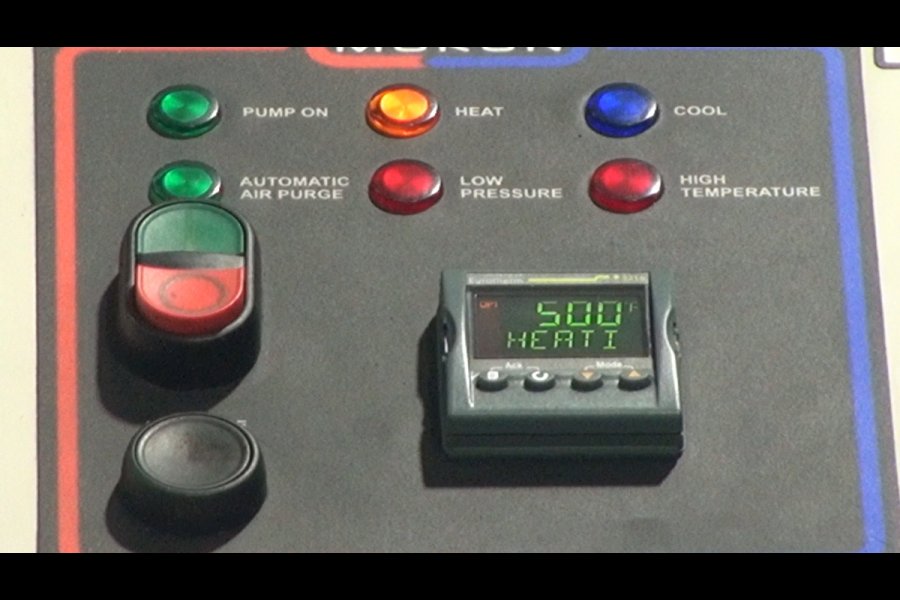

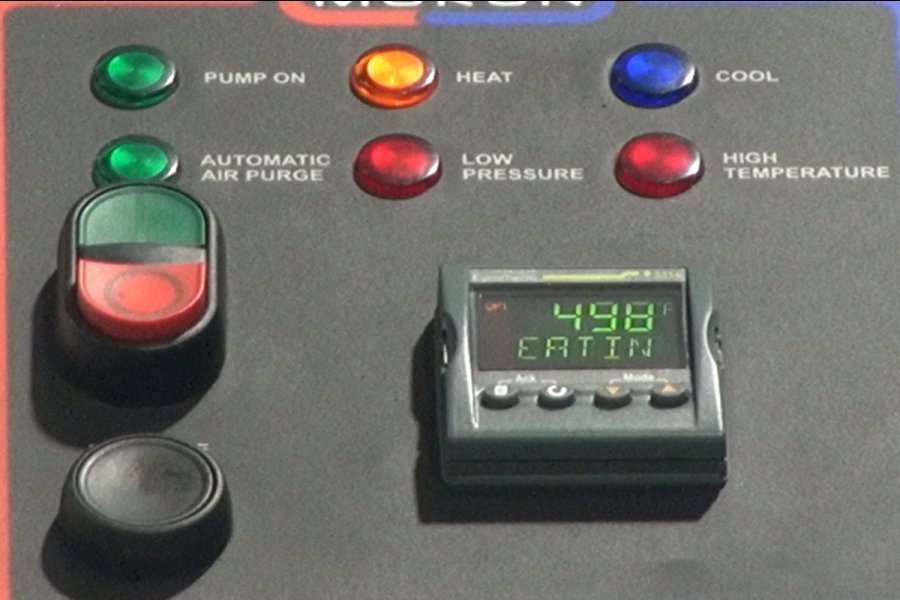

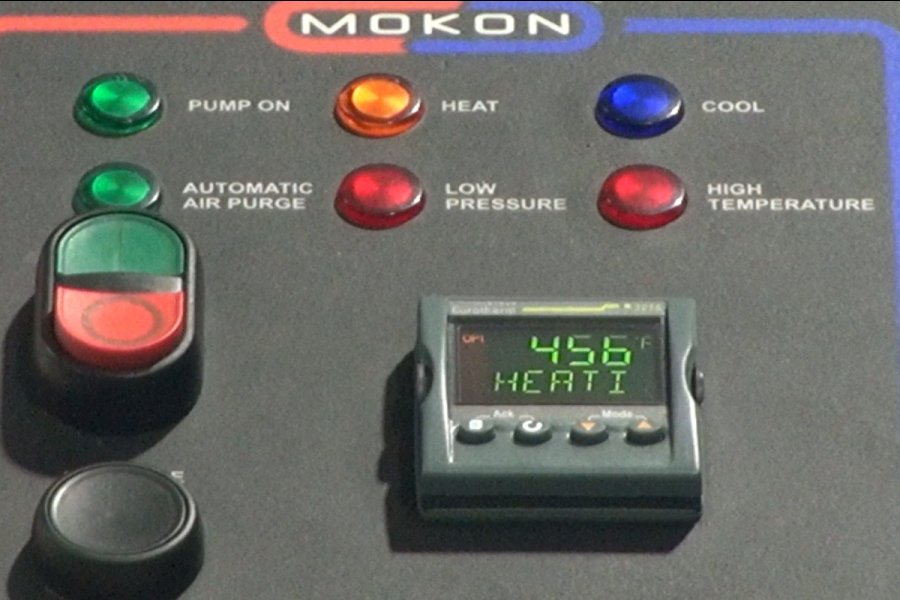

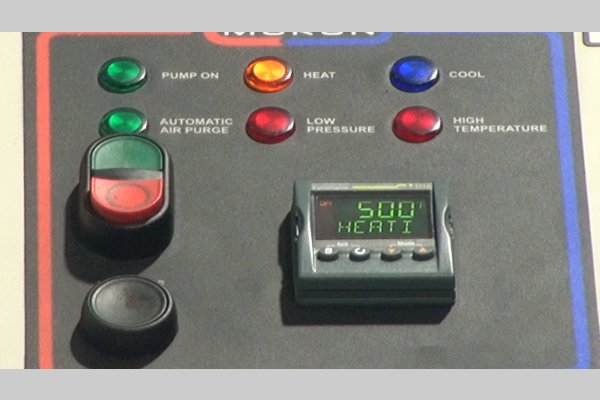

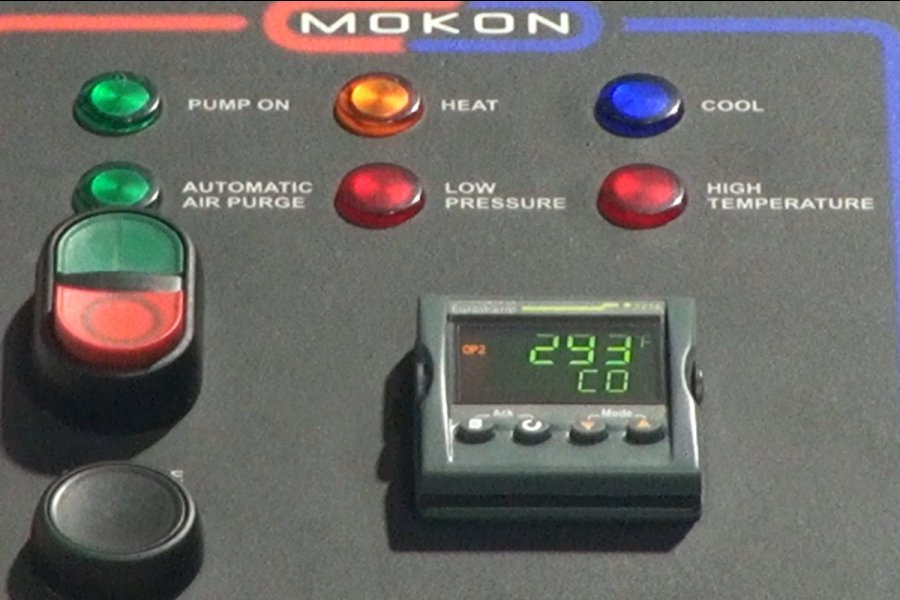

- Eurotherm 3216 Microprocessor Controller

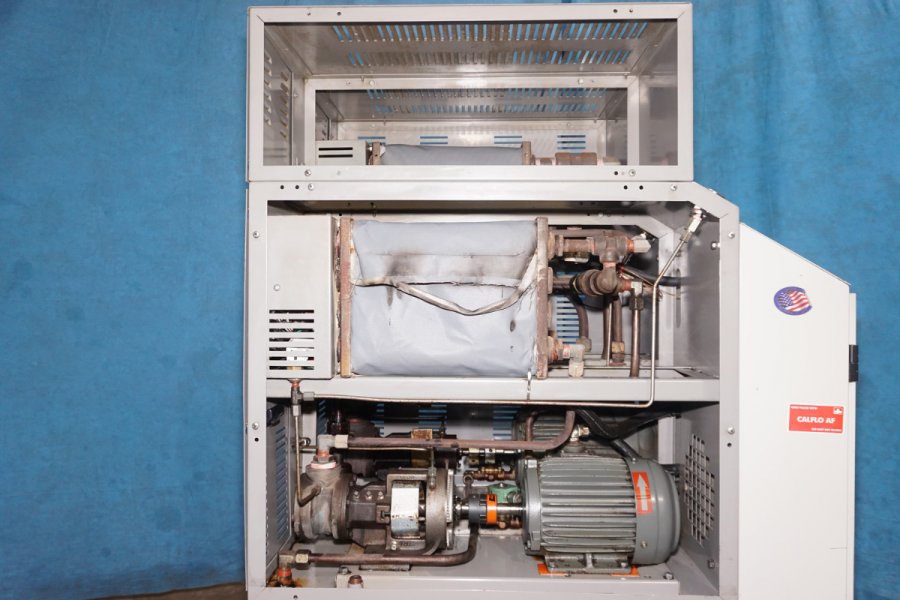

- Built-in pump pressure relief valve

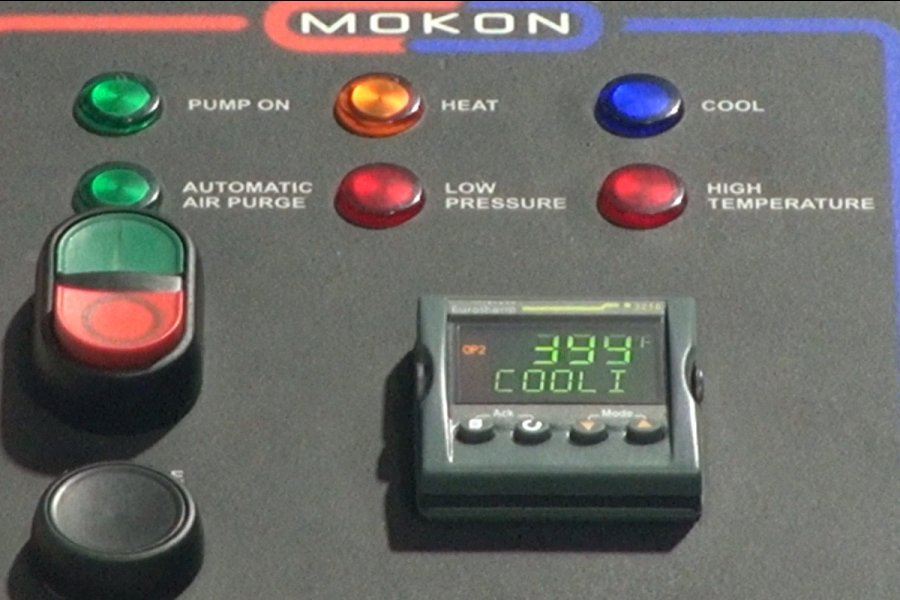

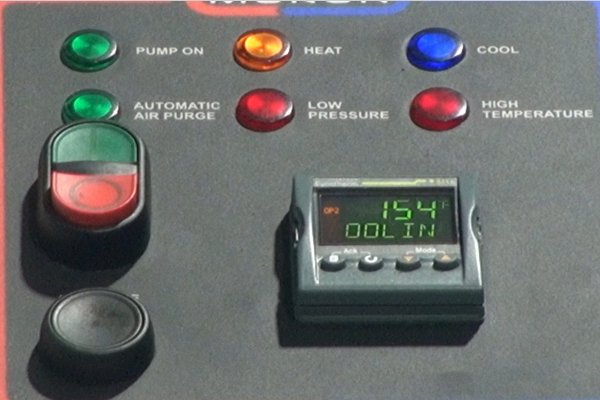

- Equipped with Water Cooling Circuit
- Unit on casters for easy movement

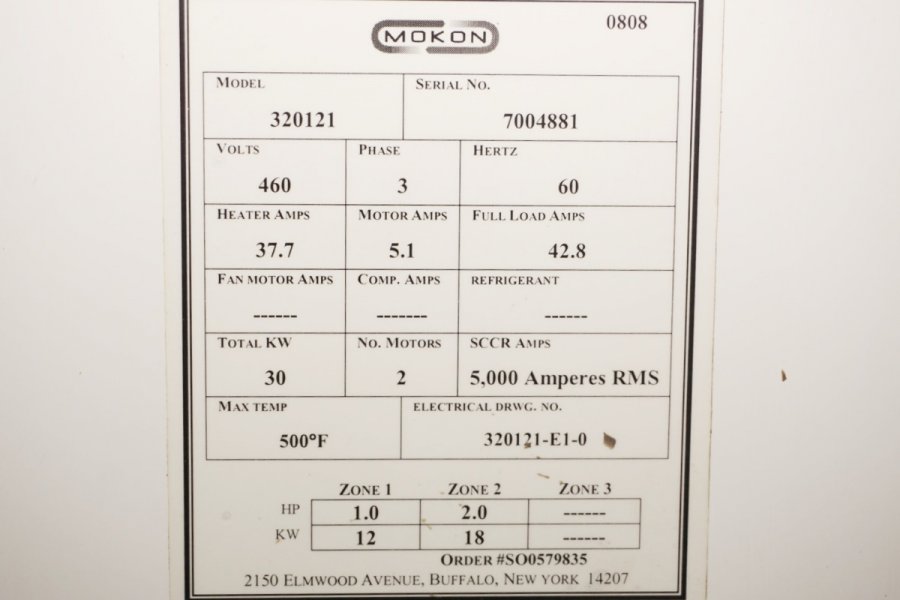

Item Specifications for DCM-5664
| Specifications | |
|---|---|
| TOTAL KW: |
30 KW
|
| Main Heater Power Zone 1: |
12 kW
|
| Main Heater Power Zone 2: |
18 KW
|
| Pump Motor Size Zone 1: |
1 HP @1,160 RPM
|
| Pump Motor Size Zone 2: |
2 HP @1,175 RPM
|
| Flow Rate Zone 1: |
10 gallons per minute
|
| Flow Rate Zone 2: |
20 gallons per minute
|
| Connection size/type Zone 1 & 2: |
3/4 & 1 inch NPT
|

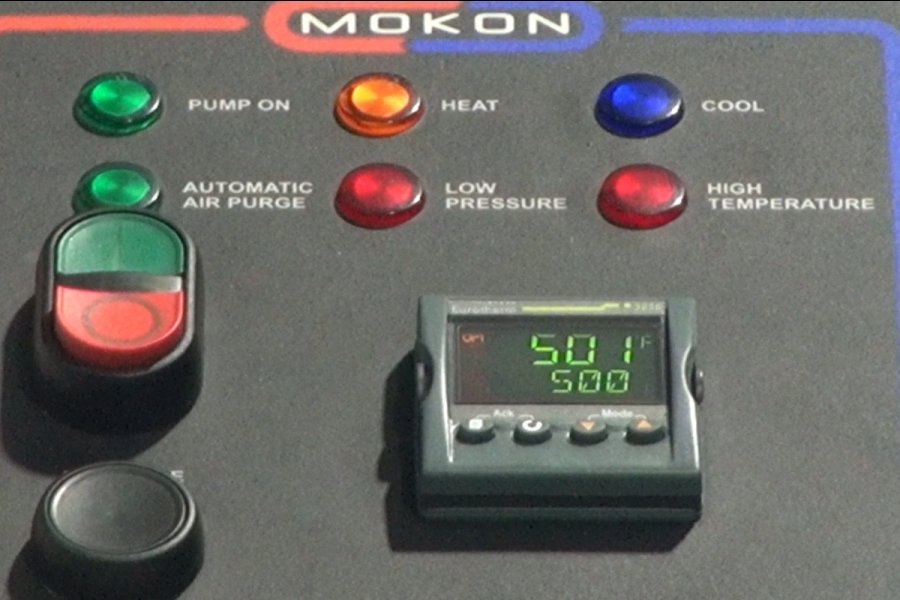

| Maximum Operating Temperature: |
500 degrees F
|
| Full Load Amps @ 460/3/60: |
42.8 amp
|
| Overall Size (L x W x H): |
41 x 30 x 62 inches
|
| Shipping Weight: |
1200 pounds
|
Document(s) For This Machine
Description
Used, Mokon Model 320121 30 kW (18 kW zone 1 12 kw zone 2) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Mokon Series Dependability, Eurotherm 3216 Microprocessor Controller, Built-in pump pressure relief valve, Equipped with Water Cooling Circuit, Unit on casters for easy movement Eurotherm 3216 controls, second Hand, DCM-5664
