Used Buhler Model: Classic 180 D 1800 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine


Print PDF
Play Video

Status: Sold - View Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: Buhler

Model: Classic 180 D

Size: 1800 Metric Ton

Inventory Number: DCM-3104

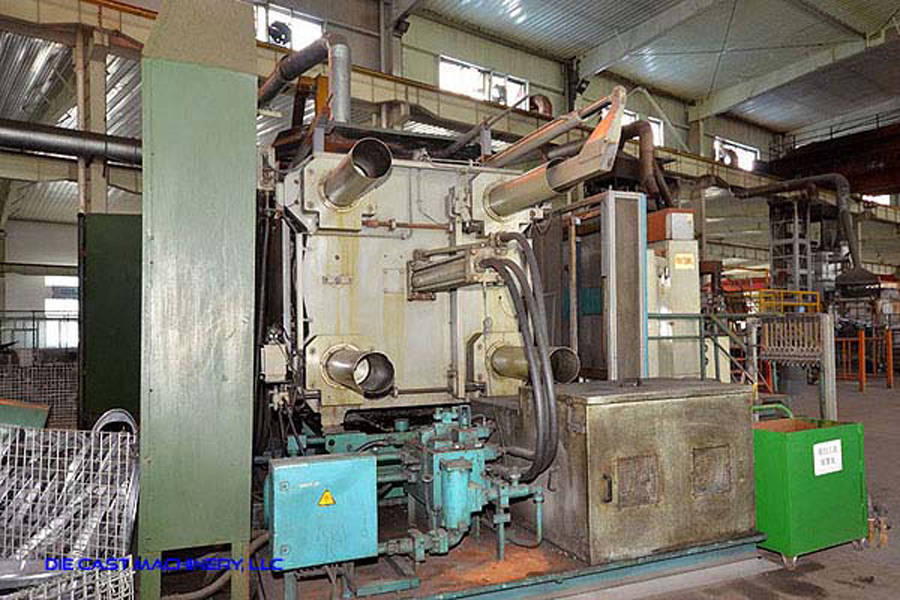

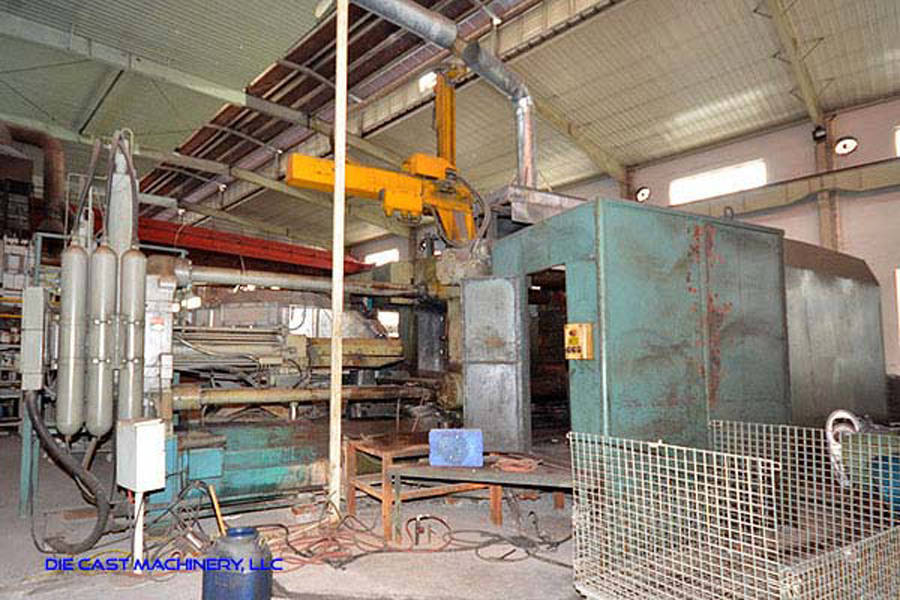

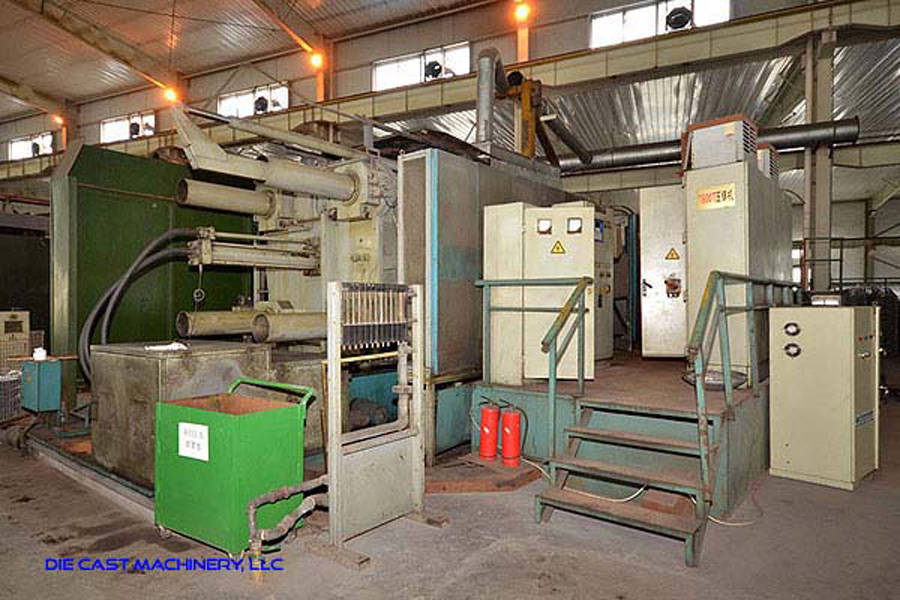

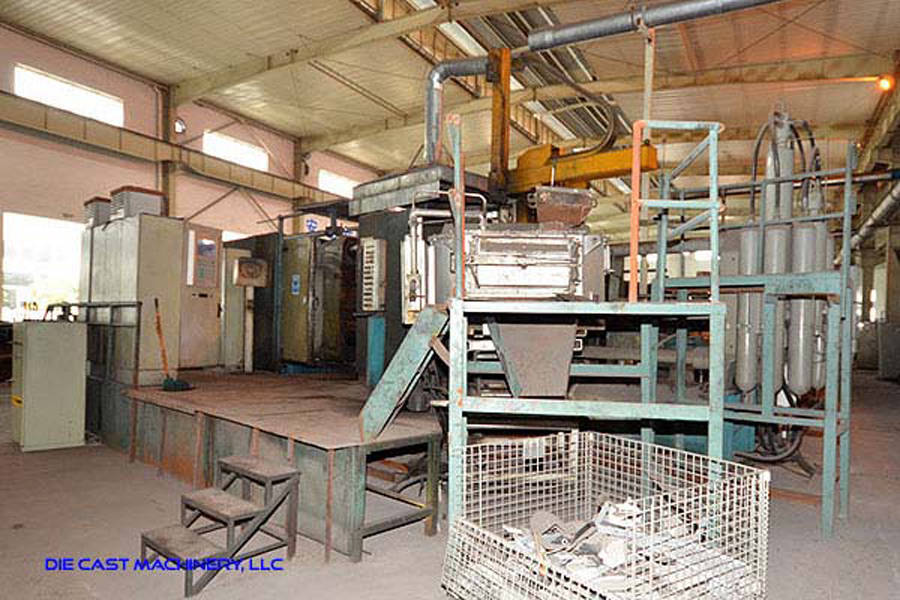

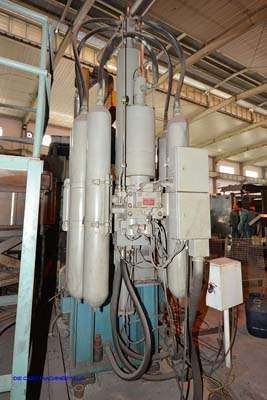

Used Buhler Model: Classic 180 D 1800 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine.

Features & Accessories:

  • Less than 6,000 hours of total run time!
  • Automatic Tie Bar Pulling - Top Operator Side Tie Bar

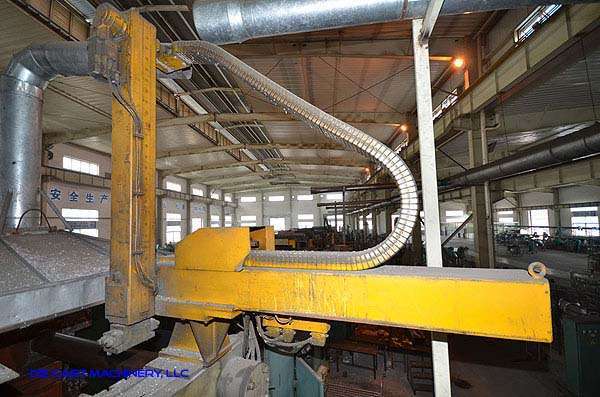

  • Buhler PickMat Automatic Parts Extractor

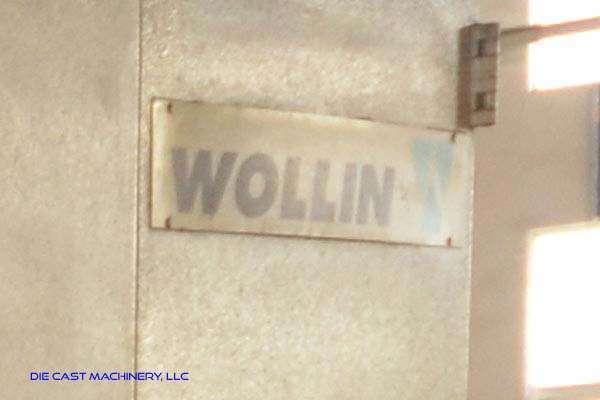

  • Wollin Model PSM 336 2 Axis High Speed Linear Die Spray System

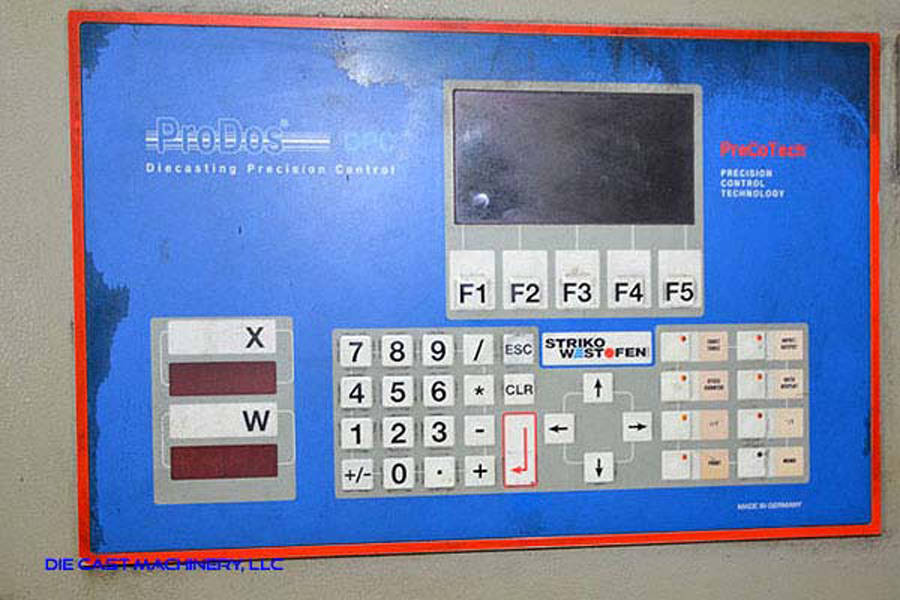

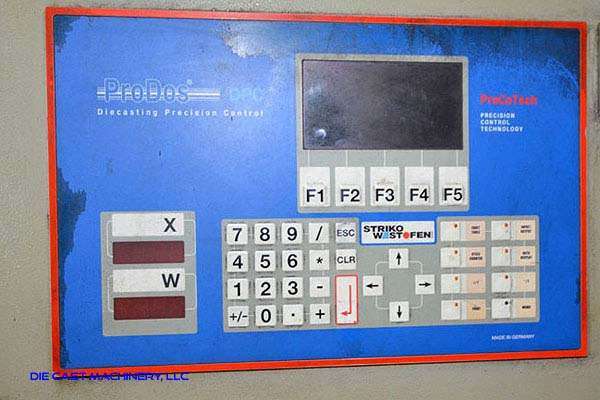

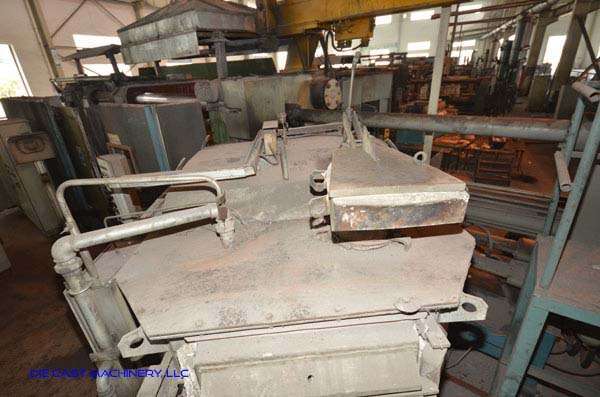

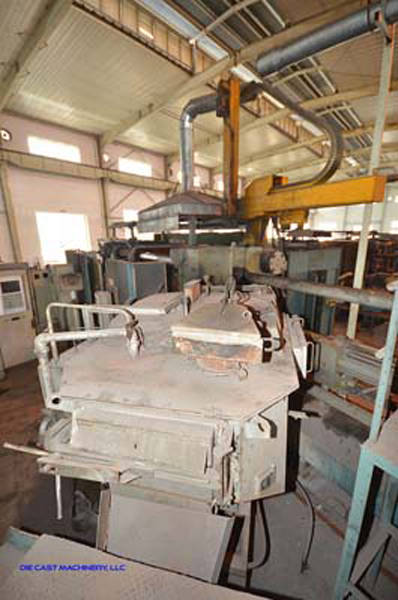

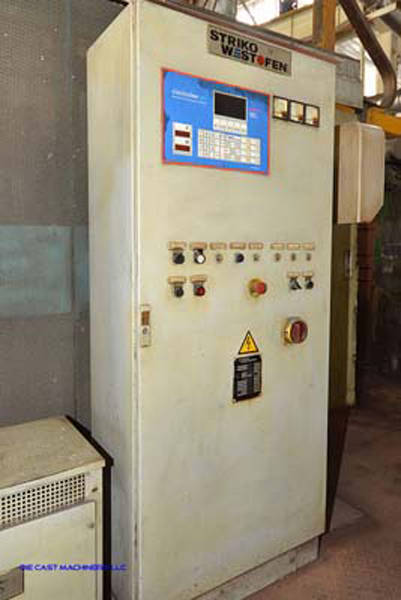

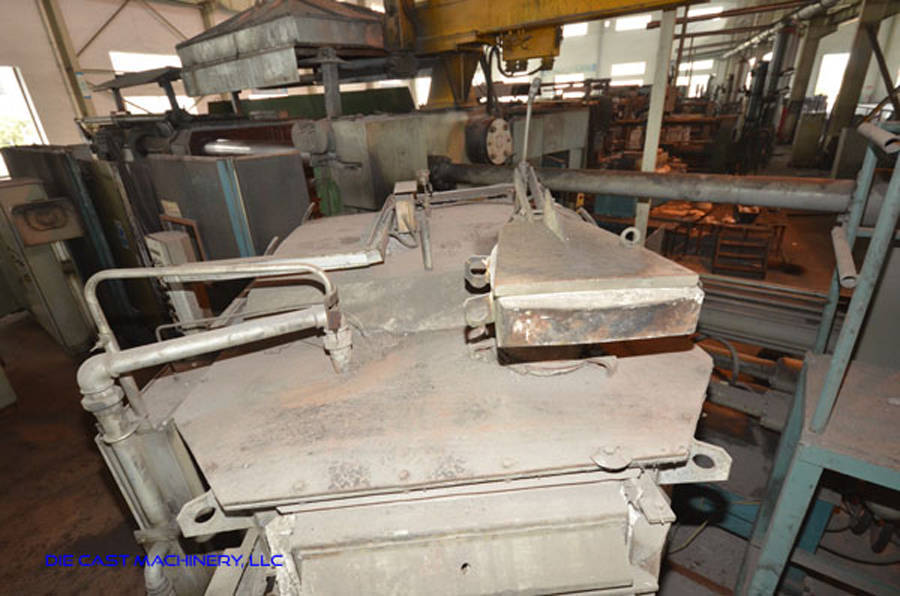

  • Striko Westoffen Model W 120 SL ProDos Electric Heated Aluminum Dosing Furnace

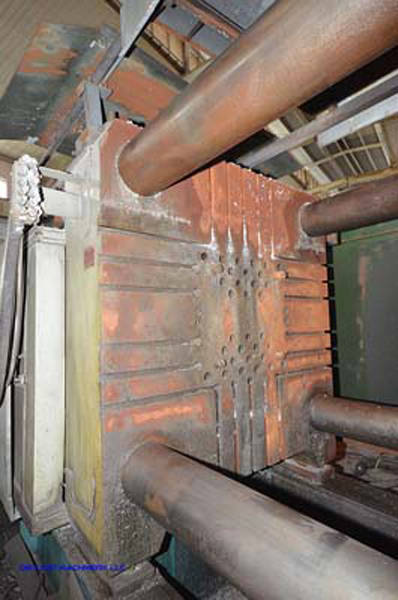

  • Three Auxiliary Hydraulic Core Circuits - Two on Moving Platen - One on Fixed Platen
  • Automatic Lubrication System - Pressurized Oil Type

Item Specifications for DCM-3104

Specifications
Clamping Force:
2023 tons
Die Thickness (Minimum - Maximum):
19.68 to 63 inches

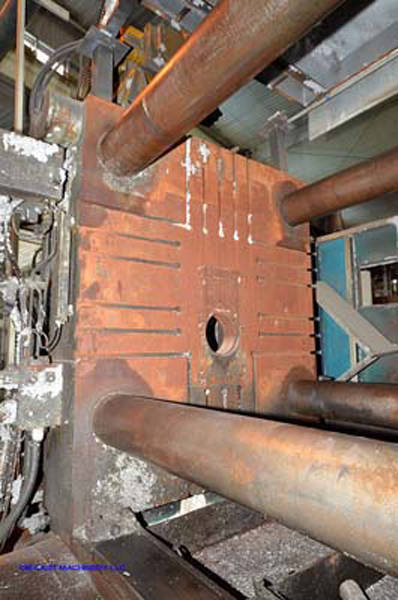

Platen Dimensions (horizontal x vertical):
77.16 x 77.95 inches
Clearance between tie bars:
49.2 inches
Moving Platen Stroke (maximum):
49.2 inches
Injection Plunger Stroke (maximum):
45.27 inches
Injection Positions:
0 to -16.53 inches
Injection Force / Intensified:
63 / 170 tons
Maximum Ejector Force / Stroke:
56 tons / 9.44 inches

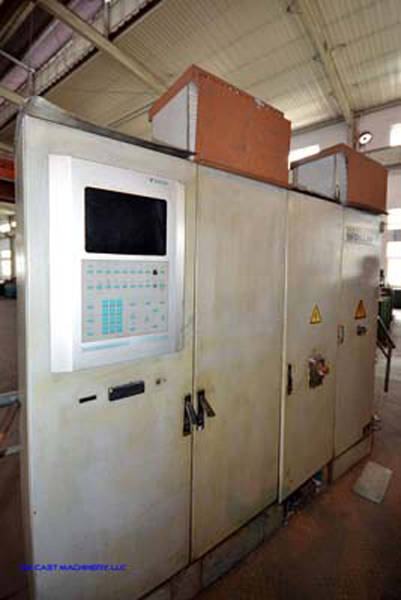

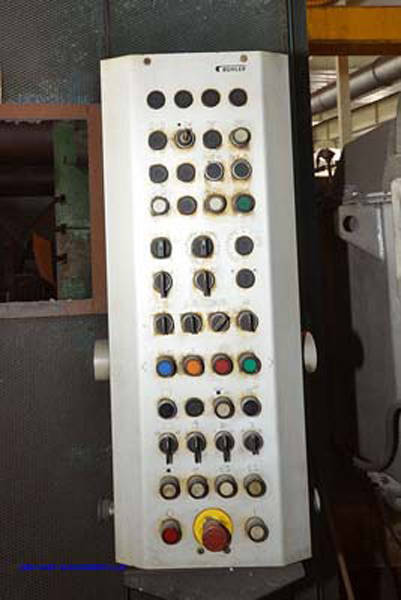

Machine Controls:

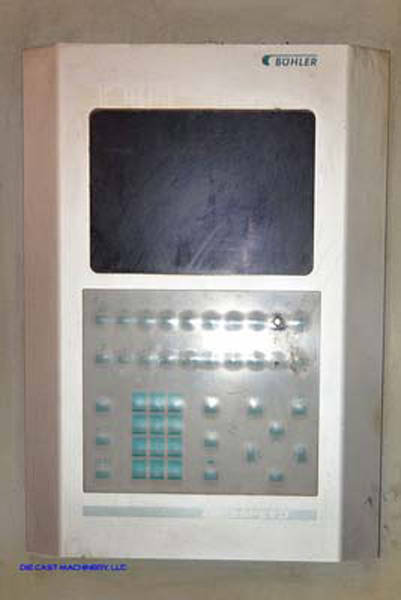

Buhler DataSpeed
Main Motor:
120 & 60 HP
Machine Weight
214,940 pounds

Document(s) For This Machine

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.

Description

Used, Buhler Model Classic 180 D 1800 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Automatic Tie Bar Pulling - Top Operator Side Tie Bar, Buhler PickMat Automatic Parts Extractor, Wollin Model PSM 336 2 Axis High Speed Linear Die Spray System, Striko Westoffen Model W 120 SL ProDos Electric Heated Aluminum Dosing Furnace, Three Auxiliary Hydraulic Core Circuits - Two on Moving Platen - One on Fixed Platen, Automatic Lubrication System - Pressurized Oil Type, Buhler DataSpeed controls, second Hand, DCM-3104
