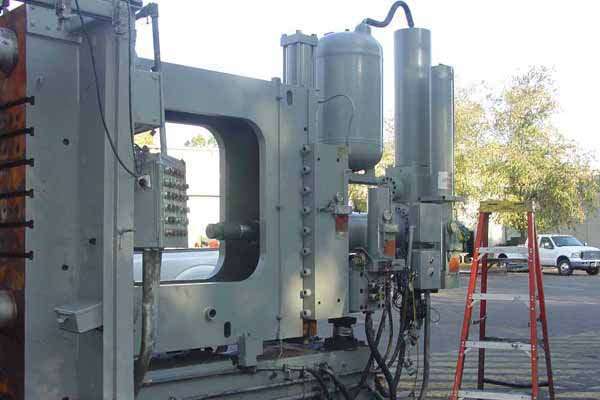

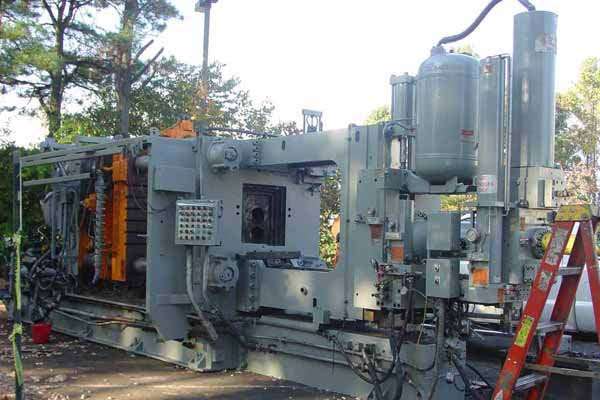

Cold Chamber Die Casting Machines Model 1043 CCA One (1) Used Prince 1000 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine Inventory #: 3567 Condition: Used Available Prince - 1043 CCA 1000 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Prince Prolink via Allen Bradley SLC 5/04 Controls used 1
Die Cast Machinery, LLC Inventory number: 3567
We offer for sale, subject to prior sale and the terms listed below:

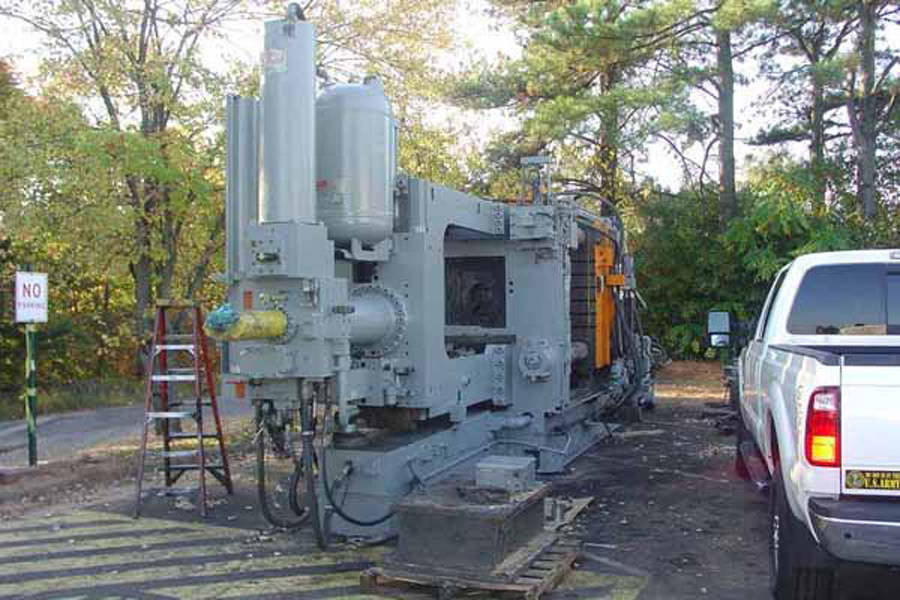

One (1) Used Prince 1000 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Model 1043 CCA

Status: Available
Specifications: Metric / U.S. Standard
Rated Tonnage 907 tons / 1000 tons
Tie Bar Diameter 215.9 mm / 8.5 inches
Clearance Between Tie bars 1104.9 x 1104.9 mm / 43.5 x 43.5 inches
Front Platen Size (T x W x H) 419 x 1727 x 1981 mm / 16.50 x 68 x 78 inches
Moving Platen Size (T x W x H) 381 x 1727.2 x 1727.2 mm / 15 x 68 x 68 inches
Die Thickness (min. - max.) 508 mm - 1117.6 mm / 20 - 44 inches
Die Stroke 686 mm / 27 inches
Shot Positions Center and 228.6 mm below / Center and 9 inches below
Shot Cylinder Bore & Stroke (adjustable): 203 mm x 914 - 762 mm / 8 inches x 36 - 30 inches
Ejection Stroke/Force 101.6 mm / 19.5 tons / 4 inches / 21.5 tons
Machine Size (L x W x H) 10.82 x 2.59 x 3.81 m / 35.6 x 8.6 x 12.6 feet
Machine Weight 63,636 kg / 140,000 pounds
Features & Accessories:
Upgraded to Prince Binary II with Low Impact and 3,000 PSI Intensifier
Upgraded to Prince Pro-Link Management System
Top Helper Side Automatic Tie Bar Pulling System
Allen Bradley SLC 5/04 Controls
Twin Cylinder Hydraulic Bumper Plate Ejection System
100 HP (74.6 kw) main pump motor with Vickers 5/50 GPM and 21/60 GPM pumps
Terms of Sale:
Price: request quotation
Shipping Terms: Ex-works

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America



Description: Used, Prince Model 1043 CCA 1000 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For Sale, Features include: Upgraded to Prince Binary II with Low Impact and 3,000 PSI Intensifier, Upgraded to Prince Pro-Link Management System, Top Helper Side Automatic Tie Bar Pulling System, Allen Bradley SLC 5/04 Controls, Twin Cylinder Hydraulic Bumper Plate Ejection System, 100 HP (74.6 kw) main pump motor with Vickers 5/50 GPM and 21/60 GPM pumps, Prince Prolink via Allen Bradley SLC 5/04 Controls, Second Hand, DCM-3567
