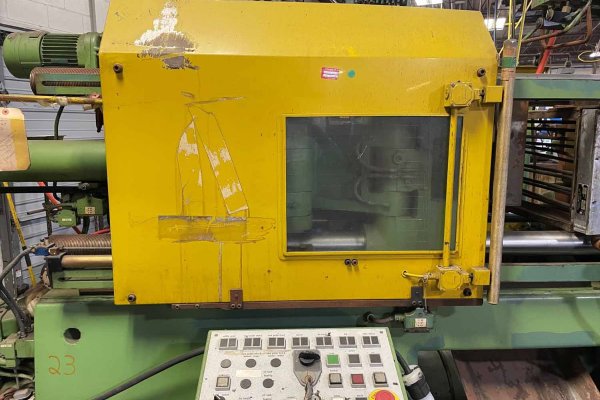

Used Frech Model: DAK 100-H 100 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
Status: Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Frech
Model: DAK 100-H
Size: 100 Metric Ton
Inventory Number: DCM-5264
Used Frech Model: DAK 100-H 100 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.
View Available Cold Chamber Die Casting Machines
Features & Accessories:

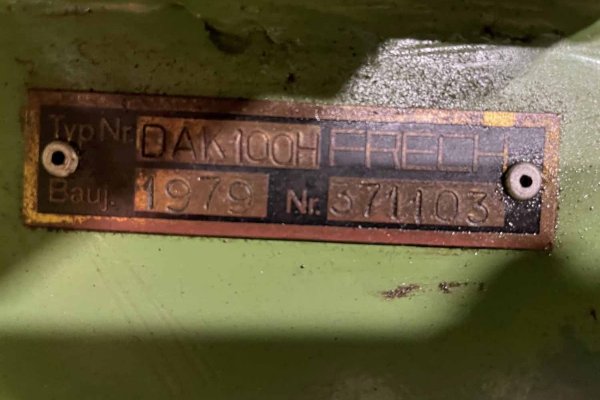

- New in 1979 - Government Storage Machine - Never installed!
- Electric Motorized Die Height Adjustment
- Hydraulic Ejection
- Auxiliary Hydraulic Side Core Circuits

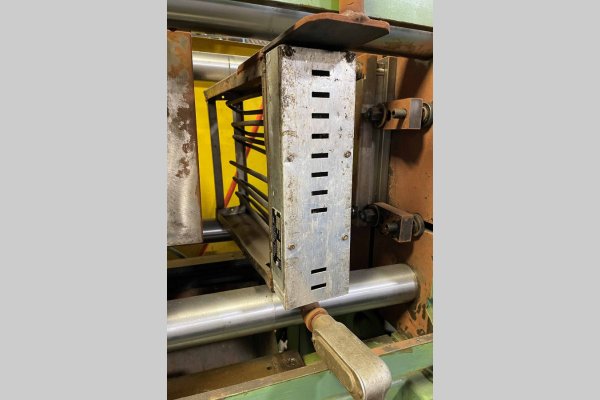

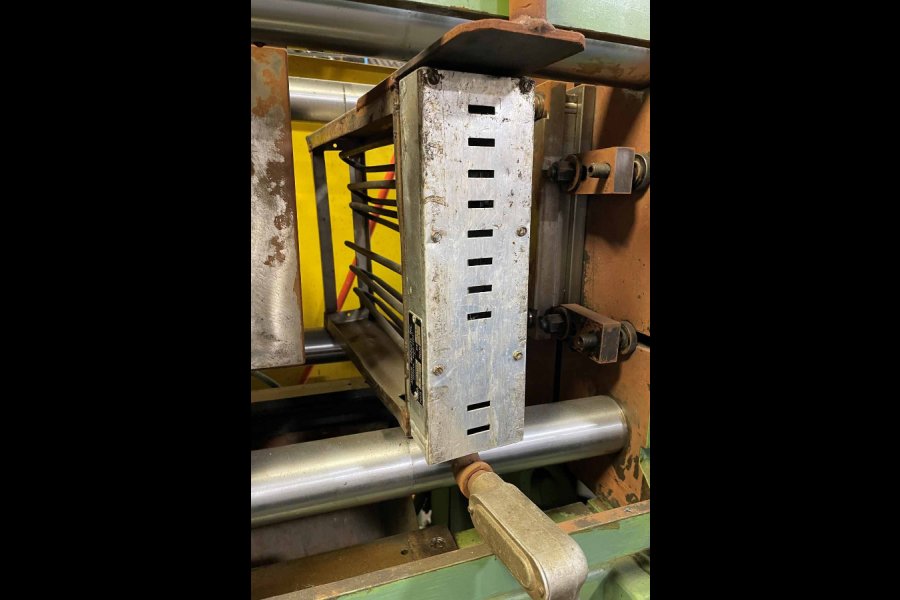

- Frech Die Sprayer
- Great Machine for Small Electric Motor Rotor Applications
Item Specifications for DCM-5264
| Specifications | |
|---|---|
| Locking Force: |
110 ton
|
| Tie Bar Diameter: |
2.95 inches
|
| Clearance Between Tie Bars: |
15.15 x 15.15 inches
|
| Die Thickness (minimum - maximum): |
7.87 - 19.68 inches
|
| Closing Stroke: |
12.20 inches
|
| Platen Size: |
23.62 x 23.62 inches
|
| Shot Positions: |
Center to -2.6 inches, -4.72 inches
|
| Casting Volume: |
13, 20, 28, 38 cubic inches
|
| Ejector Force: |
8.15 tons
|
| Ejector Stroke: |
3.5 inches
|
| Machine Size, Length, Width, Height: |
15.41 x 5.74 x 6.72 feet
|
| Machine Weight (approximate): |
13,227 pounds
|
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
| Sister Machine - Frech DAK-100 - never put into production | |
| Sister Machine - Frech DAK-100 - never put into production |
Document(s) For This Machine
Shipping Terms: F.O.B. Location
We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.
Description
Used, Frech Model DAK 100-H 100 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Electric Motorized Die Height Adjustment, Hydraulic Ejection, Auxiliary Hydraulic Side Core Circuits, Frech Die Sprayer, Great Machine for Small Electric Motor Rotor Applications Frech controls, second Hand, DCM-5264

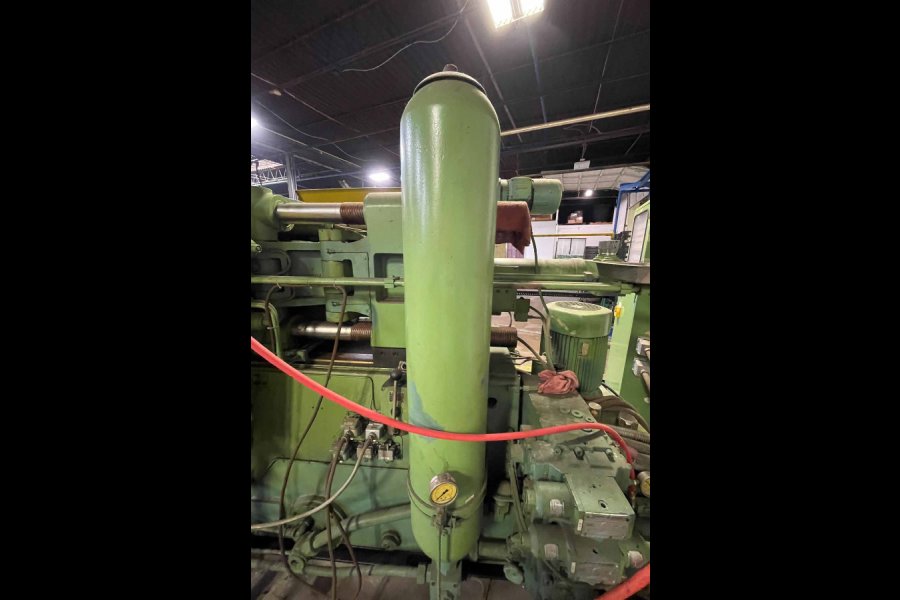

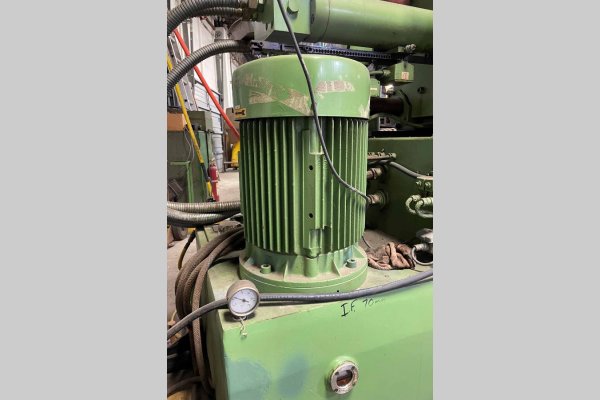

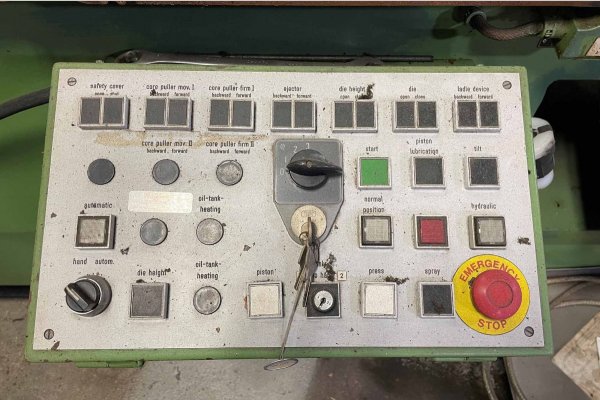

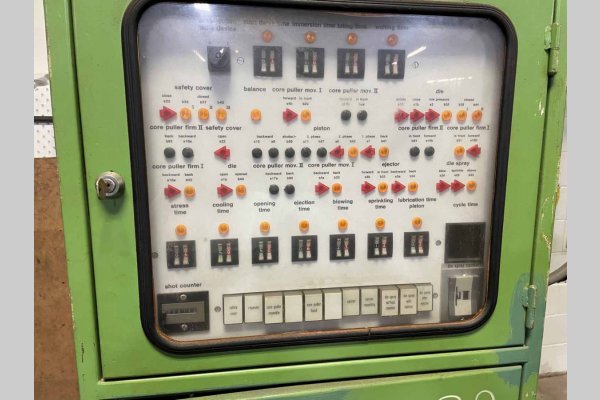

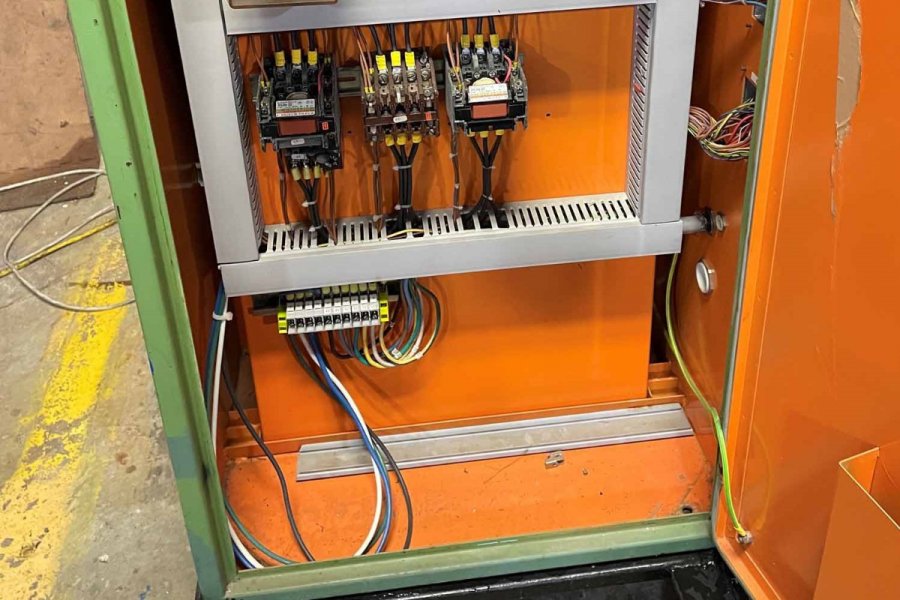

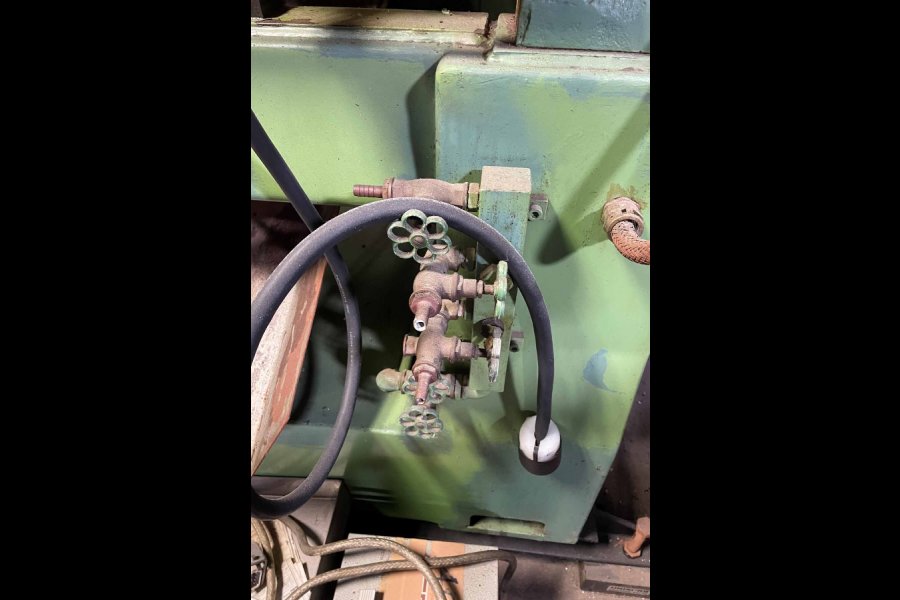

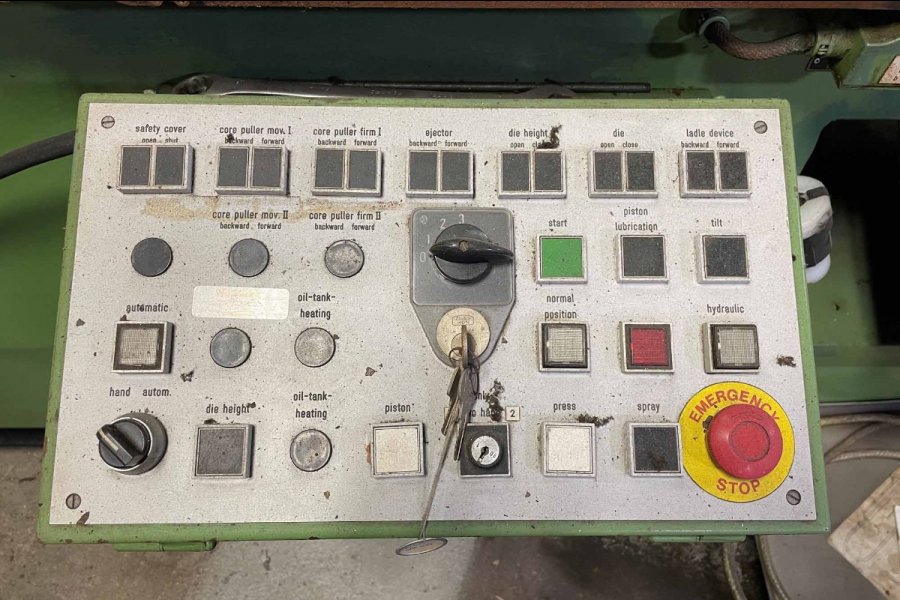

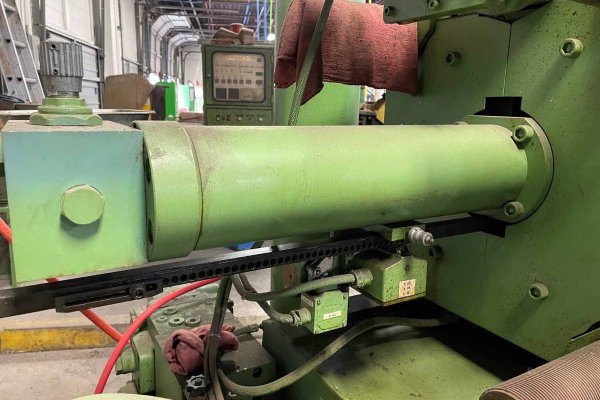

See jumbo large photos of this Frech DAK 100-H
