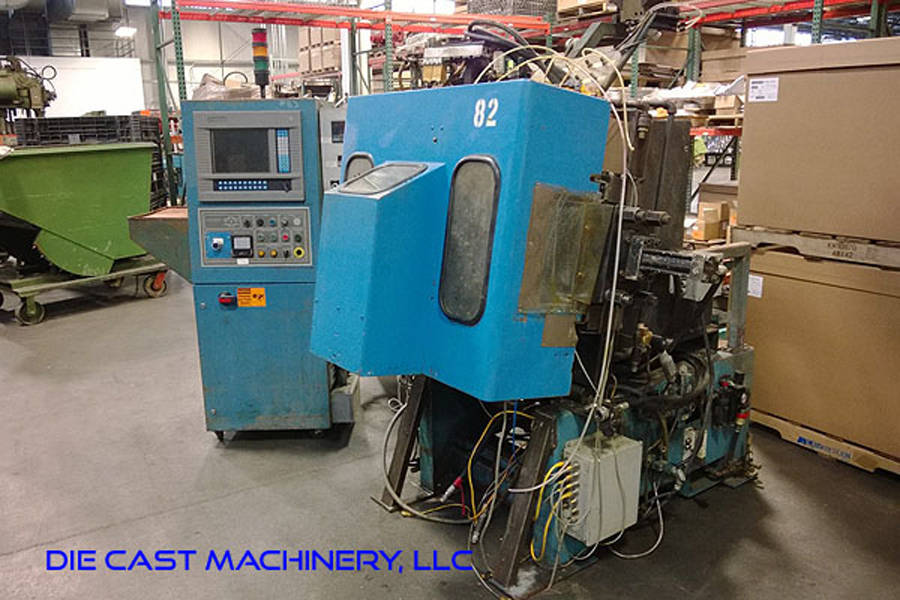

Used Techmire 66 NT Four Slide/Multi-slide Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine


Print PDF!

Status: Sold

We offer for sale, subject to prior sale and the terms listed below:

Used Techmire 66 NT Four Slide/Multi-slide Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine. Inventory item: DCM-3151.

Manufacturer: Techmire

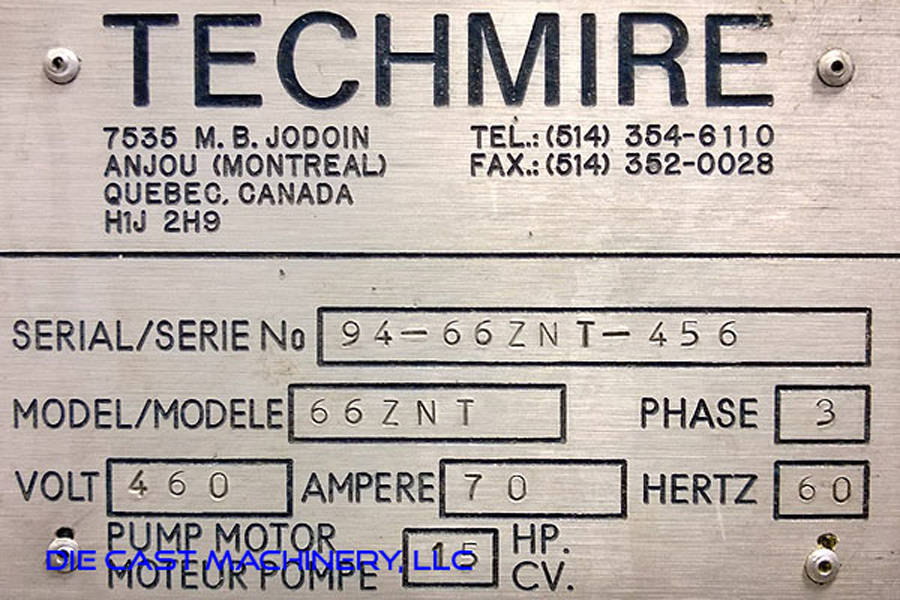

Model: 66ZNT (6x6)

Features & Accessories

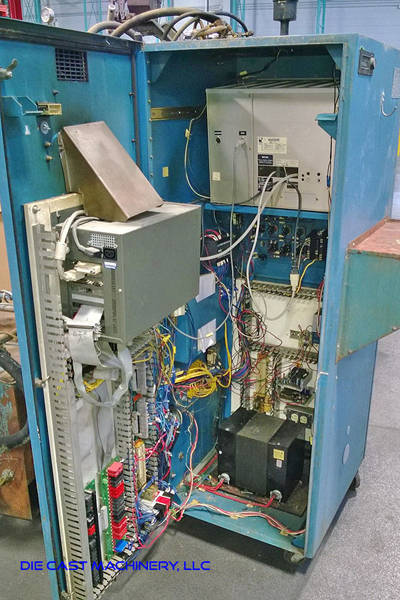

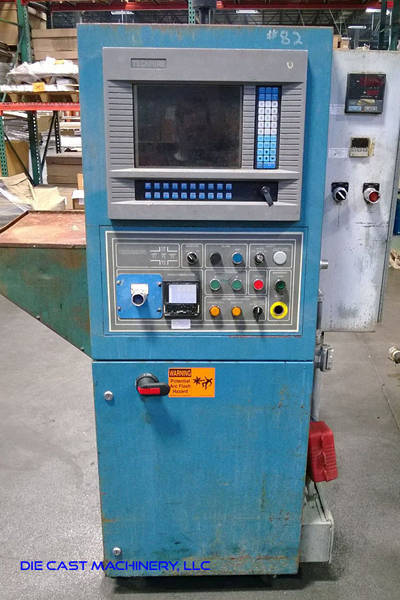

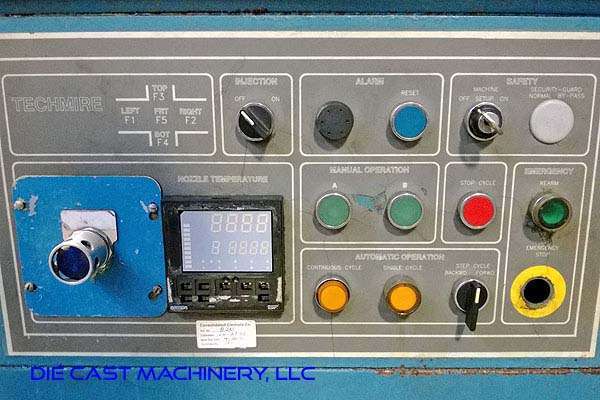

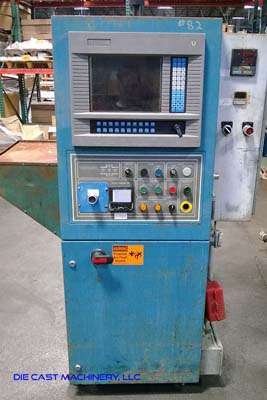

  • Techmire 66 NT Controls
  • Techmire Natural Gas Heated Melting Furnace (pot type) 400 pound - 180 KG Capacity
  • Two Slide Motions - Expandable up to six motions
  • 15 Horsepower - 11.19 KW Main Pump Motor
  • Trabon Pressurized Automatic Lubrication System
  • Techmire 66 NT (6x6) Die Casting Machines Manufactured in Montreal, Quebec Canada

Item Specifications for DCM-3151

Specifications
Standard Die Size
6.3 x 6.3 inches
Clamping Force
45 tons
Stroke of Each Die Member
3.15
Total Die Opening
6.3 inches
Maximum Ejector Stroke
1.75 inches
Injection Plunger Diameter
1.57 - 1.625 inches
Injection Cylinder Diameter
3.25 inches
Injection Plunger Stroke
2.38 inches
Dry Shot Speed at 900 psi
55 ips
Maximum Shot Weight (zinc)
11 oz
Metal Pressure (maximum theoretical)
4,685 psi
Dry Cycle Speed:
45 cpm

Shipping Terms: Ex-works

Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela, Peru, Europe, Asia, North America

Description

Used, Techmire Model 66ZNT (6x6) 66 NT Four Slide/Multi-slide Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For Sale, Features include: Techmire 66 NT Controls, Techmire Natural Gas Heated Melting Furnace (pot type) 400 pound - 180 KG Capacity, Two Slide Motions - Expandable up to six motions, 15 Horsepower - 11.19 KW Main Pump Motor, Trabon Pressurized Automatic Lubrication System, Techmire 66 NT (6x6) Die Casting Machines Manufactured in Montreal, Quebec Canada, Techmire NT Controls, Second Hand, DCM-3151

The following technical terms are to assist you with searches: Used | Second Hand | Techmire |66ZNT (6x6) | 66 NT | Four Slide/Multi-slide Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine | For Sale | Techmire 66 NT Controls | Techmire Natural Gas Heated Melting Furnace (pot type) 400 pound - 180 KG Capacity | Two Slide Motions - Expandable up to six motions | 15 Horsepower - 11.19 KW Main Pump Motor | Trabon Pressurized Automatic Lubrication System | Techmire 66 NT (6x6) Die Casting Machines Manufactured in Montreal, Quebec Canada | Techmire NT Controls | DCM-3151
