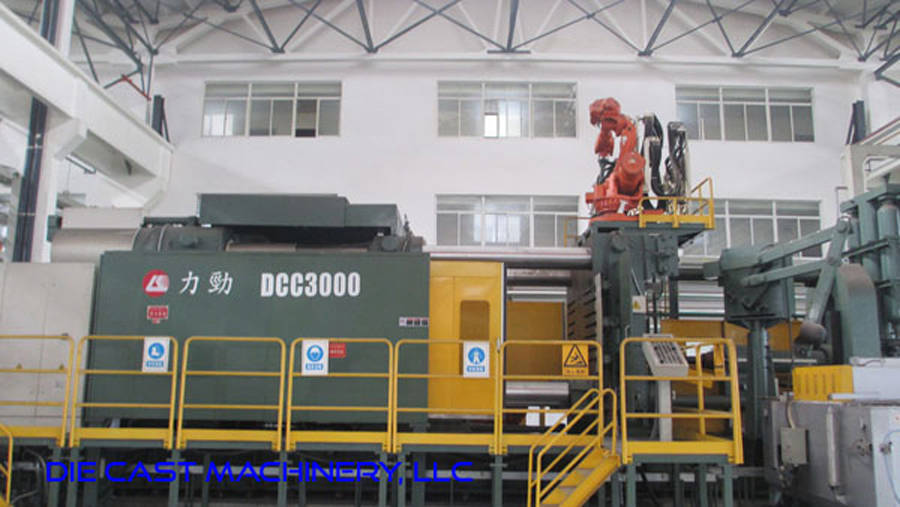

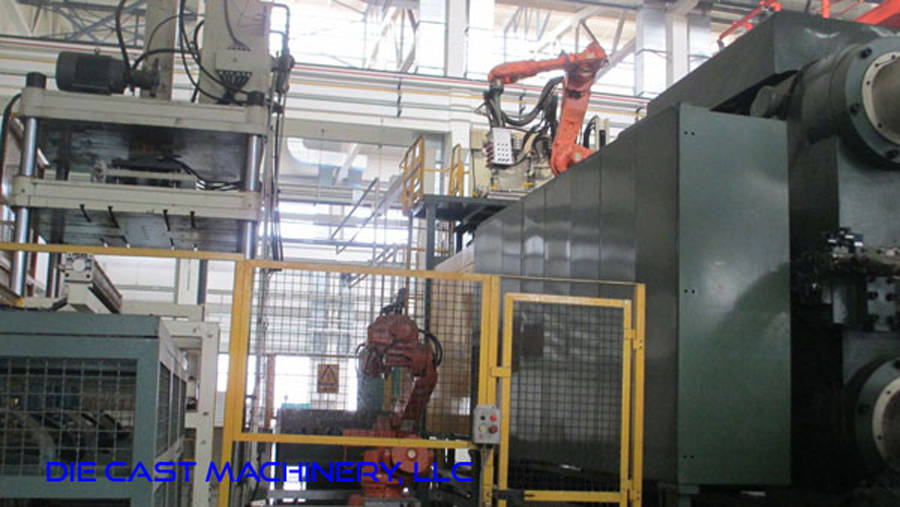

Used LK Machinery Model: DCC3000 3060 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: LK Machinery
Model: DCC3000
Size: 3060 Ton
Inventory Number: DCM-3273
Used LK Machinery Model: DCC3000 3060 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine.
Features & Accessories:
- brand new tie bars put in
Item Specifications for DCM-3273
| Specifications | |
|---|---|
| Locking Force: |
3060 tons
|
| Platen Size: |
103 x 103 inches
|
| Clearance Between Tie Bars (V x H): |
64.96 x 64.96 inches
|
| Tie Bar Diameter: |
13.39 inches
|
| Die Stroke: |
59.05 inches
|
| Die Height (min - max): |
31.49 - 78.75 inches
|
| Shot Position: |
-9.8, -17.7 inches
|
| Ejection Stroke |
11.81 inches
|
| Ejection Force: |
90.33 ton
|
| Injection Stroke: |
46.46 inches
|
| Machine Weight: |
259 tons
|
| Machine Size: |
51.67 x 17.22 x 16.99 feet
|
Description
Used, LK Machinery Model DCC3000 3060 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: controls, second Hand, DCM-3273
