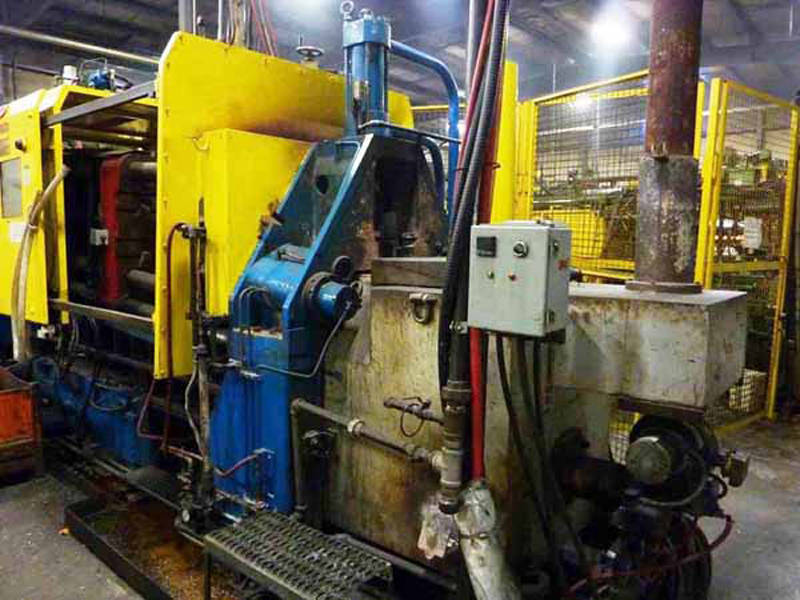

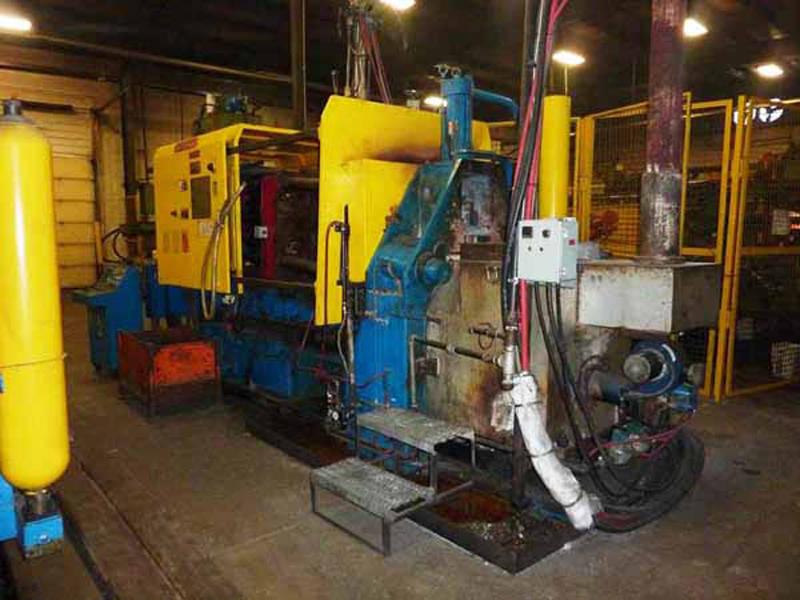

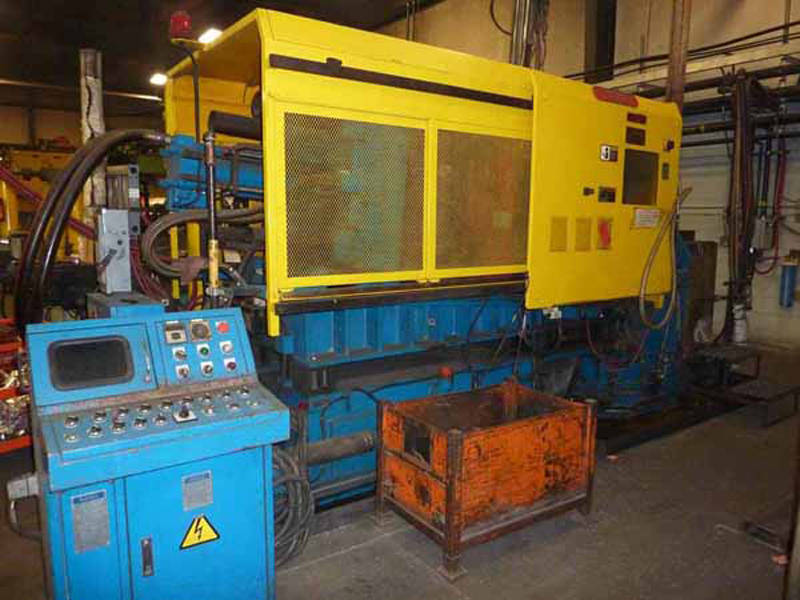

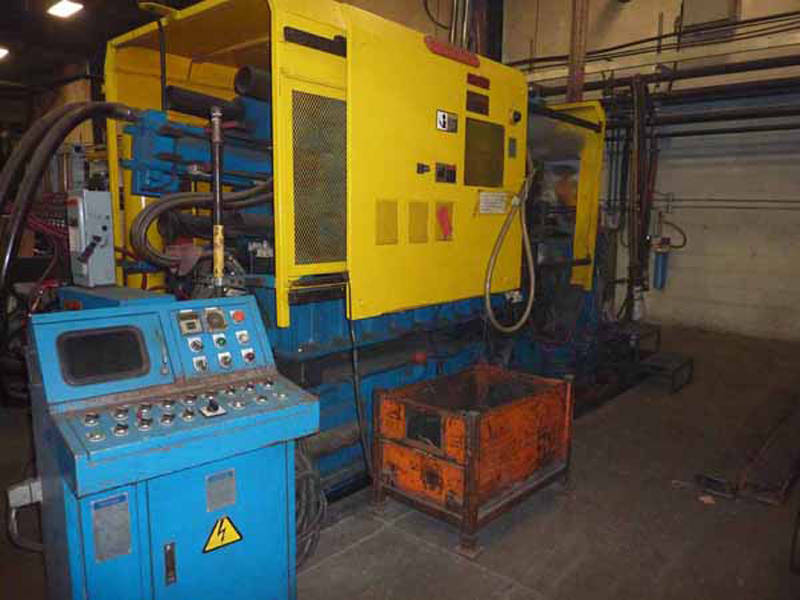

Used Producer Model: DH-P300 330 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:

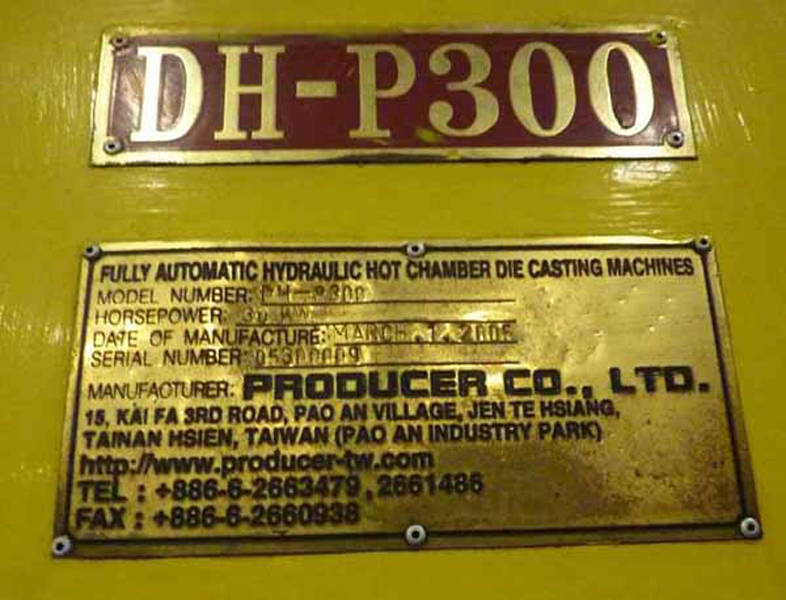

Manufacturer: Producer
Model: DH-P300
Size: 330 Metric Ton
Inventory Number: DCM-3582
Used Producer Model: DH-P300 330 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine.
Features & Accessories:

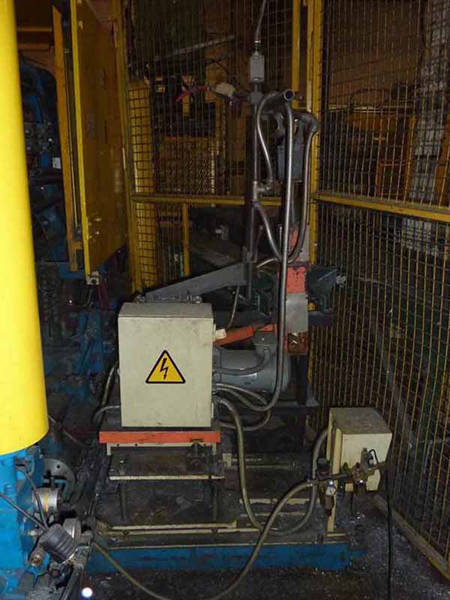

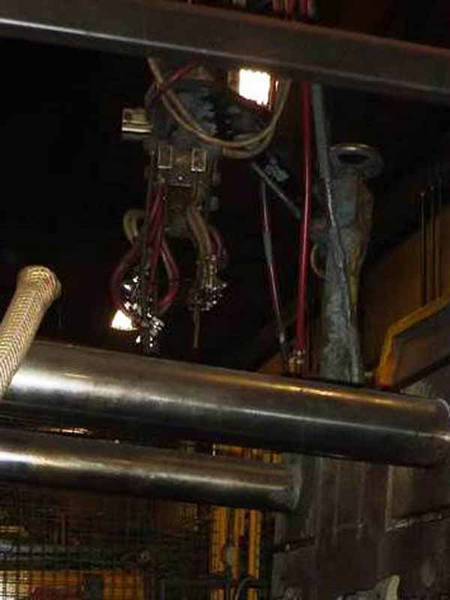

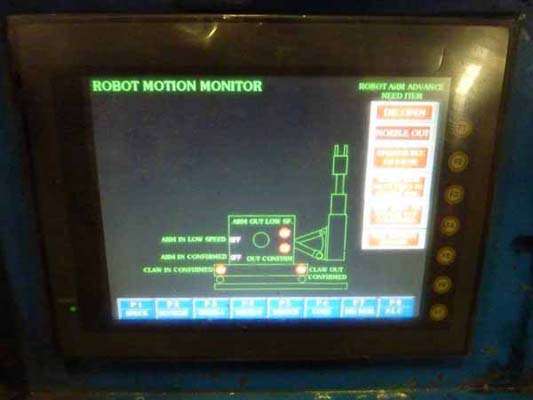

- Fully automated with Producer automatic linear die lube sprayer and dedicated part extractor
- Hydraulic motorized die height Adjustment System
- Hydraulic Bumper Plate Ejection System
- Two (2) auxiliary hydraulic side core circuits,
- Hydraulic nozzle clamping
- Automatic Oil Type Linkage lubrication, One (1) spare Gooseneck, Nozzle, Plunger Shaft and piston
Item Specifications for DCM-3582
| Specifications | |
|---|---|
| Clamping Force |
363 tons
|
| Die Thickness (Minimum - Maximum) |
7.87 to 22.44 inches
|

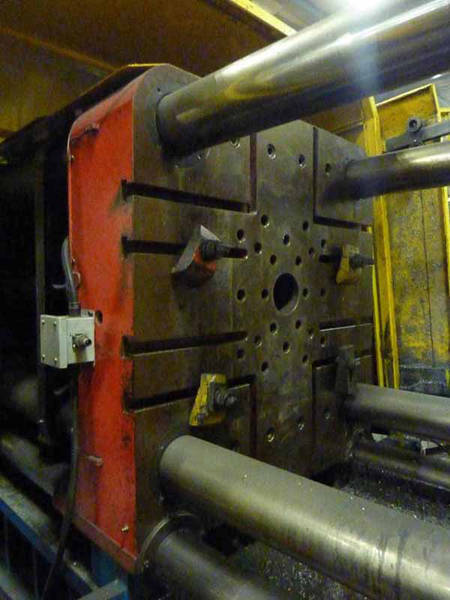

| Platen Dimensions (Horizontal x Vertical) |
34 x 36.2 inches
|

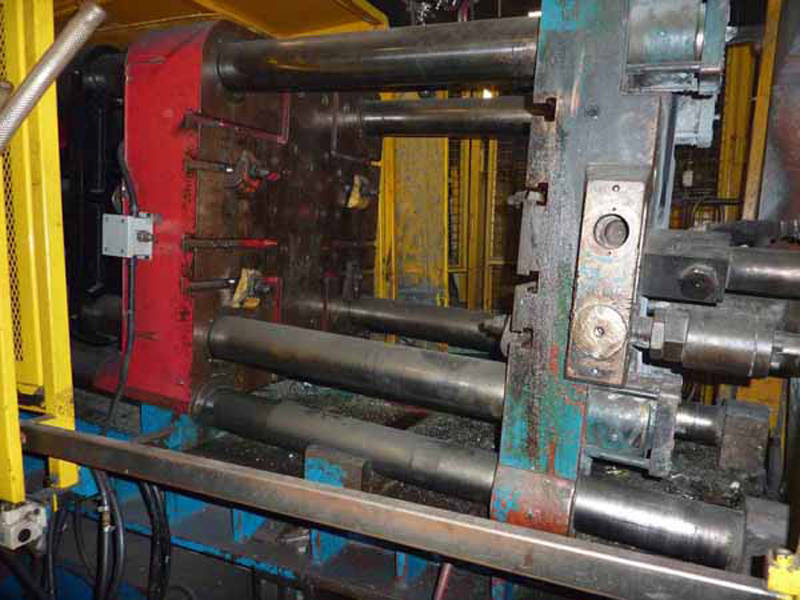

| Clearance Between Tie Bars |
21.25 x 21.25 inches
|
| Tie Bar Diameter |
4.4 x 4, 3.93 x 2 inches
|
| Closing Stroke |
15.75 inches
|
| Maximum Injection Force |
10.23 tons
|
| Injection Plunger Diameter |
2.95 and 3.14 inches
|
| Injection Positions: |
center to -5.9 inches
|
| Ejector Stroke - Force |
3.93 inches - 15.18 tons
|

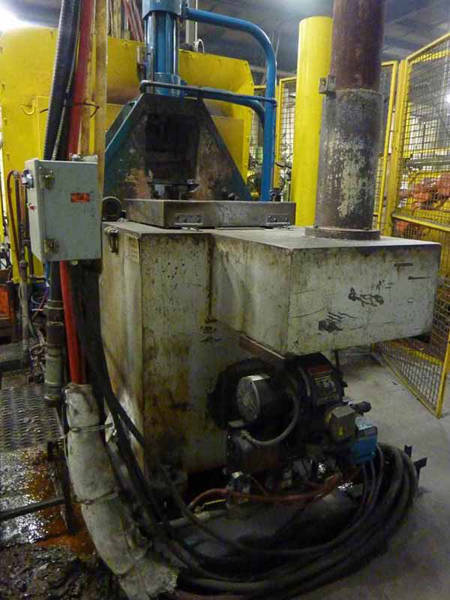

| Melting Pot capacity |
1543 pounds
|
| Weight of Machine |
34,000 pounds
|
Description

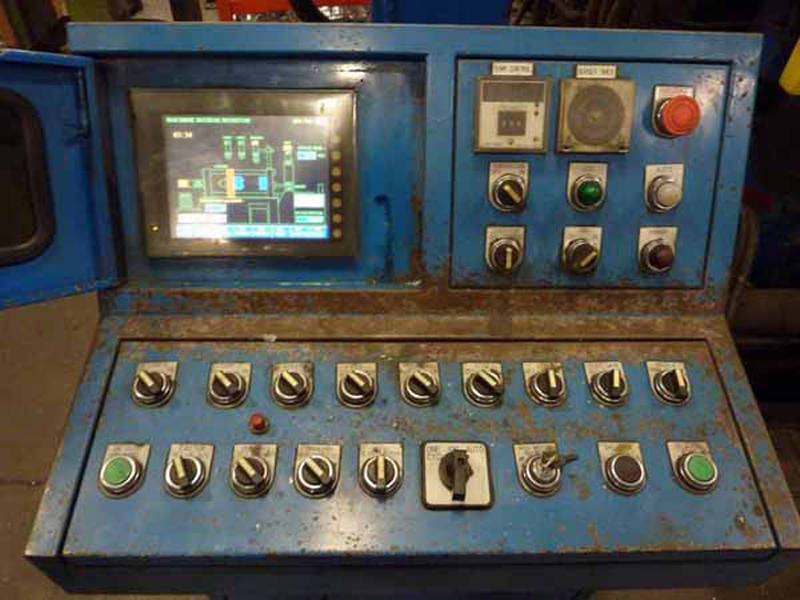

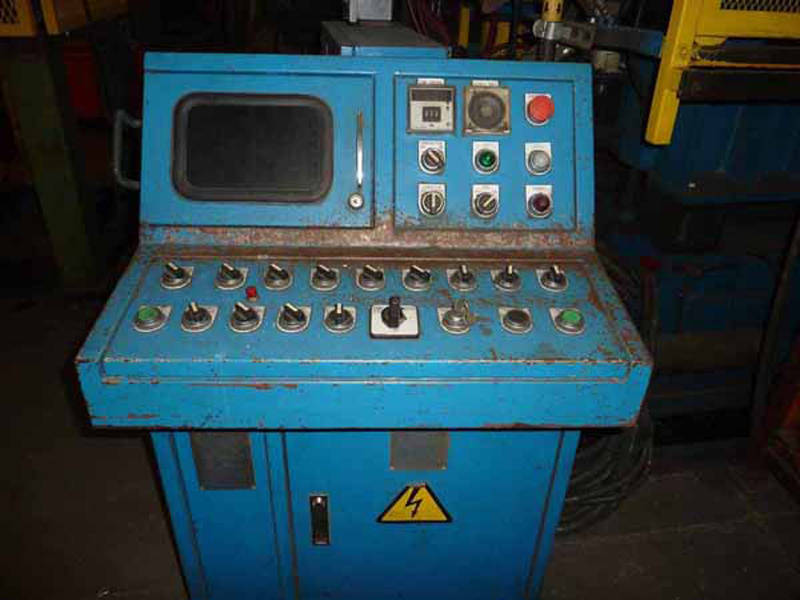

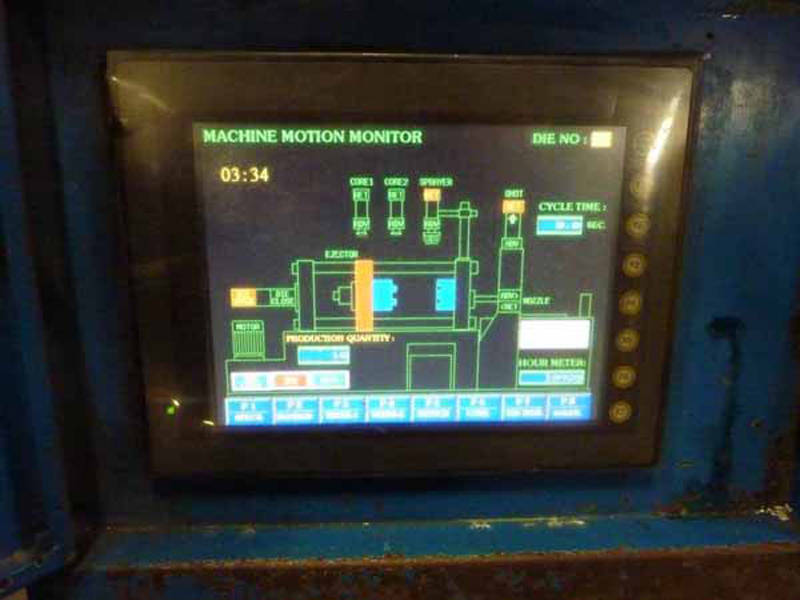

Used, Producer Model DH-P300 330 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Fully automated with Producer automatic linear die lube sprayer and dedicated part extractor, Hydraulic motorized die height Adjustment System, Hydraulic Bumper Plate Ejection System, Two (2) auxiliary hydraulic side core circuits Hydraulic nozzle clamping, Automatic Oil Type Linkage lubrication, One (1) spare Gooseneck, Nozzle, Plunger Shaft and piston, Mitsubishi FX2N PLC controls, second Hand, DCM-3582
