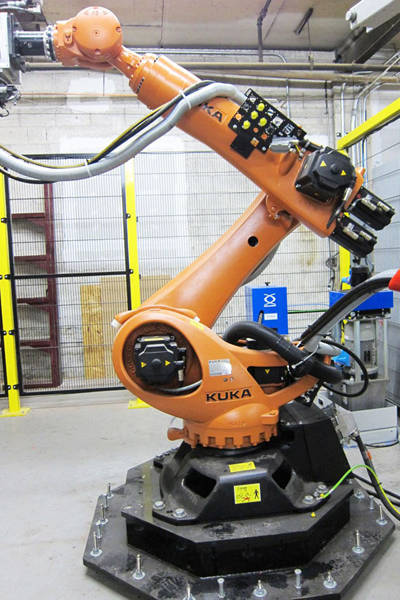

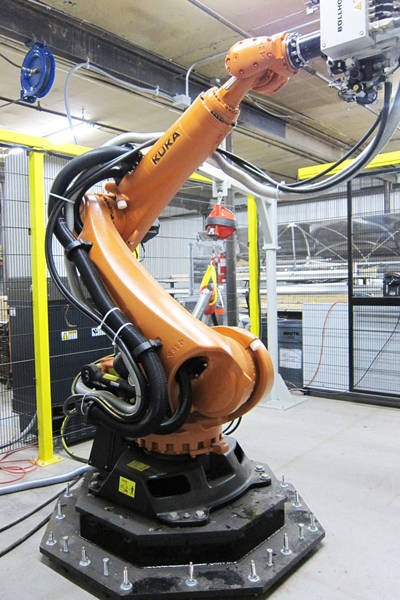

Used Kuka Model: KR 150 R2700 Extra 150 KG Six Axis Foundry Rated Industrial Robot
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:

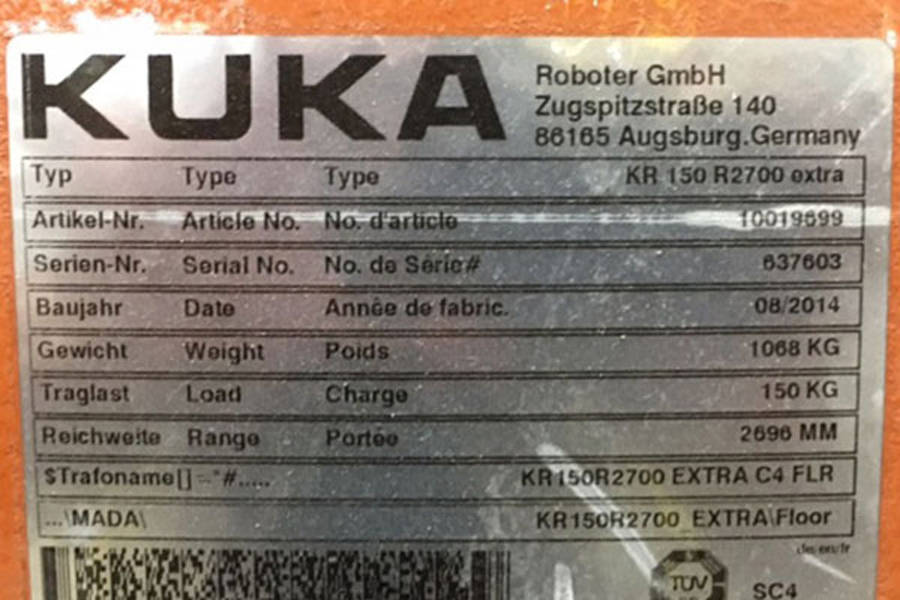

Manufacturer: Kuka
Model: KR 150 R2700 Extra
Size: 150 KG
Inventory Number: DCM-3789
Used Kuka Model: KR 150 R2700 Extra 150 KG Six Axis Foundry Rated Industrial Robot.
Features & Accessories:
- Manufactured in 2014: Low hours - Like New.
- Mounting Positions: Floor or Celling
- Fast maneuverability, flexibility and versatitilty
- High Payload Capability and Compact Arm Design
- KR QUANTEC extra series

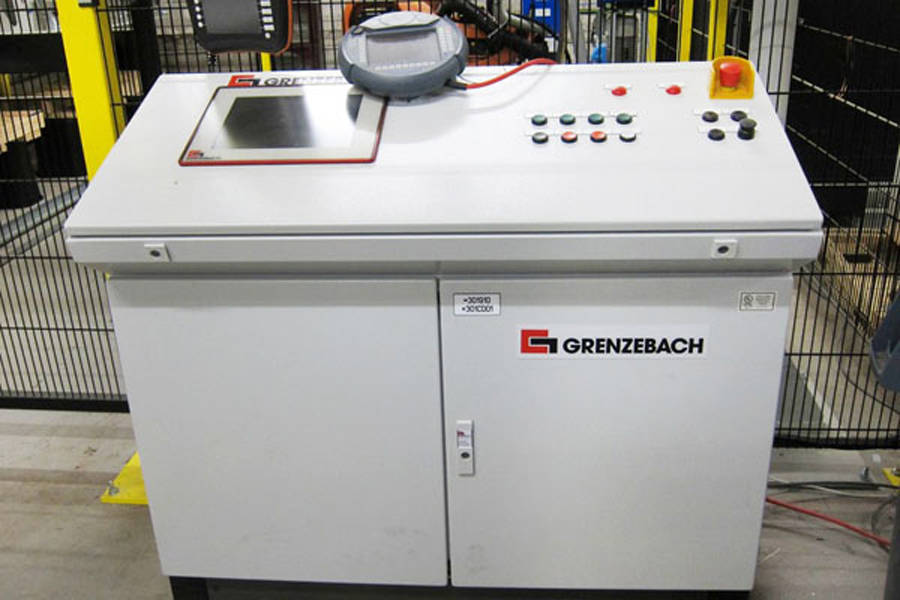

- KR C4 Controller and IP 65 Protection Class
- Repeatability is +- 0.06mm
Item Specifications for DCM-3789
| Specifications | |
|---|---|
| Number of Axis: |
6
|
| Payload Capacity: |
330 pounds
|
| Supplementary Payload: |
110 pounds
|
| Maximum Reach: |
106 inches
|
| Axis 1 Rotation Motion: |
+185 to -185 Degrees
|
| Axis 2 Arm Motion: |
-5 to +140 Degrees
|
| Axis 3 Arm Motion: |
+155 to -120 Degrees
|
| Axis 4 Wrist Motion: |
+350 to -350 Degrees
|
| Axis 5 Bend Motion: |
+125 to -125 Degrees
|
| Axis 6 Turn Motion: |
+350 to -350 Degrees
|

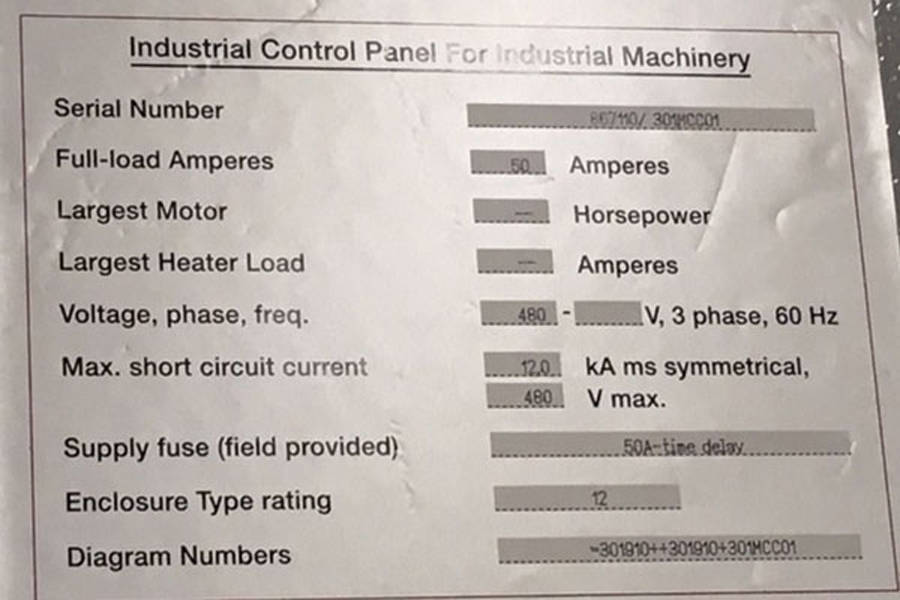

| Power Requirements: |
480 volt, 3 phase, 60 cycle
|
| Weight: |
2354 pounds
|
Description
Used, Kuka Model KR 150 R2700 Extra 150 KG Six Axis Foundry Rated Industrial Robot For_Sale, Features Include: Mounting Positions: Floor or Celling, Fast maneuverability, flexibility and versatitilty, High Payload Capability and Compact Arm Design, KR QUANTEC extra series, KR C4 Controller and IP 65 Protection Class, Repeatability is +- 0.06mm, KR C4 controls, second Hand, DCM-3789
