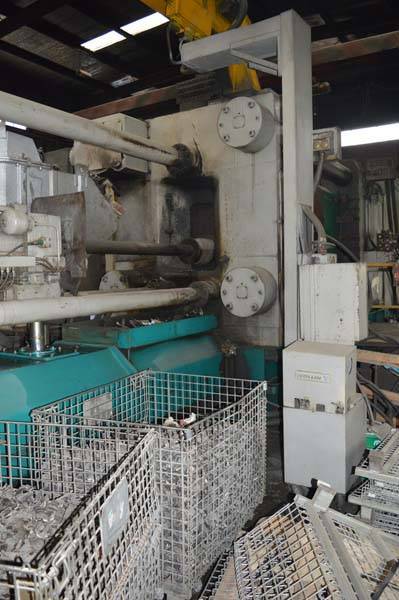

Used Buhler 1800 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine


Print PDF!

Status: Sold

We offer for sale, subject to prior sale and the terms listed below:

Used Buhler 1800 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine. Inventory item: DCM-3942.

Manufacturer: Buhler

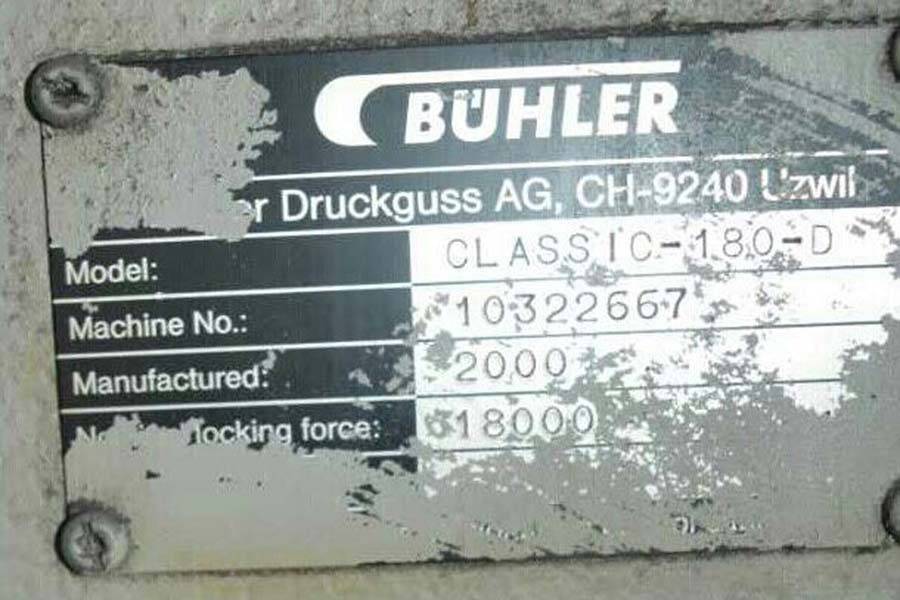

Model: Classic 180 D

Features & Accessories:

  • Automatic Tie Bar Pulling - Top Operator Side Tie Bar
  • Buhler PickMat Automatic Parts Extractor

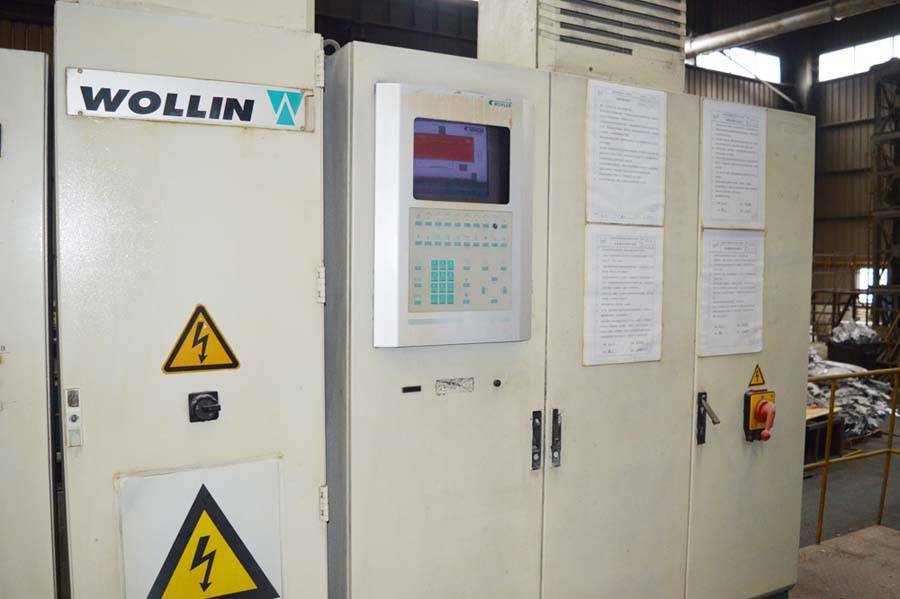

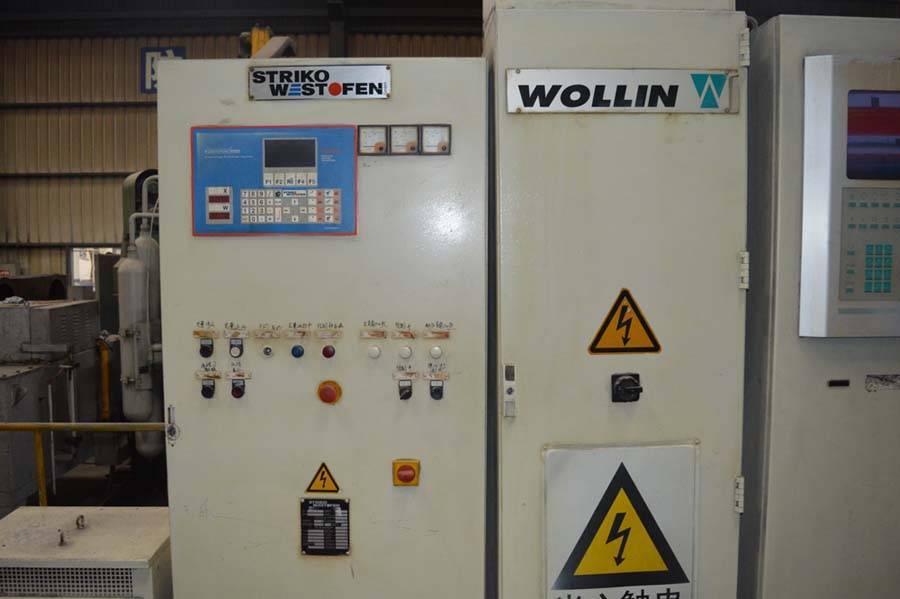

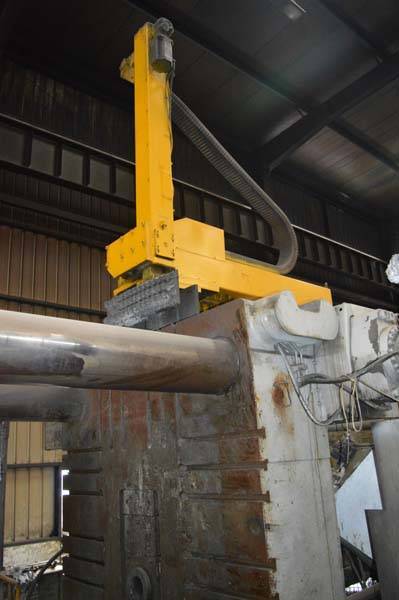

  • Wollin Model PSM 336 2 Axis High Speed Linear Die Spray System

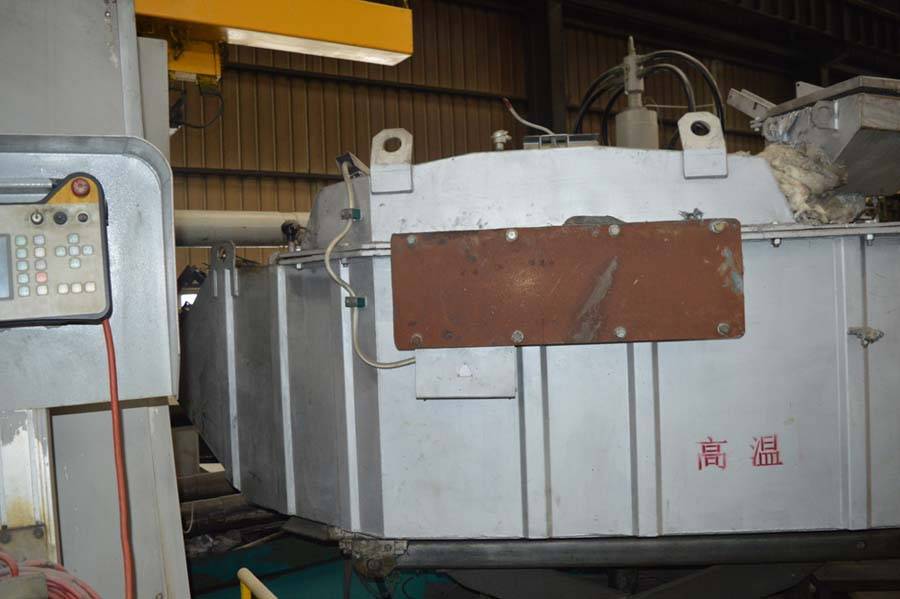

  • Striko Westoffen Model W 120 SL ProDos Electric Heated Aluminum Dosing Furnace
  • Three Auxiliary Hydraulic Core Circuits - Two on Moving Platen - One on Fixed Platen
  • Automatic Lubrication System - Pressurized Oil Type

Item Specifications for DCM-3942

Specifications
Clamping Force:
2023 tons
Die Thickness (Minimum - Maximum):
19.68 to 63 inches

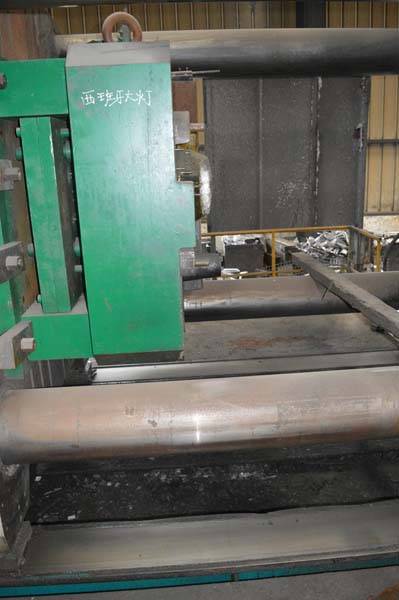

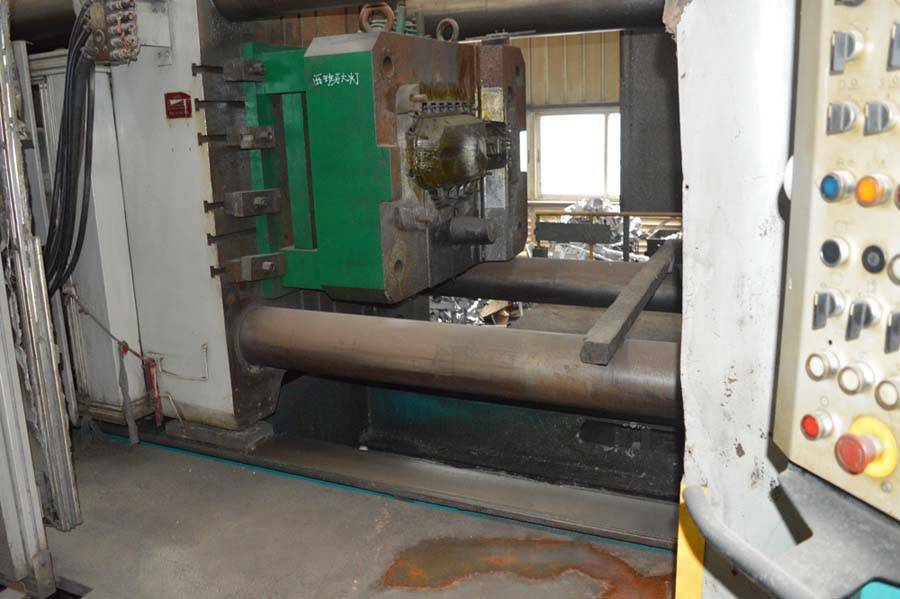

Platen Dimensions (horizontal x vertical):
77.16 x 77.95 inches
Clearance between tie bars:
49.2 inches
Moving Platen Stroke (maximum):
49.2 inches
Injection Plunger Stroke (maximum):
45.27 inches
Injection Positions:
0 to -16.53 inches

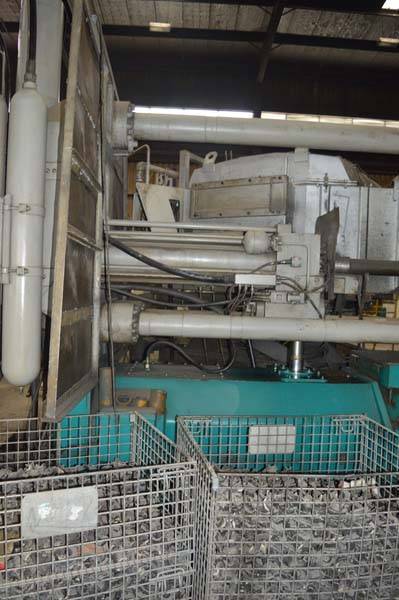

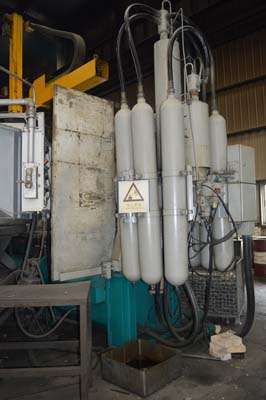

Injection Force / Intensified:
63 / 170 tons
Maximum Ejector Force / Stroke:
56 tons / 9.44 inches

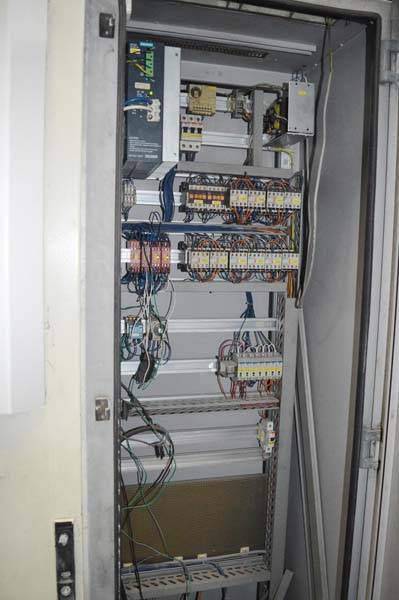

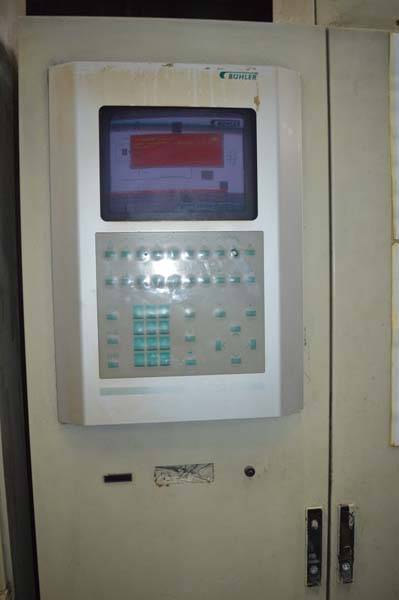

Machine Controls:
Buhler DataSpeed
Main Motor:
120 & 60 HP
Machine Weight
214,940 pounds

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in most cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can supply contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped many die casting machines internationally up to 4,000 tons.: We offer Expedited International shipping available to the following Countries: India, Germany, France, Spain, Portugal, Switzerland, Italy, England, Sweden, Netherlands, Poland, Turkey, Ukraine, UK, Great Britain, Russia, Australia, Japan, Korea, Thailand, China, Singapore, Canada, USA, Mexico, Brazil, Argentina, Columbia, Venezuela and Peru.

Description

Used, Buhler Model Classic 180 D 1800 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For Sale, Features include: Automatic Tie Bar Pulling - Top Operator Side Tie Bar, Buhler PickMat Automatic Parts Extractor, Wollin Model PSM 336 2 Axis High Speed Linear Die Spray System, Striko Westoffen Model W 120 SL ProDos Electric Heated Aluminum Dosing Furnace, Three Auxiliary Hydraulic Core Circuits - Two on Moving Platen - One on Fixed Platen, Automatic Lubrication System - Pressurized Oil Type, Buhler DataSpeed Controls, Second Hand, DCM-3942

The following technical terms are to assist you with searches: Used | Second Hand | Buhler |Classic 180 D | 1800 Metric Ton | Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine | For Sale | Automatic Tie Bar Pulling - Top Operator Side Tie Bar | Buhler PickMat Automatic Parts Extractor | Wollin Model PSM 336 2 Axis High Speed Linear Die Spray System | Striko Westoffen Model W 120 SL ProDos Electric Heated Aluminum Dosing Furnace | Three Auxiliary Hydraulic Core Circuits - Two on Moving Platen - One on Fixed Platen | Automatic Lubrication System - Pressurized Oil Type | Buhler DataSpeed Controls | DCM-3942

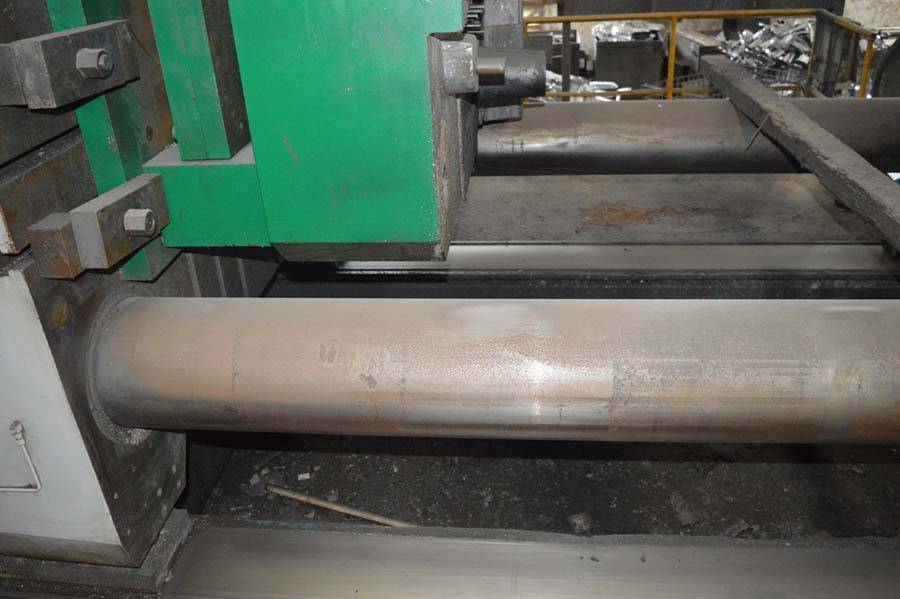

See jumbo large photos of this Buhler Classic 180 D
