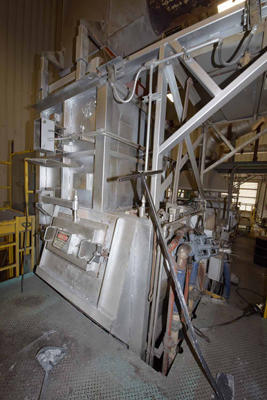

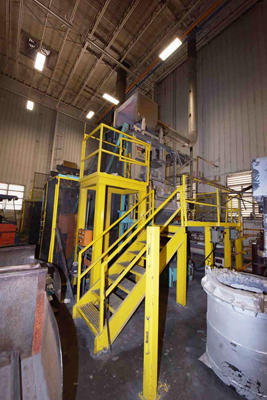

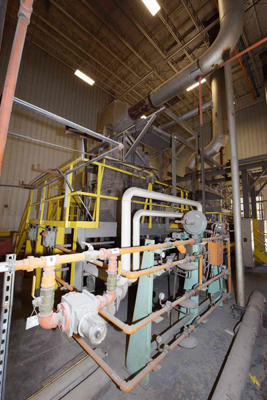

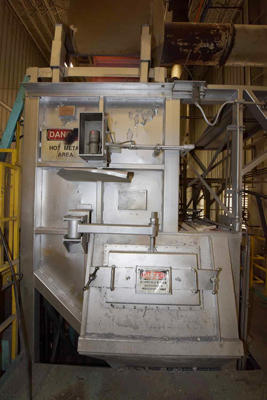

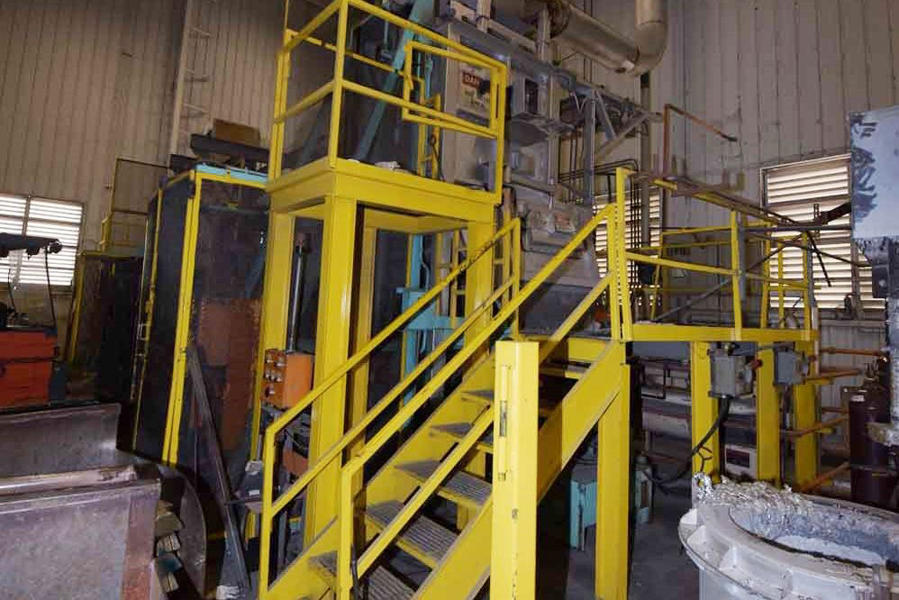

Used Modern Equipment Model: AL-3000 Jet Melter 3000 Pounds/Hour Stack (tower/shaft) Type Stationary Aluminum Melting and Holding Furnace
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:

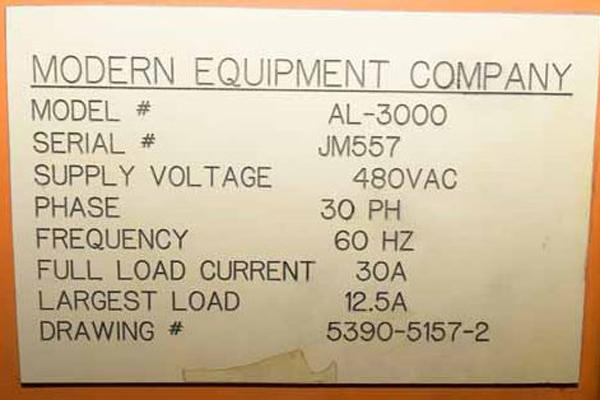

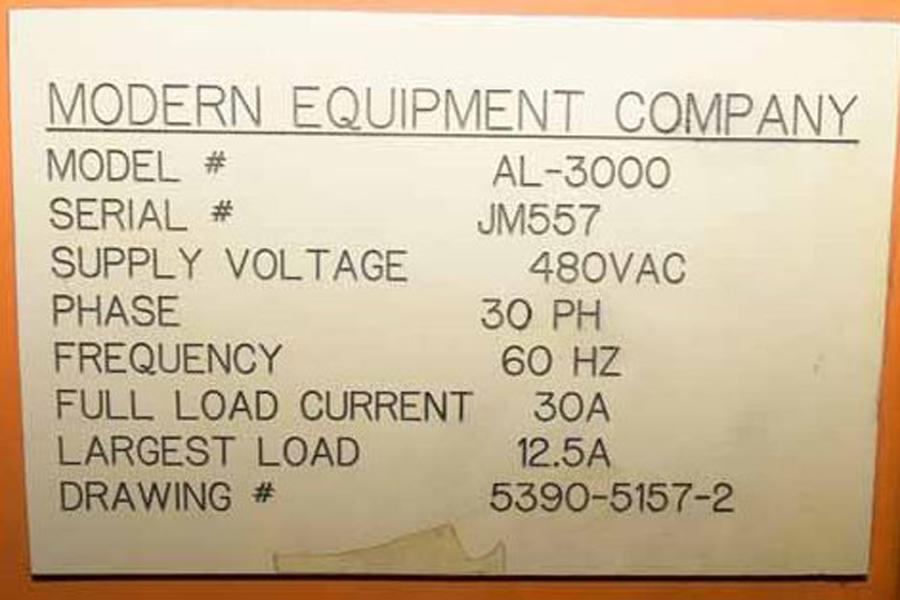

Manufacturer: Modern Equipment
Model: AL-3000 Jet Melter
Size: 3000 Pounds/Hour
Inventory Number: DCM-4143

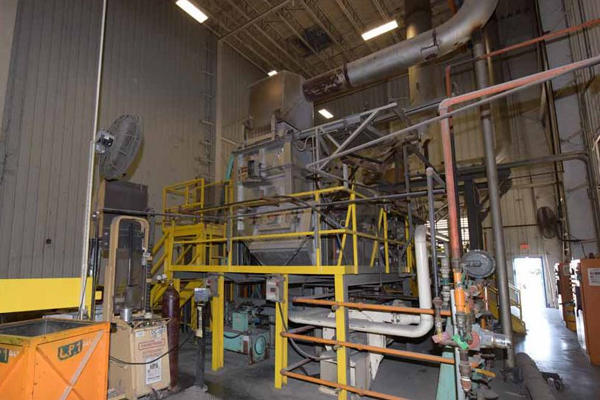

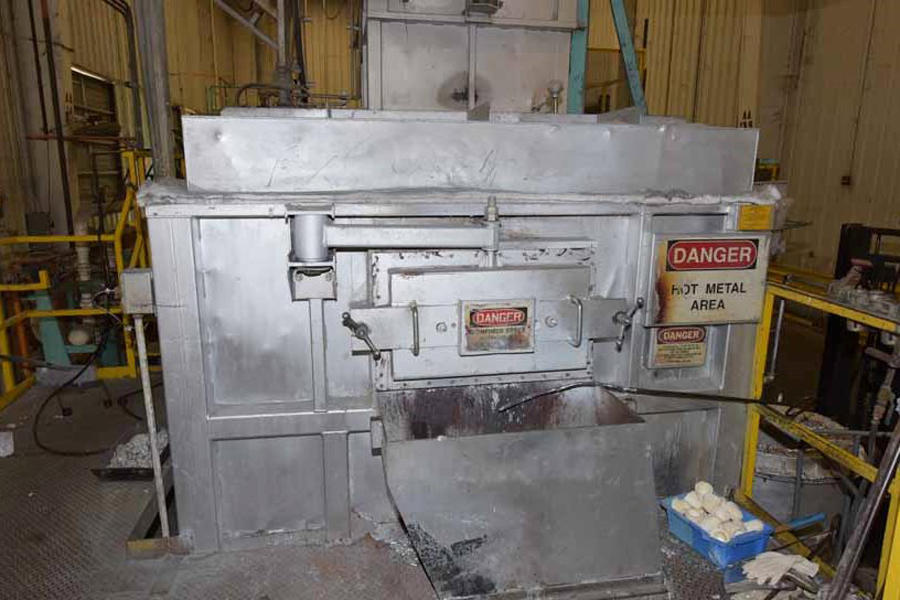

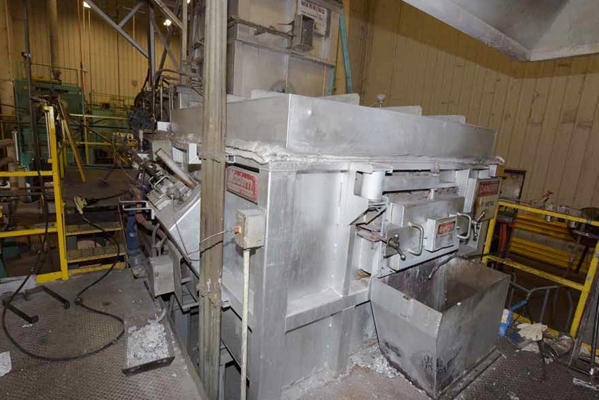

Used Modern Equipment Model: AL-3000 Jet Melter 3000 Pounds/Hour Stack (tower/shaft) Type Stationary Aluminum Melting and Holding Furnace.
Click above for larger image
Features & Accessories:

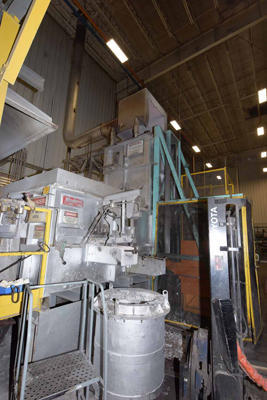

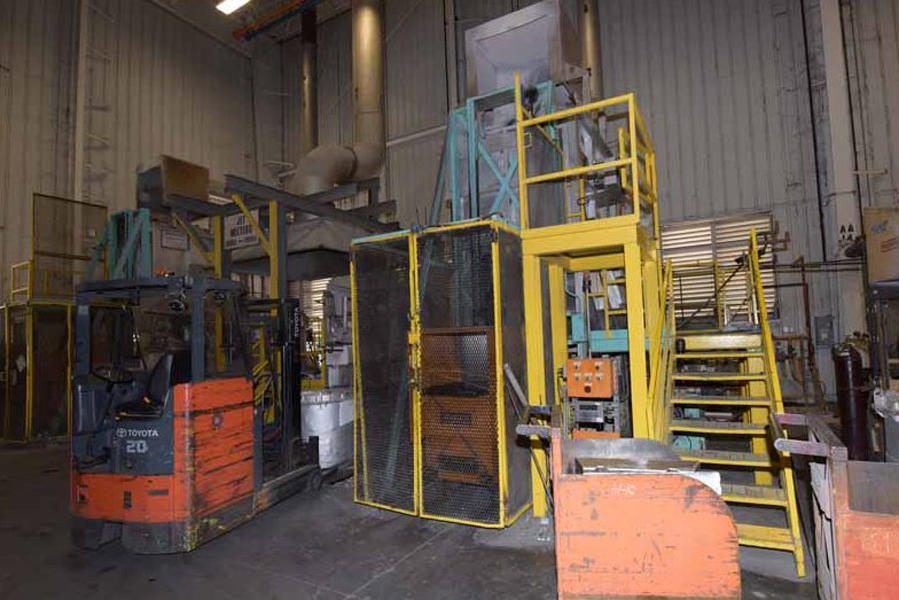

- Equipped with Modern Equipment Company Ingot and Scrap Charging Elevator

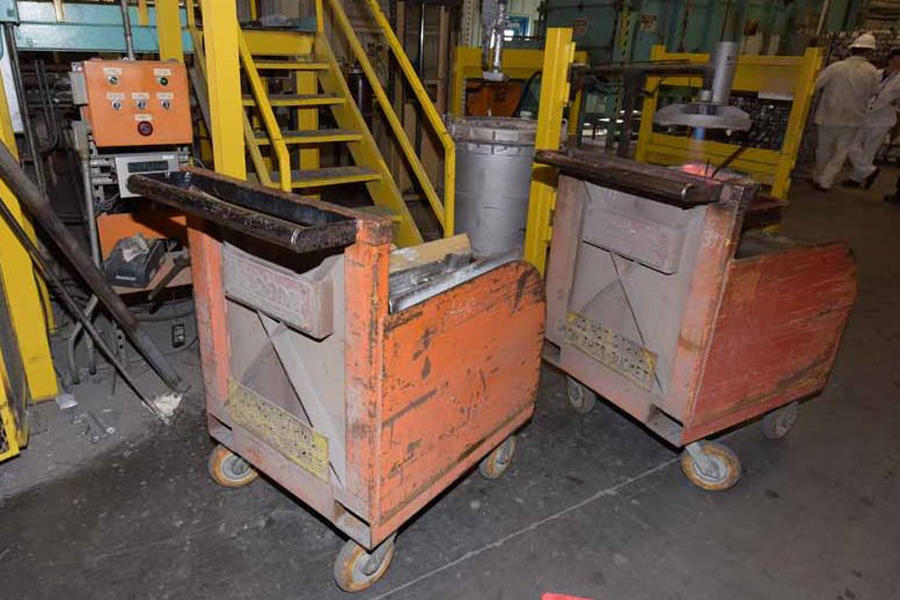

- Incldues Ingot and scrap carts
- High Efficiency Shaft Melting Furnace Design
- High Melt Rate to Bath Size Ratio

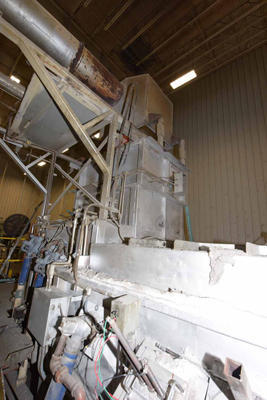

- Waste Gas Hood with Waste Gas Baffle
- Very Low Dross Loss Rate
Item Specifications for DCM-4143
Specifications | |
---|---|
Melting Capacity (Aluminum): |
3,000 pounds per hour
|
Bath Capacity: |
8,100 pounds
|
Maximum Bath Temperature: |
1400 F
|
Burner System: |
2 Melting - 1 Holding
|
Type of Burner: |
Medium Speed Gas Burner
|
Fuel: |
Natural Gas
|
Total Burner Rating Melting Burners/Holding Burner: |
2,520,000/1,080,000 BTU
|
Ingot/Scrap Charging Unit: |
Yes
|
Ingot Carts |
Yes
|
Furnace Design: |
Aluminum Stack Melting Furnace
|
Power Metal Tap & Flow Rate: |
Yes/450 pounds per minute
|
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Document(s) For This Machine
Shipping Terms: Ex-warehouse
We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.
Description

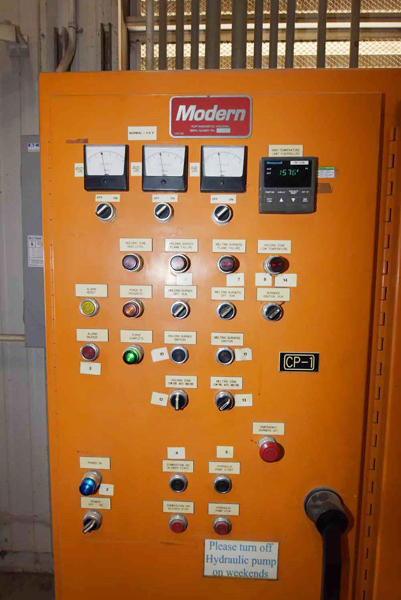

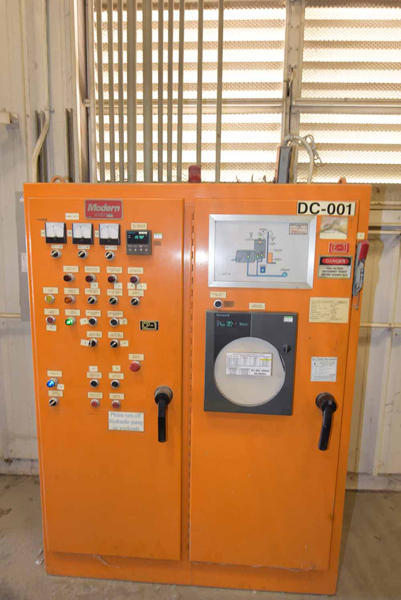

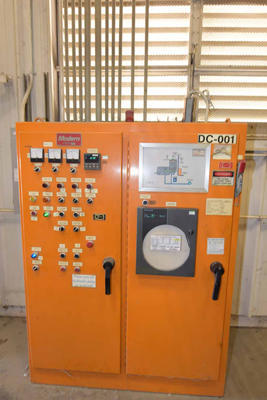

Used, Modern Equipment Model AL-3000 Jet Melter 3000 Pounds/Hour Stack (tower/shaft) Type Stationary Aluminum Melting and Holding Furnace For_Sale, Features Include: Equipped with Modern Equipment Company Ingot and Scrap Charging Elevator, Incldues Ingot and scrap carts, High Efficiency Shaft Melting Furnace Design, High Melt Rate to Bath Size Ratio, Waste Gas Hood with Waste Gas Baffle, Very Low Dross Loss Rate, Allen Bradley SLC 5/04 Solid State Programmable controls, second Hand, DCM-4143

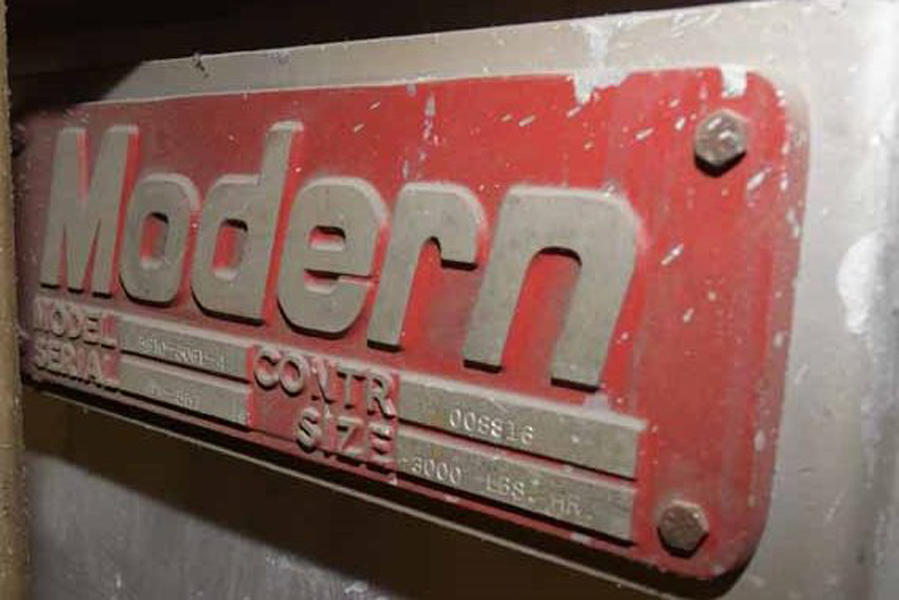

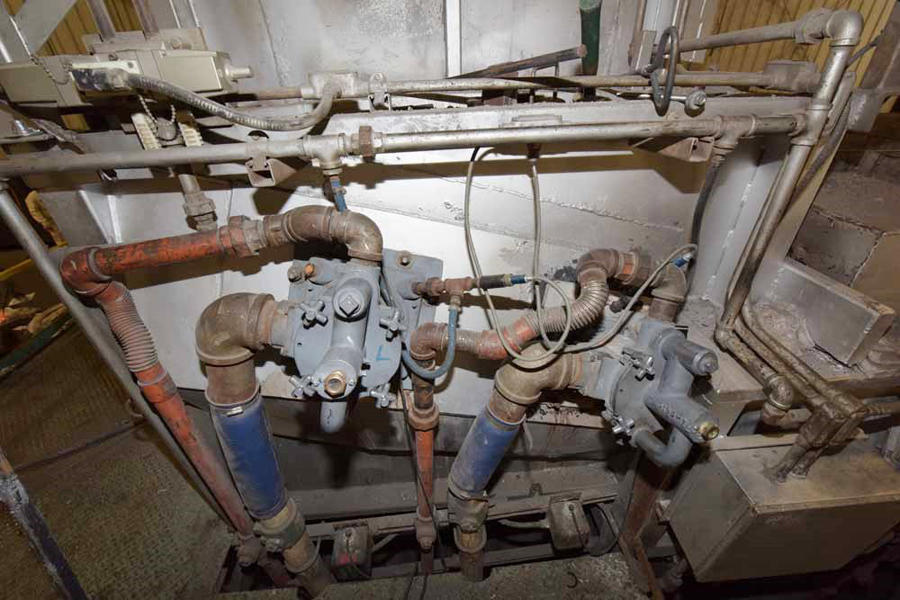

See jumbo large photos of this Modern Equipment AL-3000 Jet Melter
