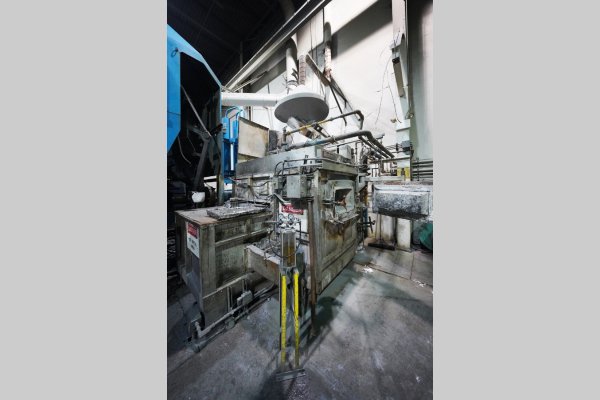

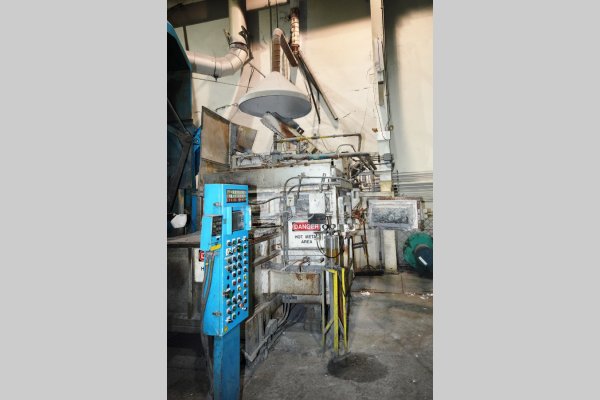

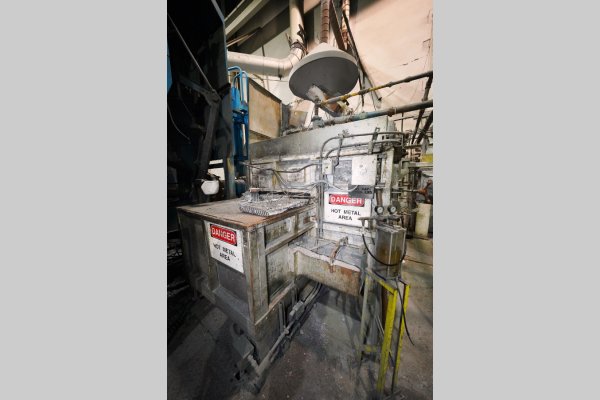

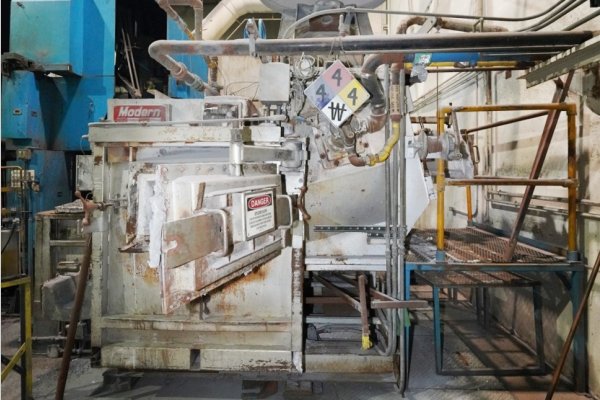

Used Modern Equipment Model: AL-660 Jet Melter 660 Pounds per hour of aluminum Stack (tower/shaft) Type Stationary Aluminum Melting and Holding Furnace
Status: Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Modern Equipment
Model: AL-660 Jet Melter
Size: 660 Pounds per hour of aluminum
Inventory Number: DCM-5504
Used Modern Equipment Model: AL-660 Jet Melter 660 Pounds per hour of aluminum Stack (tower/shaft) Type Stationary Aluminum Melting and Holding Furnace.
View Available Stack Melting Furnaces
Features & Accessories:
- High Energy efficiency Aluminum Melting Furnace - As low as 1,000 BTU per pound of Melt
- Reduced melt loss - less than 1%
- High Quality Metal - Lower gas and inclusion levels
- High Efficiency Aluminum Stack Melting Design aka Aluminum Shaft Melting Furnace or Aluminum Tower Melter
Item Specifications for DCM-5504
| Specifications | |
|---|---|
| Model: |
AL-660
|
| Aluminum Melt Rate: |
660 pounds per hour of Aluminum
|
| Total Molten Aluminum Capacity: |
3,000 pounds Aluminum
|

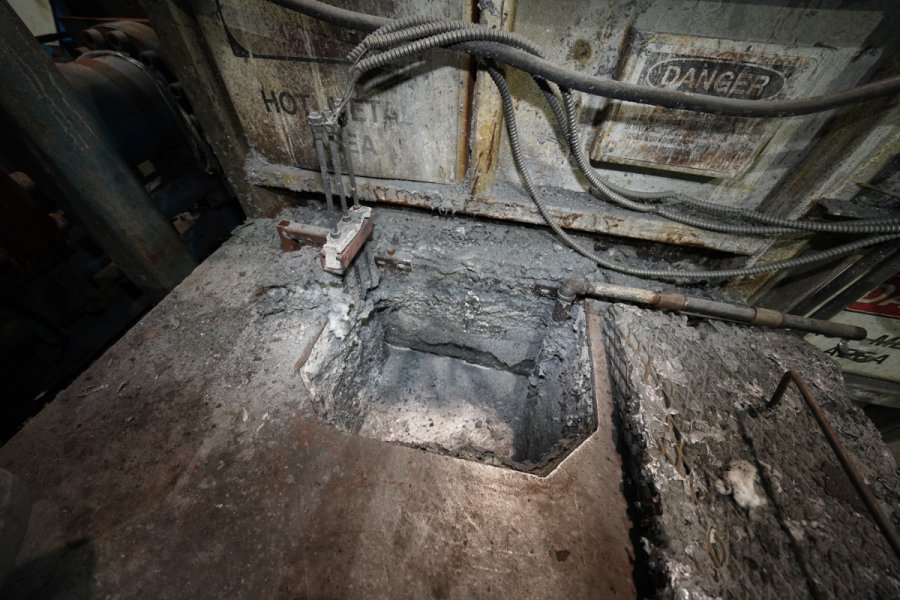

| Dip Well Capacity: |
500 pounds Aluminum
|
| Melting Burners: |
1 melting @ 565,000
|
| Holding Burner: |
1 Low-NOX flat-flame design @ 530,000 BTU
|
| Total BTU (melting & holding): |
1,095,000 BTU
|
| Bottom Tap for draining furnace: |
Yes
|

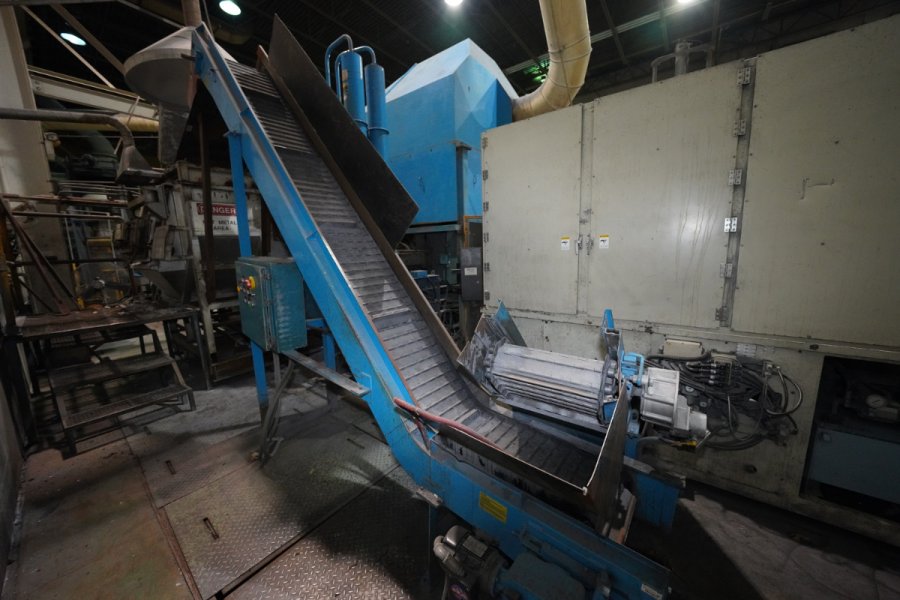

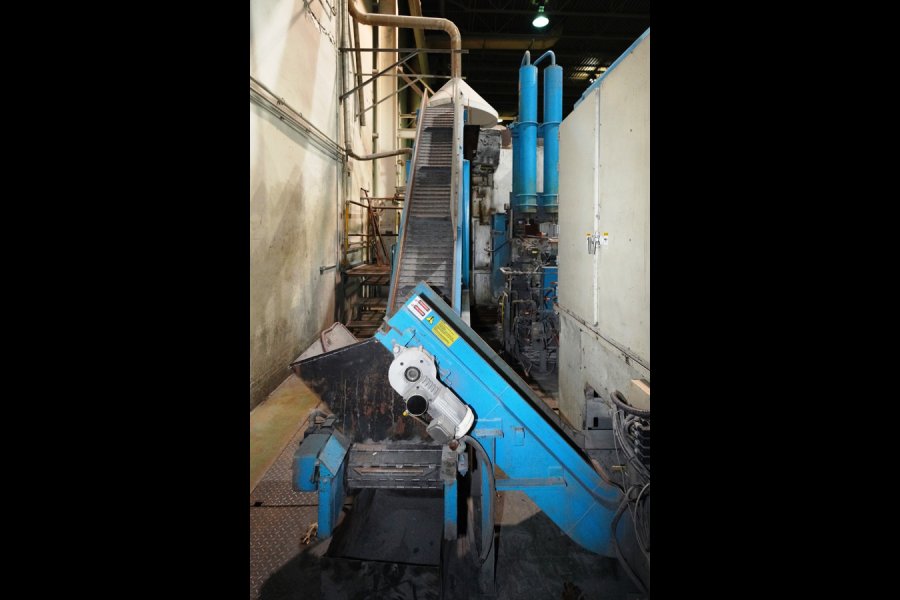

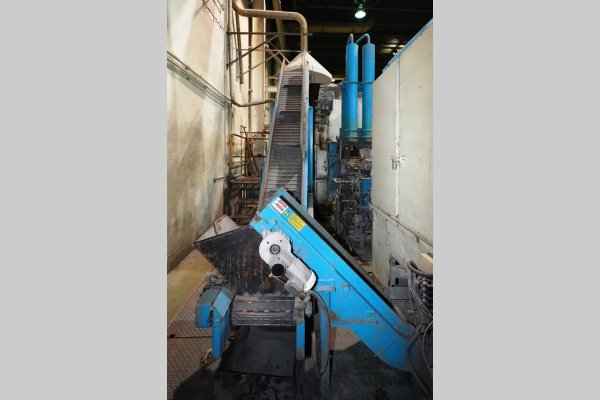

| Conveyor System for loading Scrap & Ingot: |
Yes
|
Document(s) For This Machine
Shipping Terms: Ex-works
We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.
Description

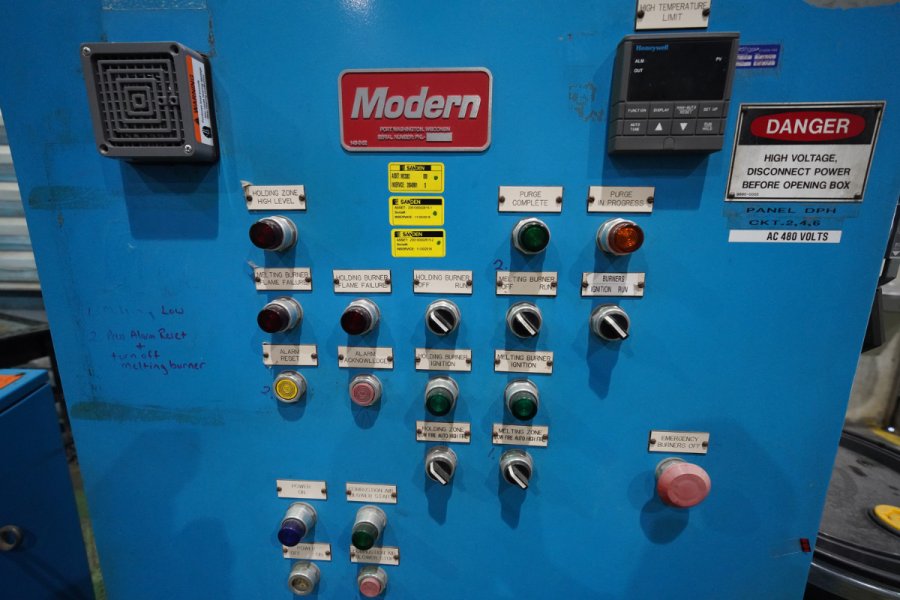

Used, Modern Equipment Model AL-660 Jet Melter 660 Pounds per hour of aluminum Stack (tower/shaft) Type Stationary Aluminum Melting and Holding Furnace For_Sale, Features Include: High Energy efficiency Aluminum Melting Furnace - As low as 1,000 BTU per pound of Melt, Reduced melt loss - less than 1%, High Quality Metal - Lower gas and inclusion levels, High Efficiency Aluminum Stack Melting Design aka Aluminum Shaft Melting Furnace or Aluminum Tower Melter, Honeywell controls, second Hand, DCM-5504

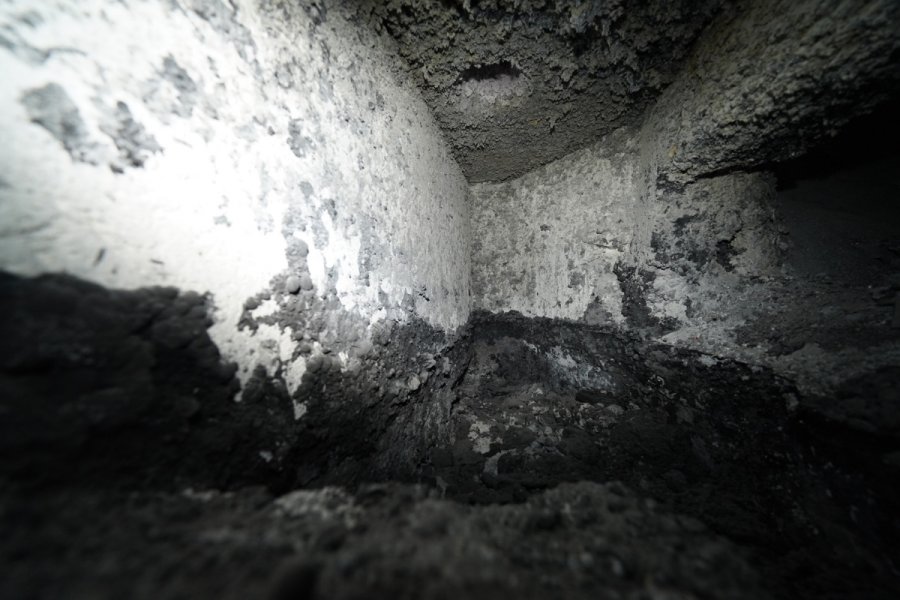

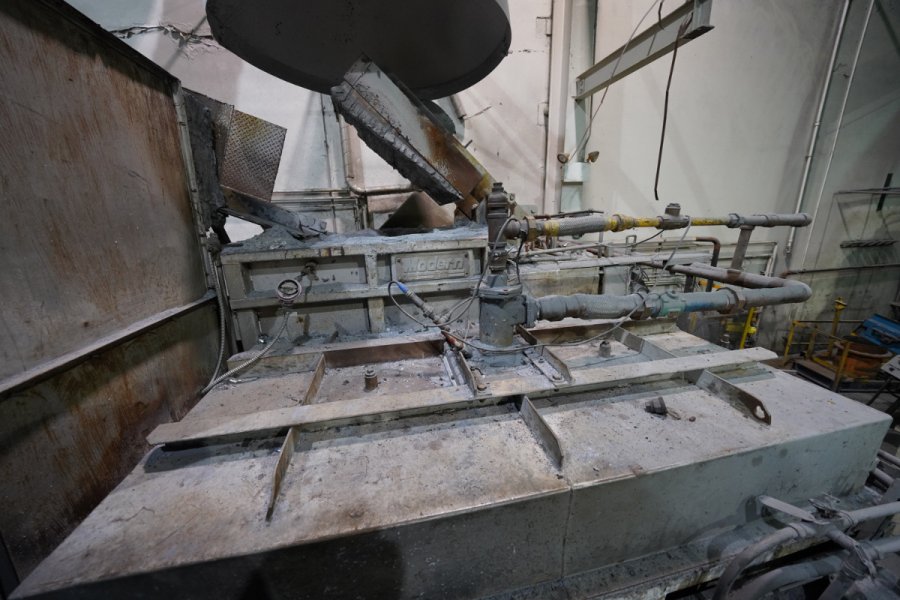

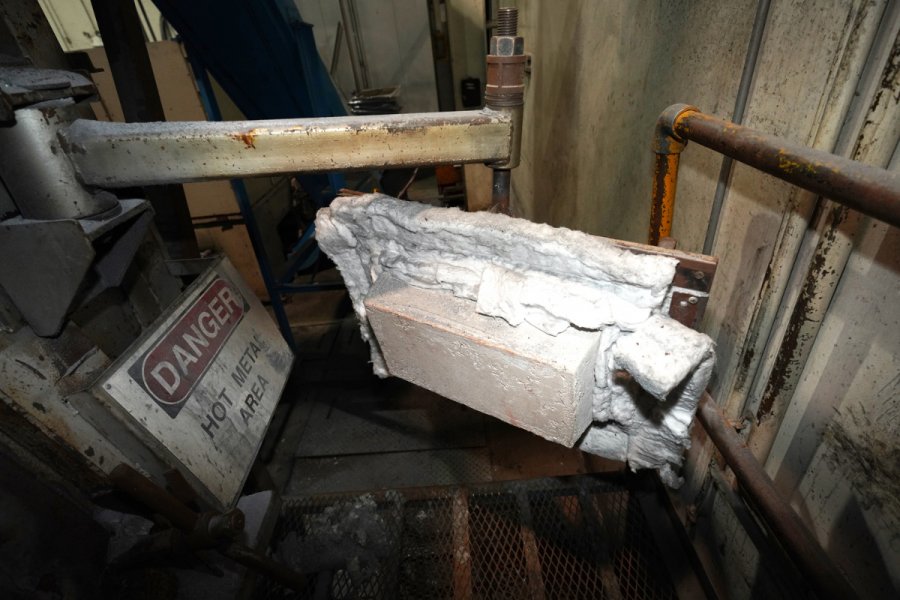

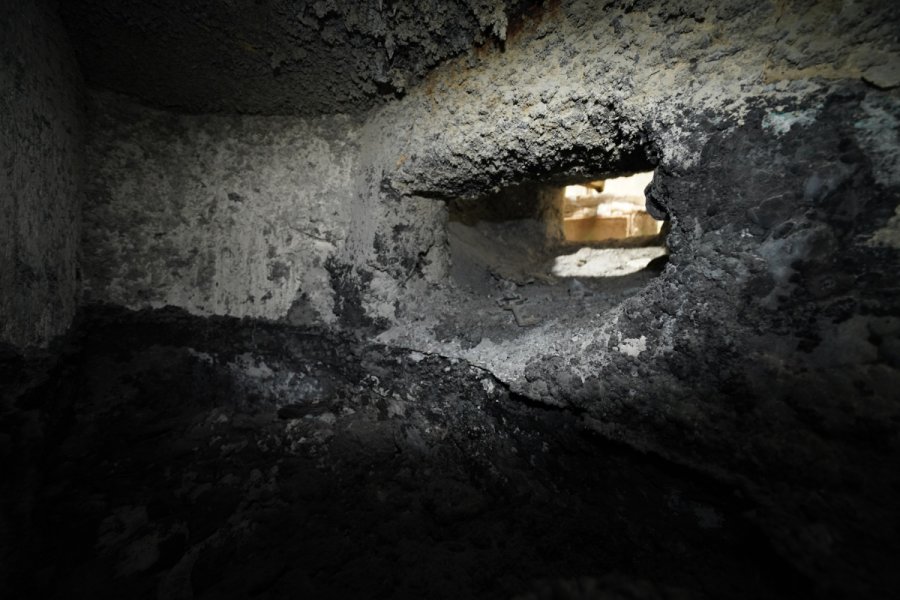

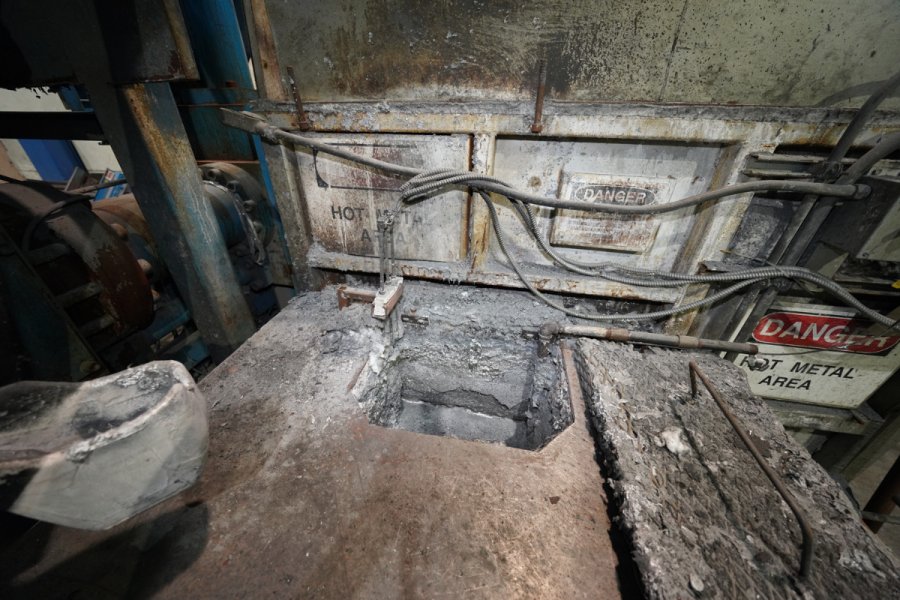

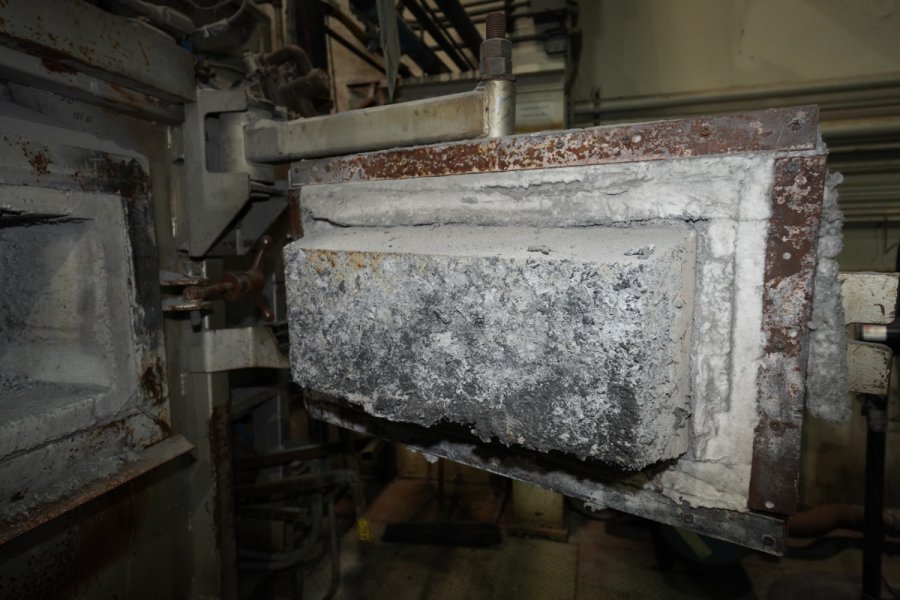

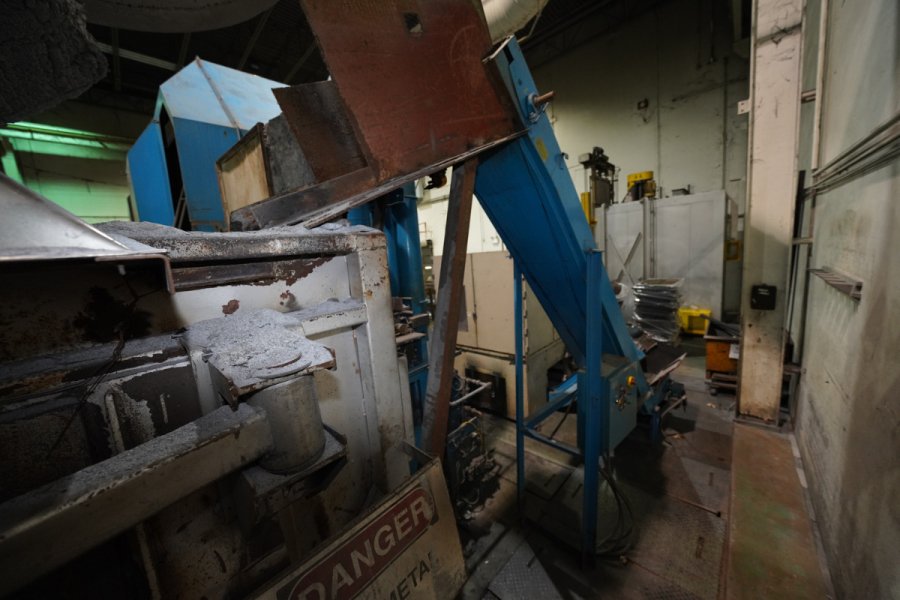

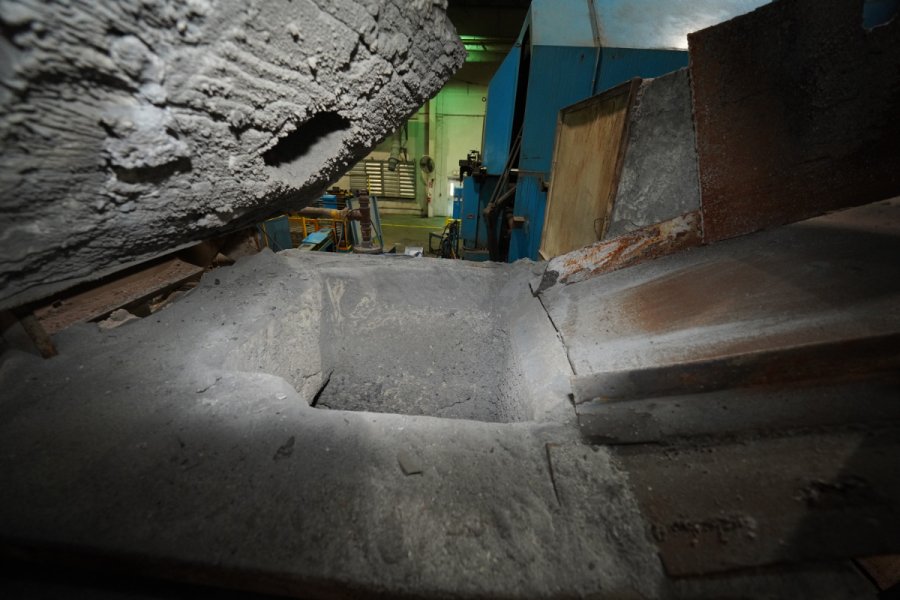

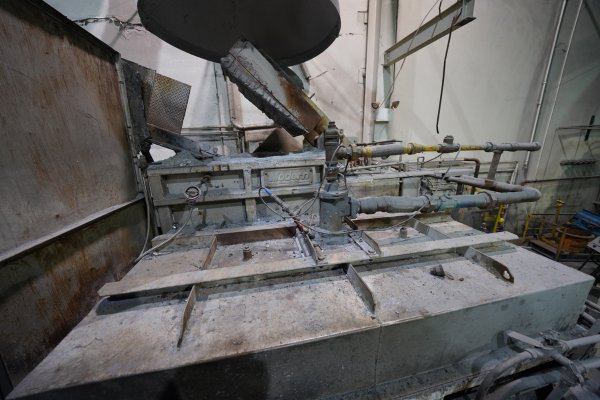

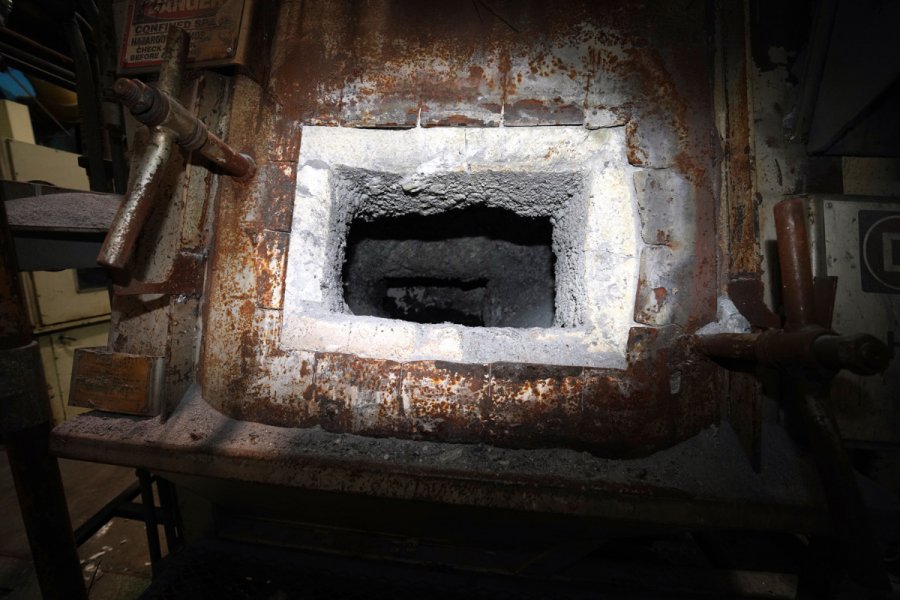

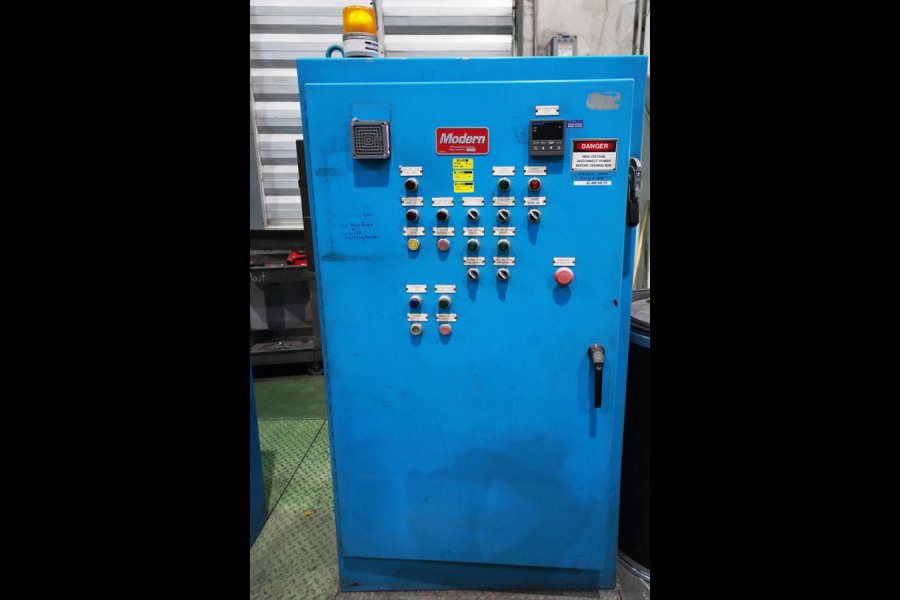

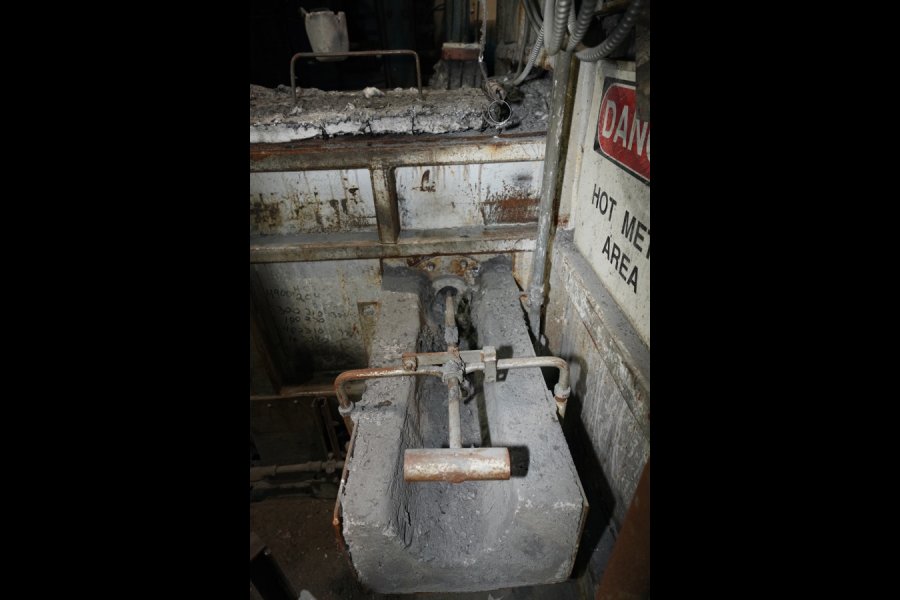

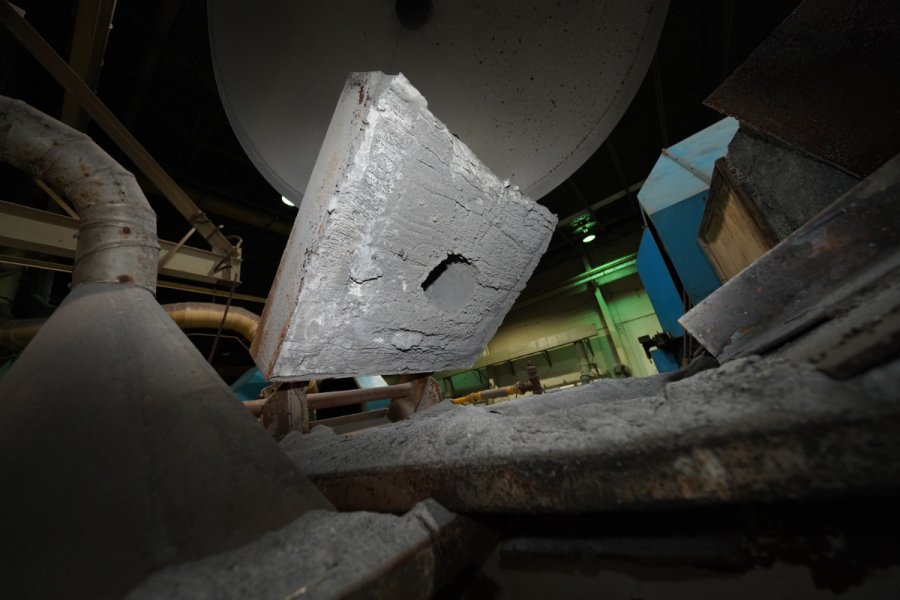

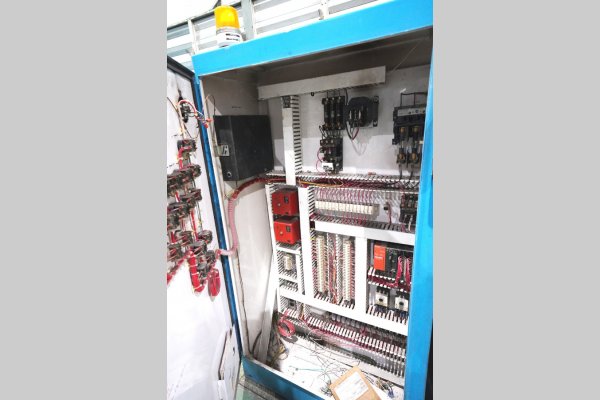

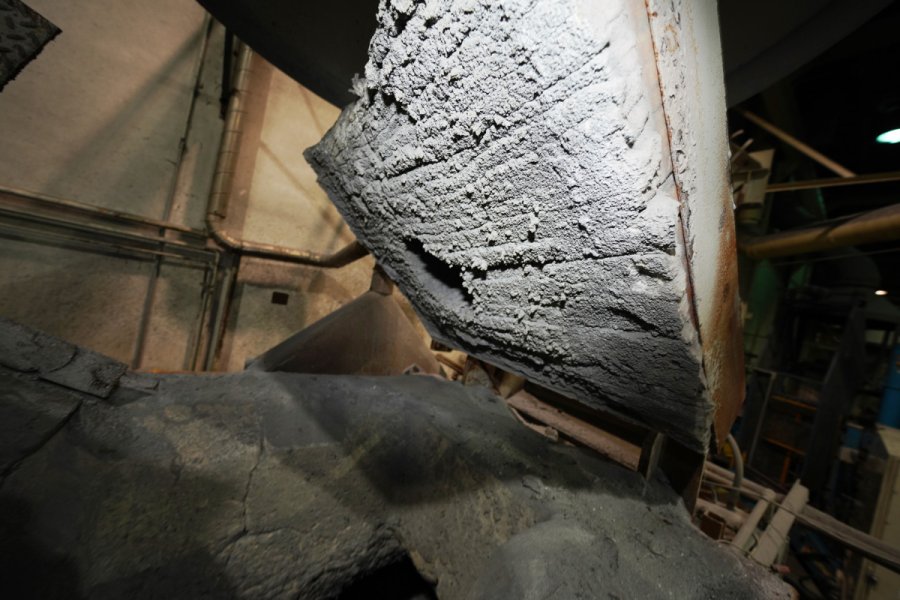

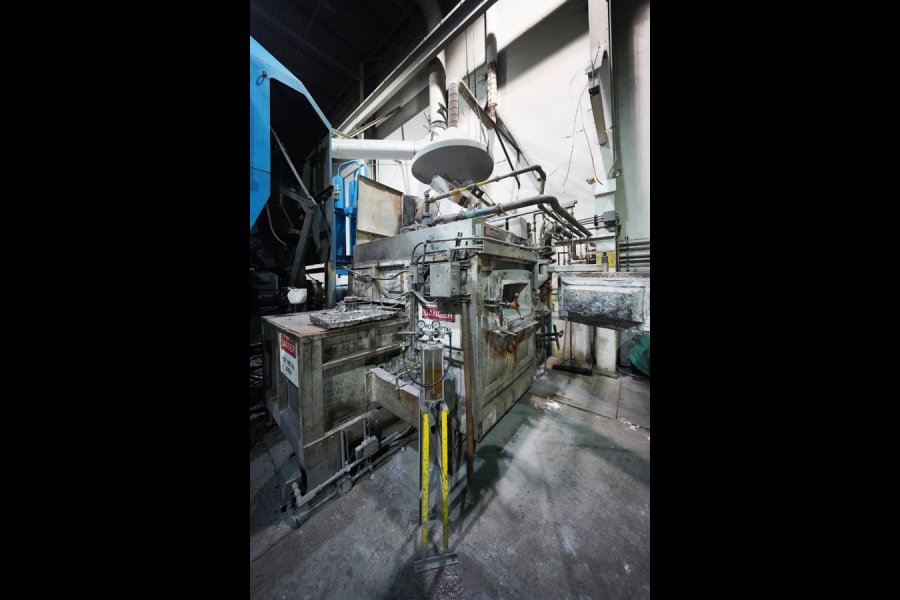

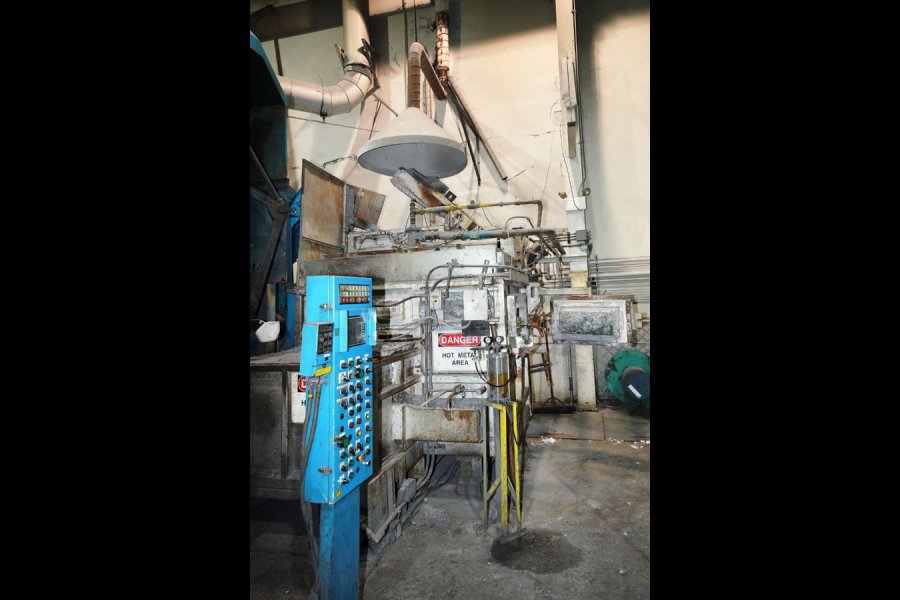

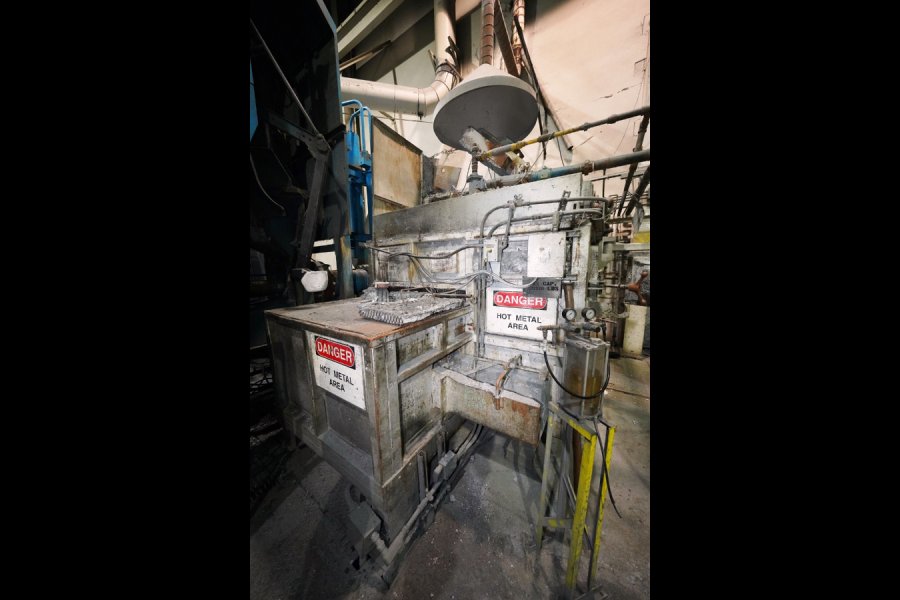

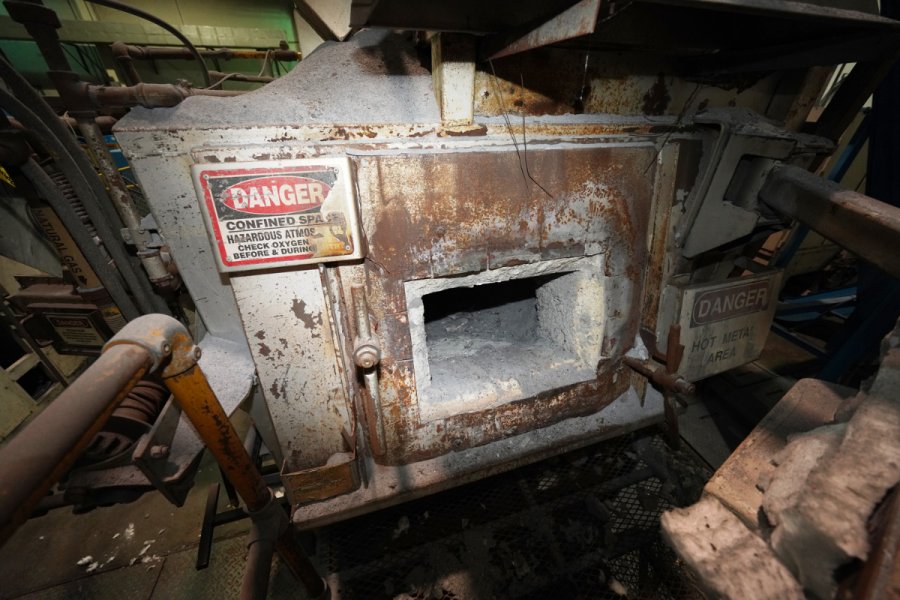

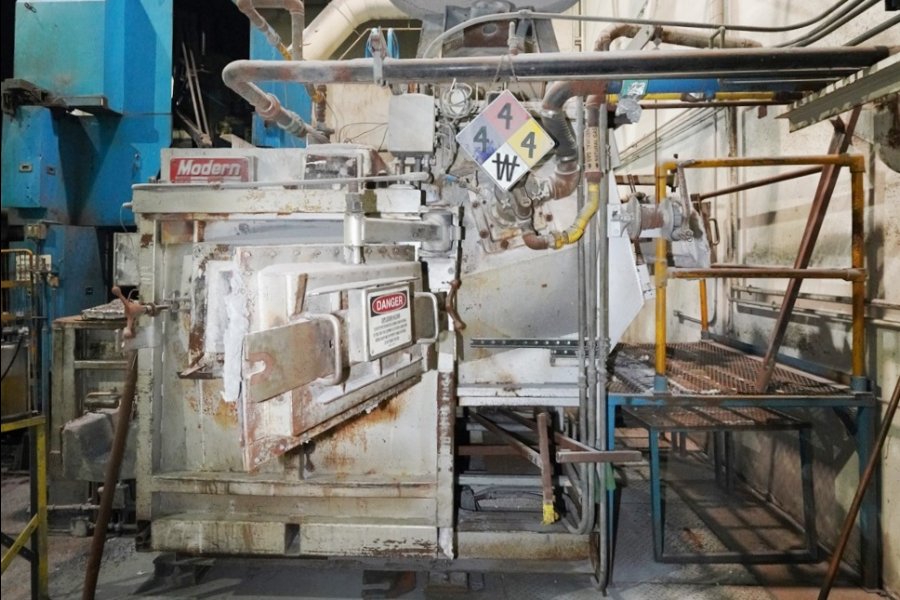

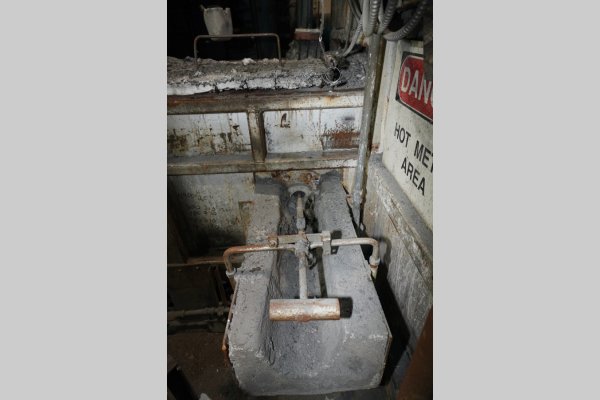

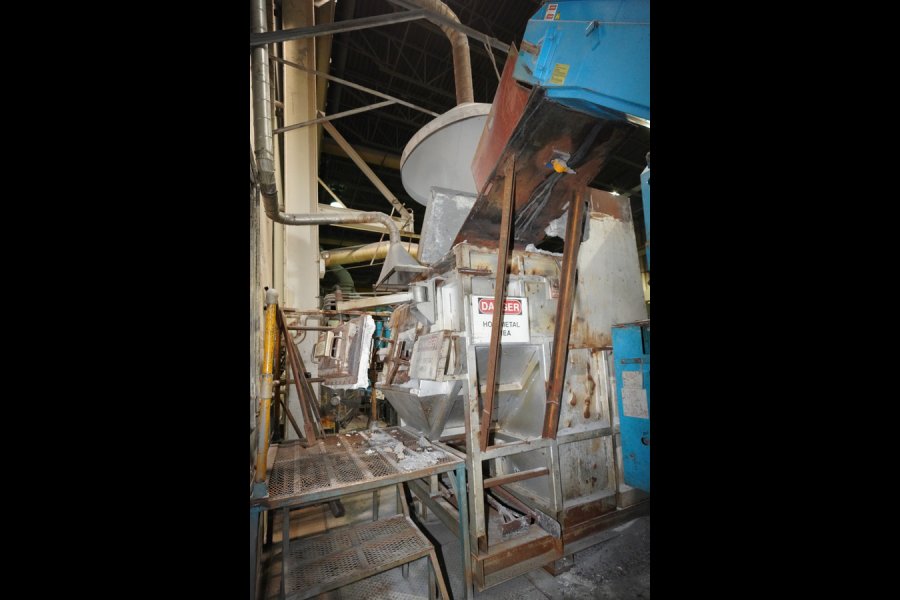

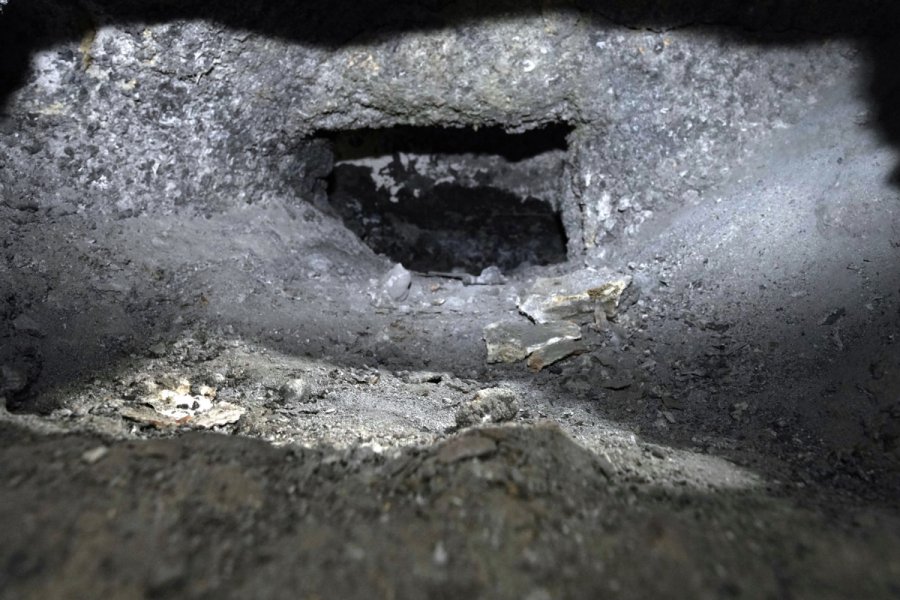

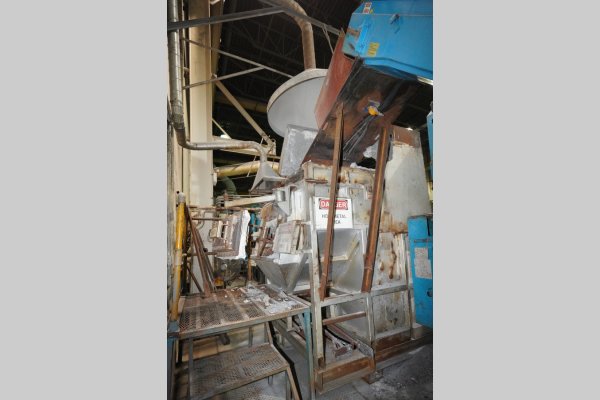

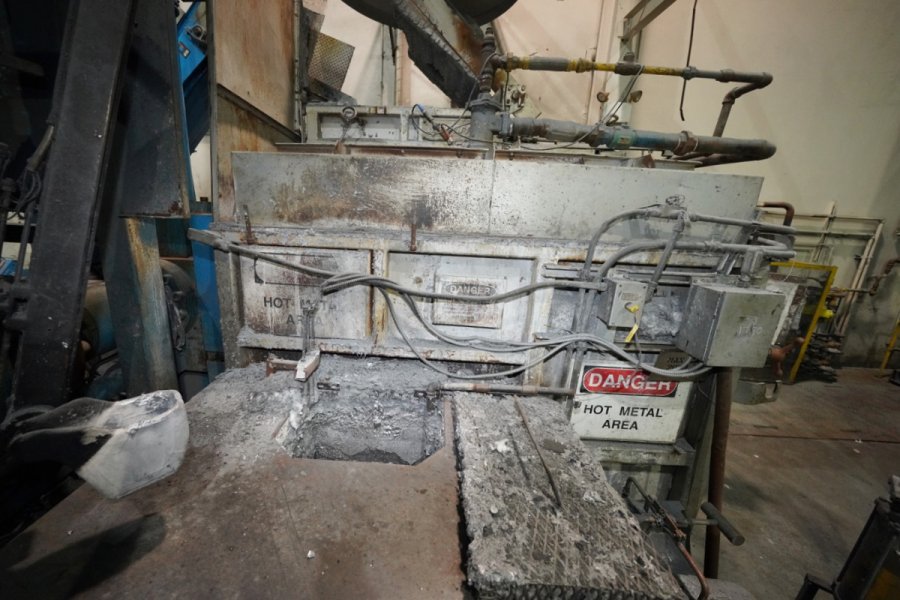

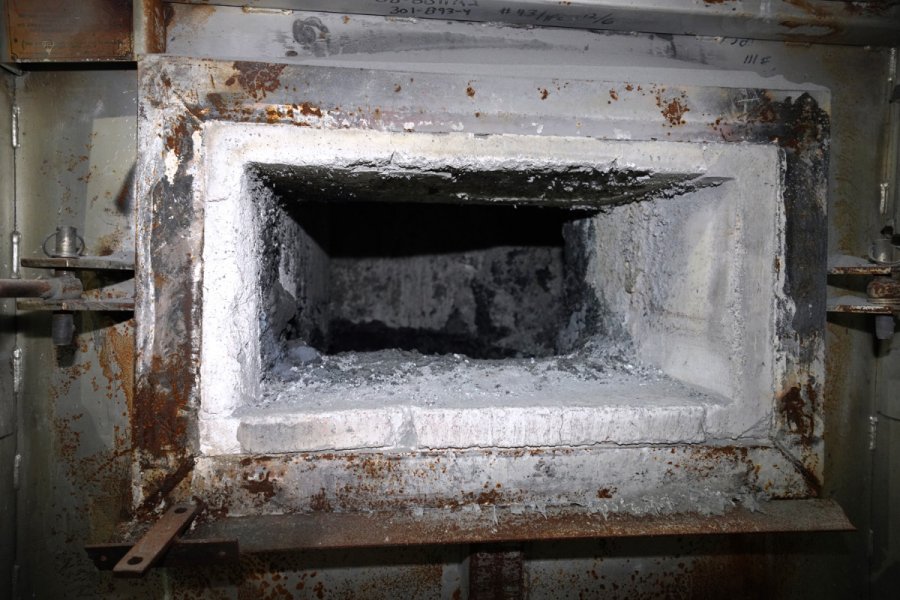

See jumbo large photos of this Modern Equipment AL-660 Jet Melter
