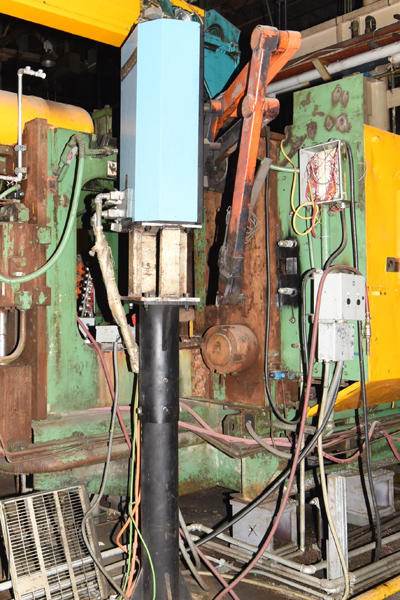

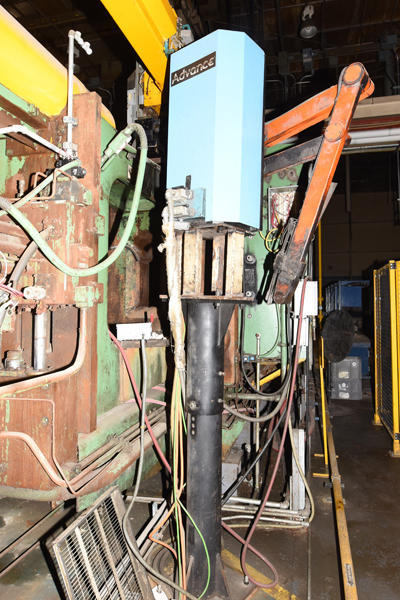

Used Advance Products Model: SL 1200 H 1200 SL Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:

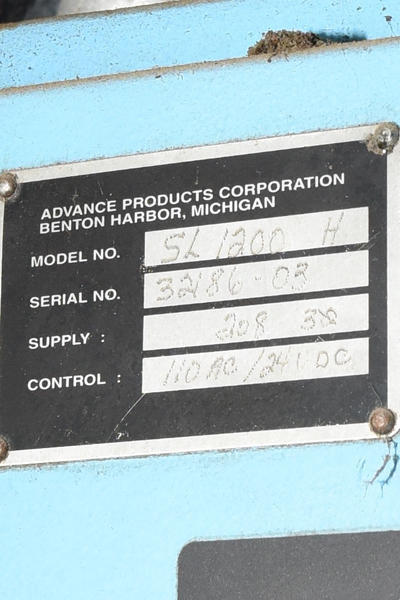

Manufacturer: Advance Products
Model: SL 1200 H
Size: 1200 SL
Inventory Number: DCM-4213
Used Advance Products Model: SL 1200 H 1200 SL Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations.
Features & Accessories:
- Auto Teach Mode
- Advance Forward on Pour Command - Pour Forward
- Helper Side Unit
- Adjust shot weight on the fly during operation

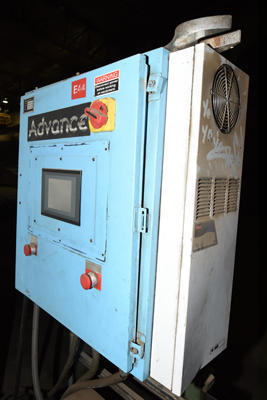

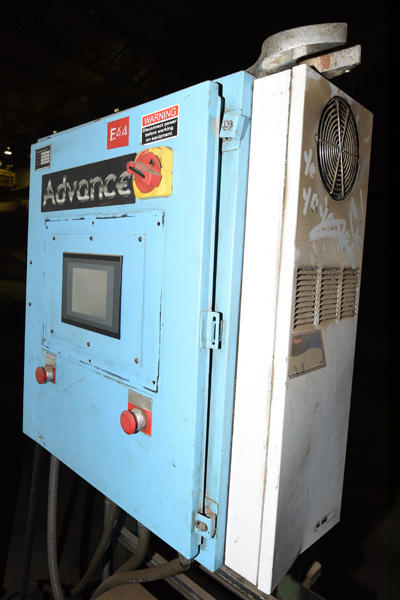

- LCD Color Touch-Screen HMI with up to 500 program storage

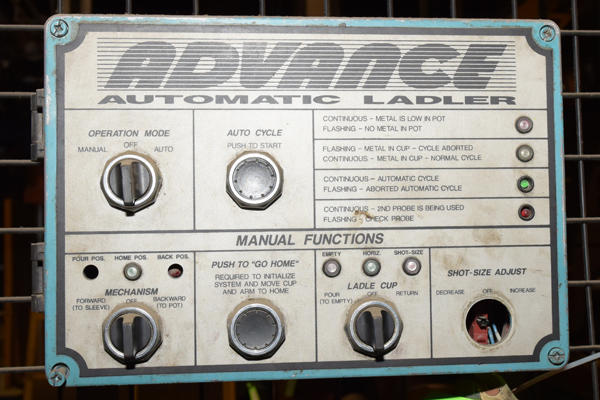

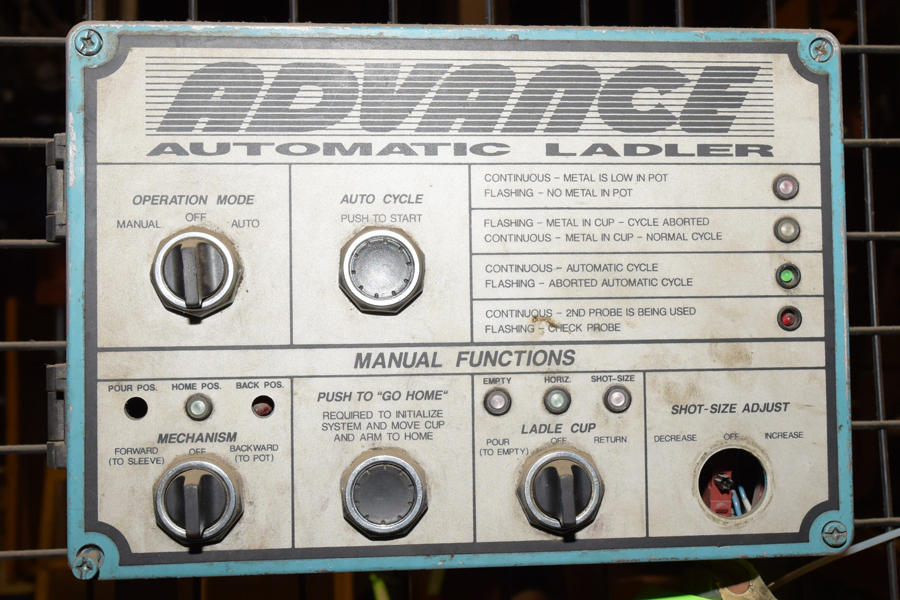

- Equipment with Remote Operator Push-Button Control Station
Item Specifications for DCM-4213
| Specifications | |
|---|---|
| Total Stroke (Maximum): |
Adjustable 71 inches
|
| Forward Stroke (Maximum): |
Adjustable 50 inches
|
| Reach Back: |
Adjustable 21 inches
|
| Pour Capacity (Aluminum): |
25 pounds
|
| Cycle Speed: |
Adjustable
|
| Power Requirements |
208-230/3/60 20 amp
|
| Motor Drive: |
Brushless Servo
|
| Side of Operation: |
Helper Side
|
| HMI Interface: |
Touch-Screen Color LCD
|
| Program Storage Capacity: |
500 programs
|
| Control Weight: |
250 pounds
|
| Mechanism Weight (power-head): |
750 pounds
|
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
| HPM II-900-A Cold Chamber Aluminum Die Casting Machine | |
| Metal Mechanics 40 Ton Four-Post Hydraulic Trim Press | |
| ABB 4400 Six Axis Foundry Robot for Parts Extracting | |
| Wollin PSM 3 Linear Die Sprayer |
Document(s) For This Machine
Description

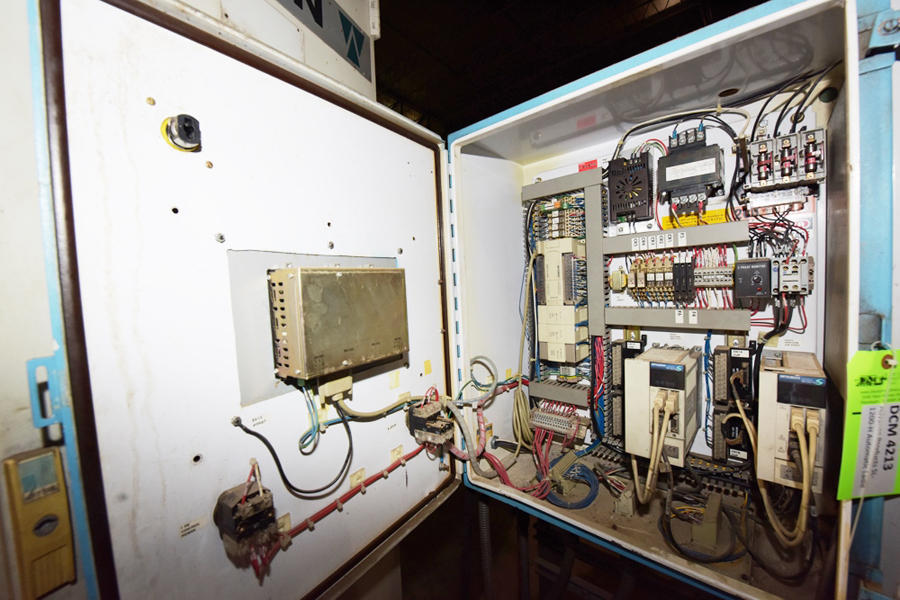

Used, Advance Products Model SL 1200 H 1200 SL Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations For_Sale, Features Include: Auto Teach Mode, Advance Forward on Pour Command - Pour Forward, Helper Side Unit, Adjust shot weight on the fly during operation, LCD Color Touch-Screen HMI with up to 500 program storage, Equipment with Remote Operator Push-Button Control Station, Mitsubishi controls, second Hand, DCM-4213
