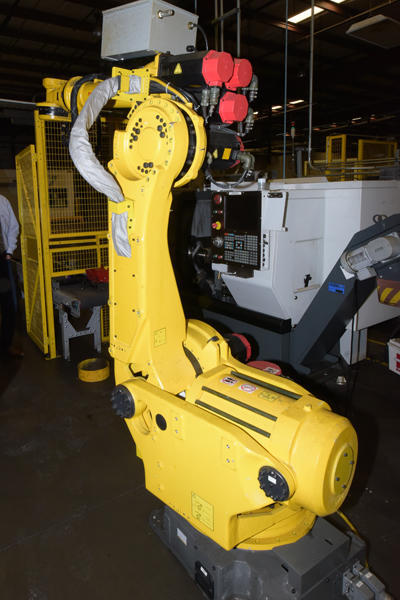

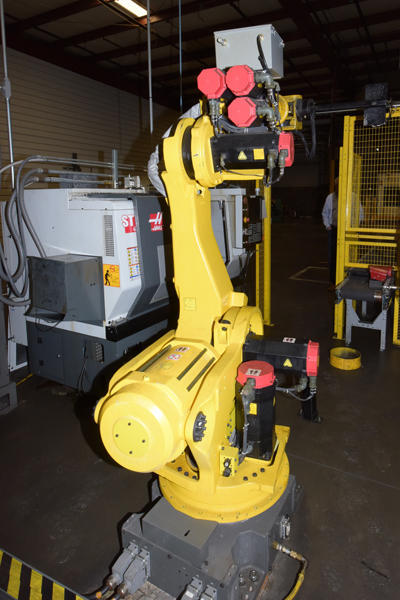

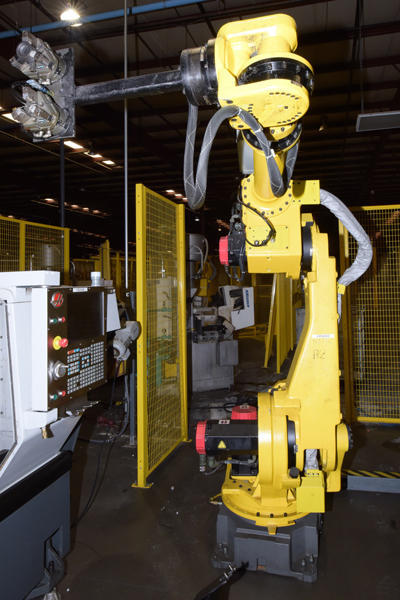

Used Fanuc Robotics Model: S-430iW S-430iW_165 KG Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings



Warning: Attempt to read property "phraseEN" on false in /home/diecastm/public_html/includes/diecast/class.language.php on line 326


Warning: Attempt to read property "phraseEN" on false in /home/diecastm/public_html/includes/diecast/class.language.php on line 326
:


Warning: Attempt to read property "phraseEN" on false in /home/diecastm/public_html/includes/diecast/class.language.php on line 326
:


Warning: Attempt to read property "phraseEN" on false in /home/diecastm/public_html/includes/diecast/class.language.php on line 326
: Fanuc Robotics

Model: S-430iW

Size: S-430iW_165 KG


Warning: Attempt to read property "phraseEN" on false in /home/diecastm/public_html/includes/diecast/class.language.php on line 326
:
DCM-4388

Used Fanuc Robotics Model: S-430iW S-430iW_165 KG Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings.


Warning: Attempt to read property "phraseEN" on false in /home/diecastm/public_html/includes/diecast/class.language.php on line 326

Features & Accessories:

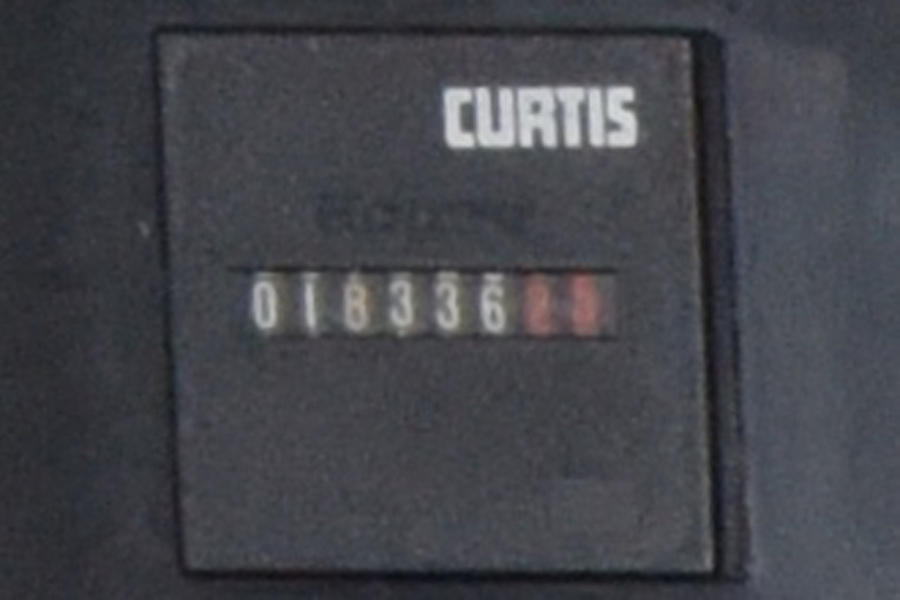

  • Only 18,336 Operational Hours

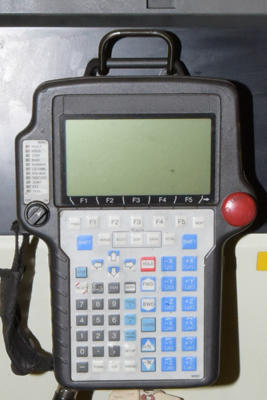

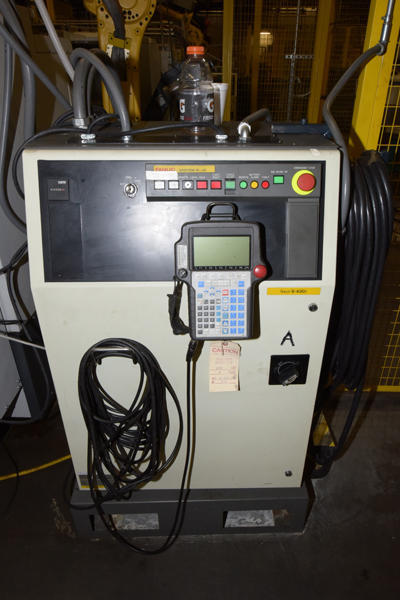

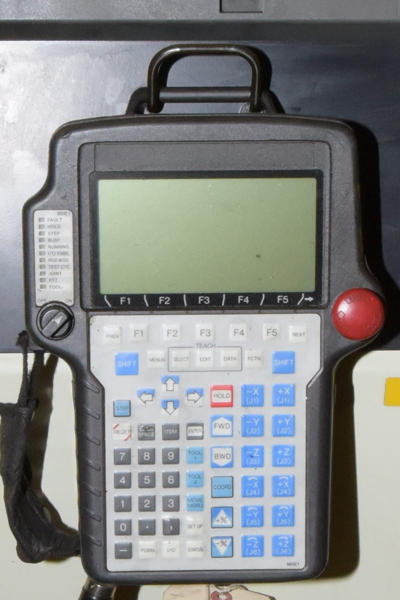

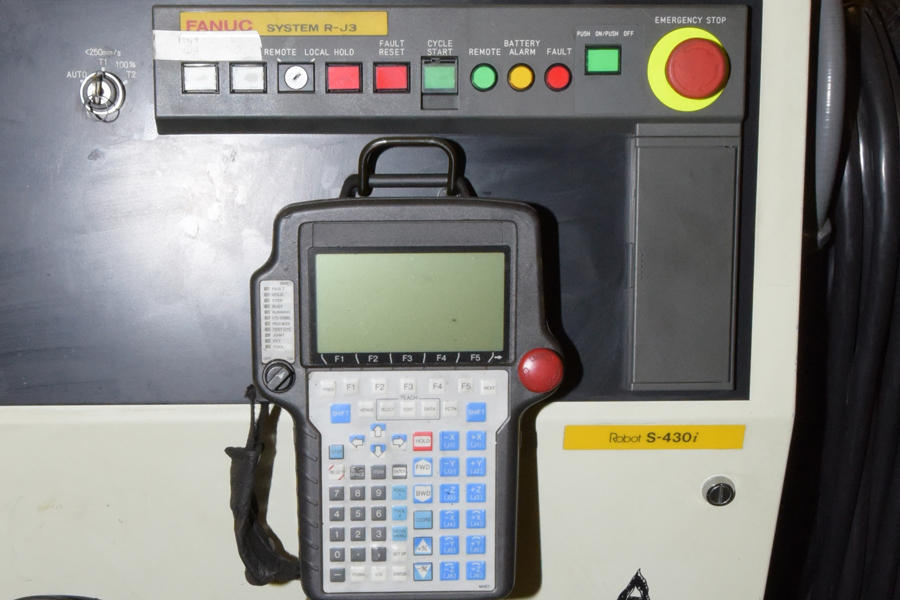

  • Well Proven Fanuc RJ3 Controller
  • High Positioning Speeds and Accuracy
  • Heavy Load Capacity
  • Thin Arm Design Facilitates Reaching into Die Areas for part Load and Unload
  • Precision gear drives for axes J5 and J6
  • Common Applications: CNC load/unload, Trim Press Load/Unload, Palletizing, Part Transfer, Machine Tending, Insert Loading

Warning: Attempt to read property "phraseEN" on false in /home/diecastm/public_html/includes/diecast/class.language.php on line 326


Warning: Attempt to read property "phraseEN" on false in /home/diecastm/public_html/includes/diecast/class.language.php on line 326


Warning: Attempt to read property "phraseEN" on false in /home/diecastm/public_html/includes/diecast/class.language.php on line 326
DCM-4388


Warning: Attempt to read property "phraseEN" on false in /home/diecastm/public_html/includes/diecast/class.language.php on line 326
Number of Axis:
6
Payload Capacity:
363 pounds
Control:
RJ3
Repeatability:
+/- .0012 inches
Horizontal Reach:
104.05 inches
Axis 1/J-1 Robot Motion Range/Speed:
+/- 180 degrees/105 ° second
Axis 2/J-2 Robot Motion Range/Speed:
+75 degrees, -59 degrees/105 ° second
Axis 3/J-3 Robot Motion Range/Speed:
+229 degrees, -133 degrees/105 ° second
Axis 4/J-4 Robot Motion Range/Speed:
+/- 360 degrees/130 ° second
Axis 5/J-5 Robot Motion Range/Speed:
+/- 125 degrees/130 ° second
Axis 6/J-6 Robot Motion Range/Speed:
+/- 360 degrees/210 ° second
Weight:
2,860 pounds


Warning: Attempt to read property "phraseEN" on false in /home/diecastm/public_html/includes/diecast/class.language.php on line 326

Description

Used, Fanuc Robotics Model S-430iW S-430iW_165 KG Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings For_Sale, Features Include: Well Proven Fanuc RJ3 Controller, High Positioning Speeds and Accuracy, Heavy Load Capacity, Thin Arm Design Facilitates Reaching into Die Areas for part Load and Unload, Precision gear drives for axes J5 and J6, Common Applications: CNC load/unload, Trim Press Load/Unload, Palletizing, Part Transfer, Machine Tending, Insert Loading, RJ3 controls, second Hand, DCM-4388
