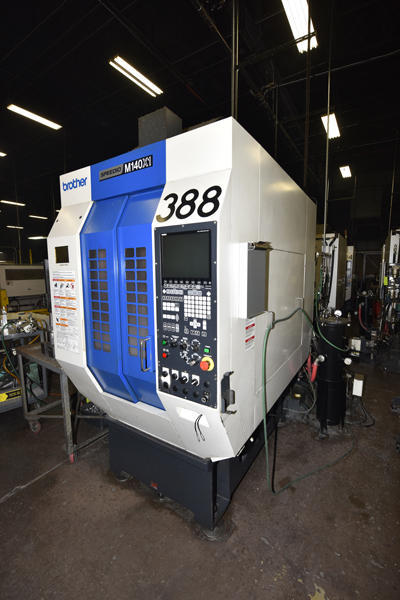

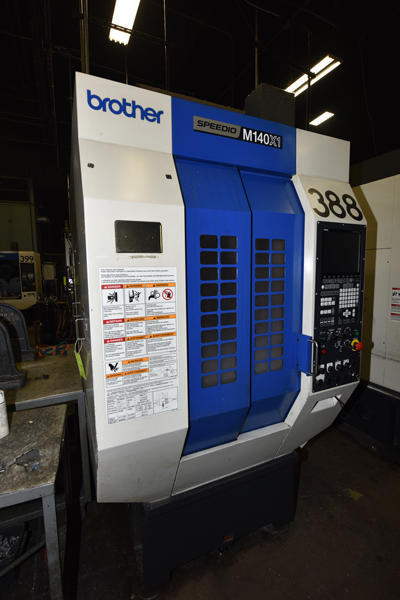

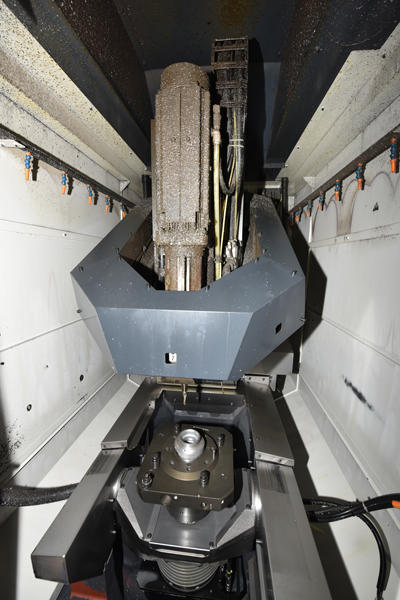

Used Brother Model: Speedio M140X1 five axis trunnion type machining center 140 200 x 440 x 305 mm x-y-z axis travel with +5 to -95 degree A axis tilt and 2000 RPM C rotary axis Full 5 Axis CNC High Speed Trunnion Type Machining Centers
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Brother
Model: Speedio M140X1 five axis trunnion type machining center
Size: 140 200 x 440 x 305 mm x-y-z axis travel with +5 to -95 degree A axis tilt and 2000 RPM C rotary axis
Inventory Number: DCM-4560
Used Brother Model: Speedio M140X1 five axis trunnion type machining center 140 200 x 440 x 305 mm x-y-z axis travel with +5 to -95 degree A axis tilt and 2000 RPM C rotary axis Full 5 Axis CNC High Speed Trunnion Type Machining Centers.
Features & Accessories:

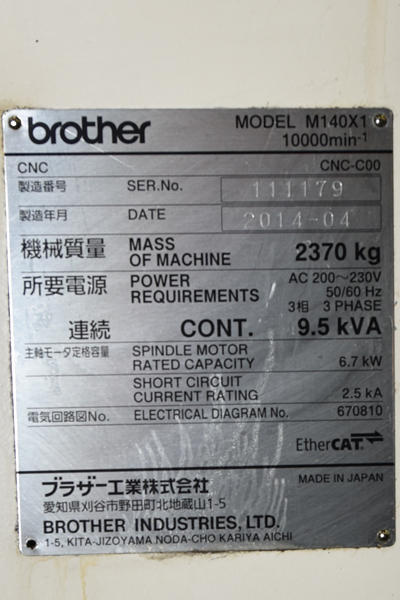

- New in May, 2014, Serial Number 111179
- Brother CNC-C00 Full Simultaneously Five Axis Control; Simultaneously controlled axes; Positioning: 5axes ( X,Y,Z,A,C); Interpolation: Linear 4 axes (X,Y,Z,C) Circular 2 axes Helical/conical : 3 axes( X,Y,Z )
- 2,000 RPM C-Axis Spindle allows you to Mill and turn parts in one set-up on five surfaces

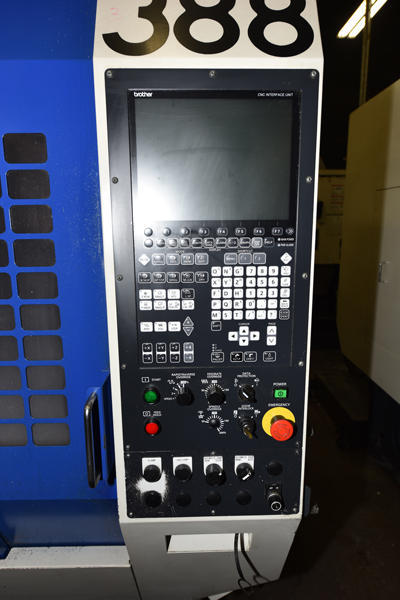

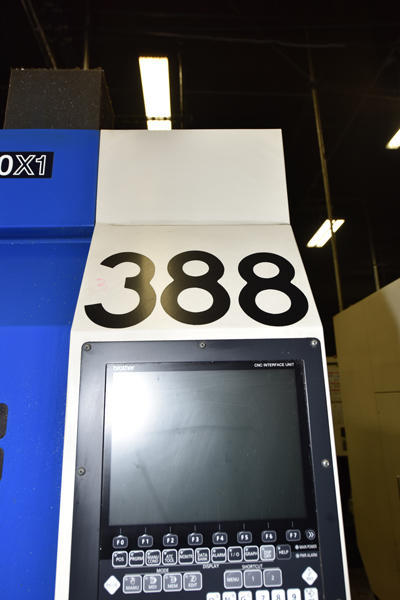

- 12.1 Inch Color LCD Monitor
- 55 Standard NC Functions Available

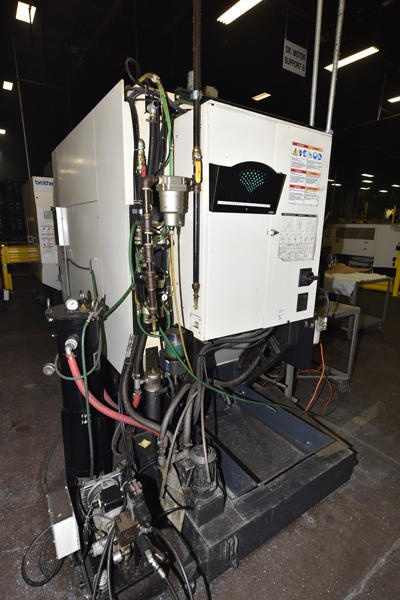

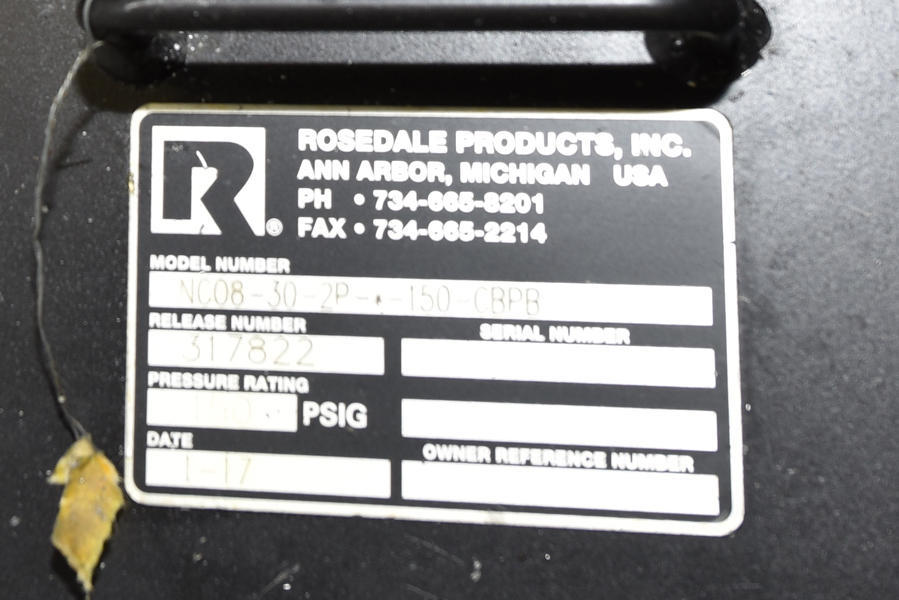

- Rosedale Products, Inc External Coolant Filtering System
- Used only to Machine Aluminum Die Castings; ADC #388
Item Specifications for DCM-4560
| Specifications | |
|---|---|
| Main Spindle Power/Maximum Spindle Speed/Taper: |
13/5 hp/10,500 rpm/BT 30
|
| C-Axis Spindle Power/Maximum Speed: |
5.6 hp/2,000 rpm
|
| Table Size (diameter)/Work Load: |
140 mm/40 kg
|
| X-Axis Travel & Feedrate: |
7.9 inch/1,969 inches per minute
|
| Y-Axis Travel & Feedrate: |
17.3 inch/1,969 inches per minute
|
| Z-Axis Travel & Feedrate: |
12 inches/1,969 inches per minute
|
| A Axis (tilt): |
+5 to -95 degrees
|
| C Axis (turning spindle): |
360 degrees
|
| Automatic Tool Changer (ATC) Storage: |
22 tools
|
| Maximum Tool Length x Diameter x weight: |
200 x 80 mm x 3 kg
|
| Tool Change Time, Tool to Tool/Chip to Chip: |
0.9/1.3 Seconds
|
| Overall Dimensions (L x D x H) (included chip conveyor): |
50 x 144 x 98.9 inches
|
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Document(s) For This Machine
Description
Used, Brother Model Speedio M140X1 five axis trunnion type machining center 140 200 x 440 x 305 mm x-y-z axis travel with +5 to -95 degree A axis tilt and 2000 RPM C rotary axis Full 5 Axis CNC High Speed Trunnion Type Machining Centers For_Sale, Features Include: Brother CNC-C00 Full Simultaneously Five Axis Control; Simultaneously controlled axes; Positioning: 5axes ( X,Y,Z,A,C); Interpolation: Linear 4 axes (X,Y,Z,C) Circular 2 axes Helical/conical : 3 axes( X,Y,Z ), 2,000 RPM C-Axis Spindle allows you to Mill and turn parts in one set-up on five surfaces, 12.1 Inch Color LCD Monitor, 55 Standard NC Functions Available, Rosedale Products, Inc External Coolant Filtering System, Used only to Machine Aluminum Die Castings; ADC #388, Brother CNC-C00 controls, second Hand, DCM-4560
