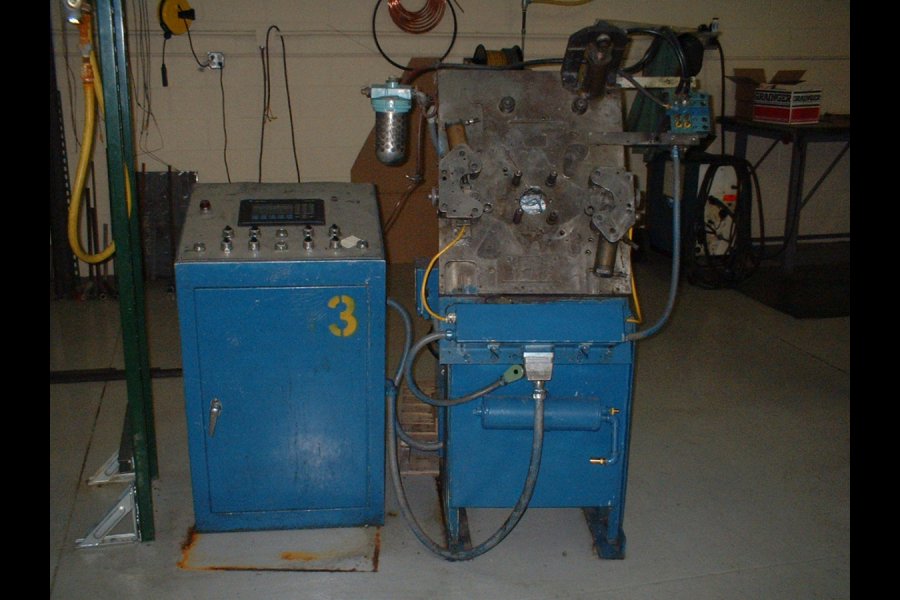

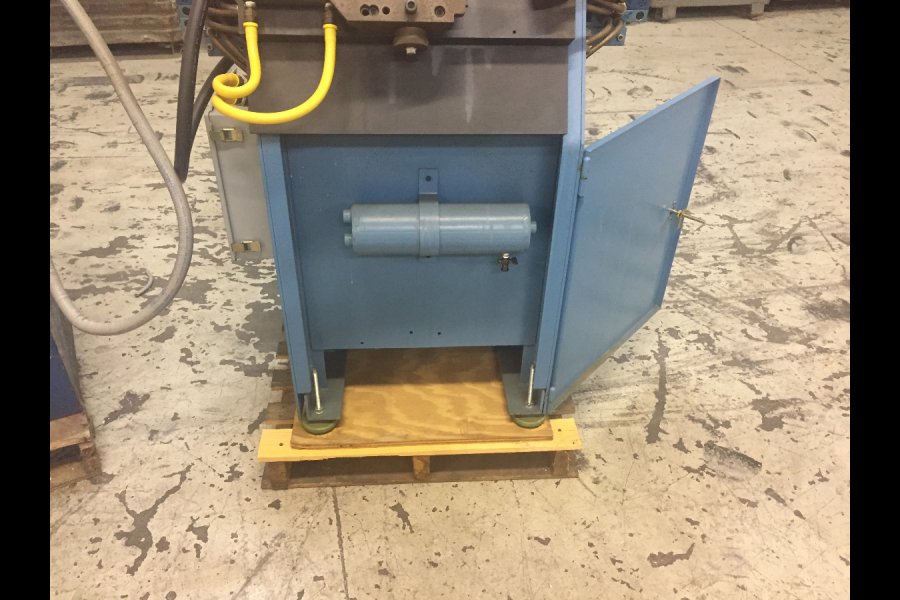

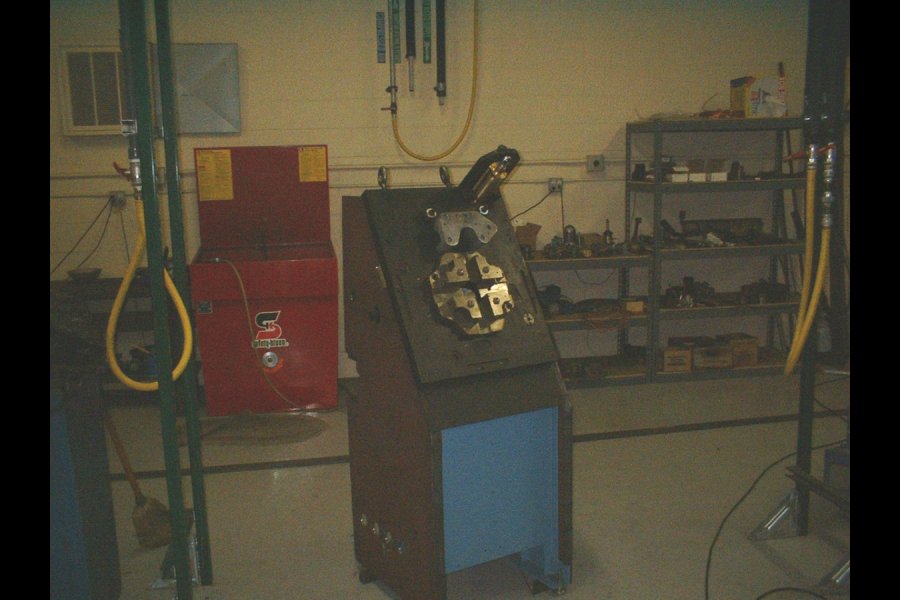

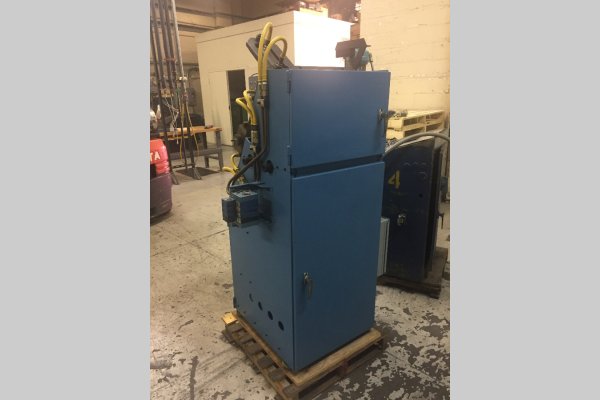

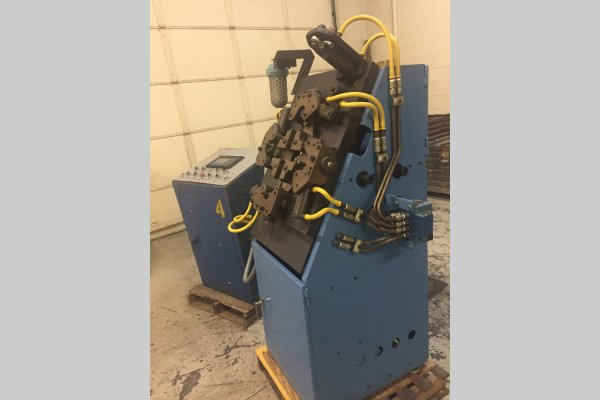

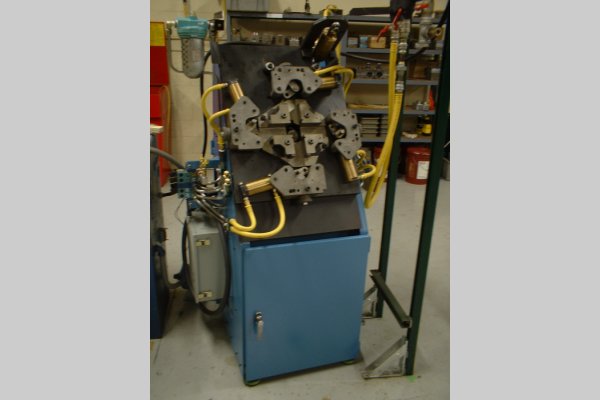

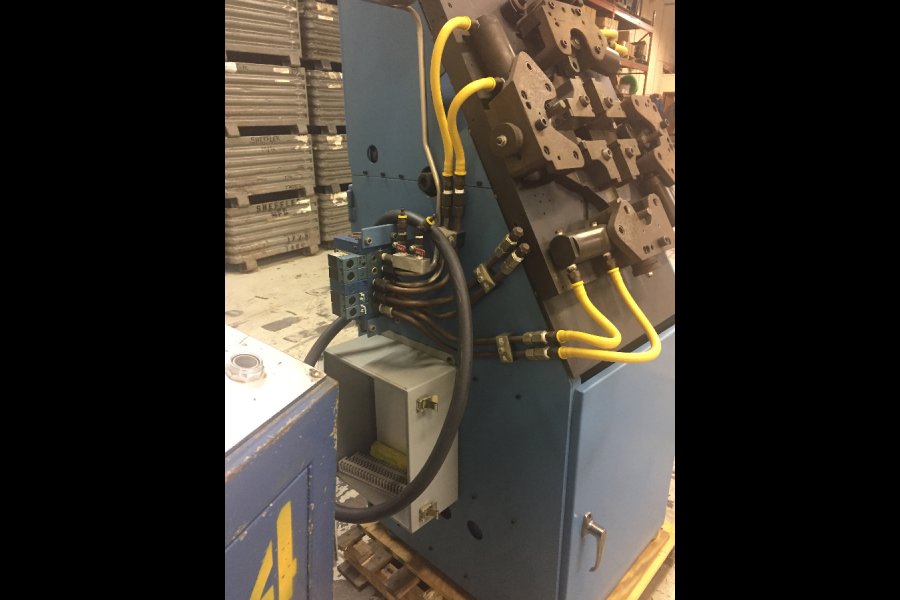

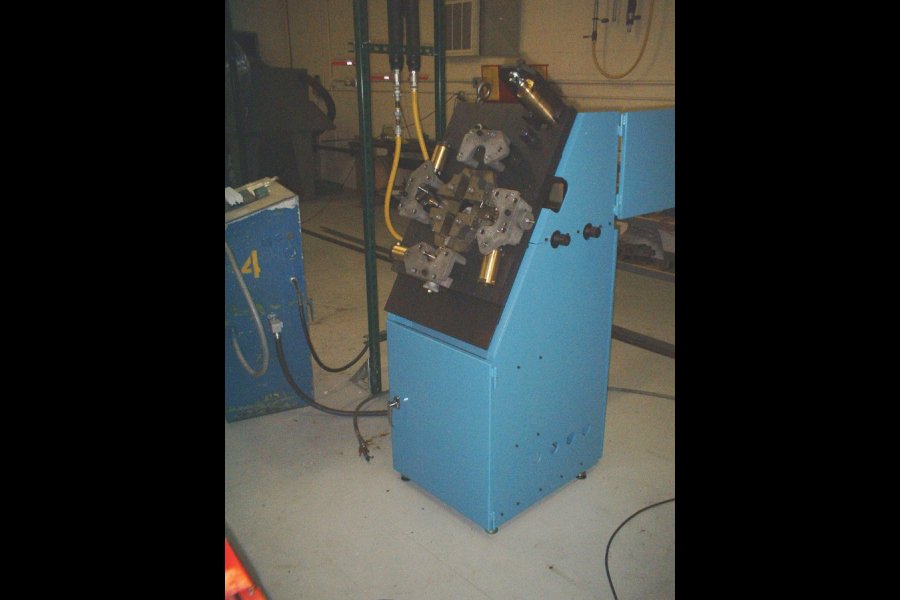

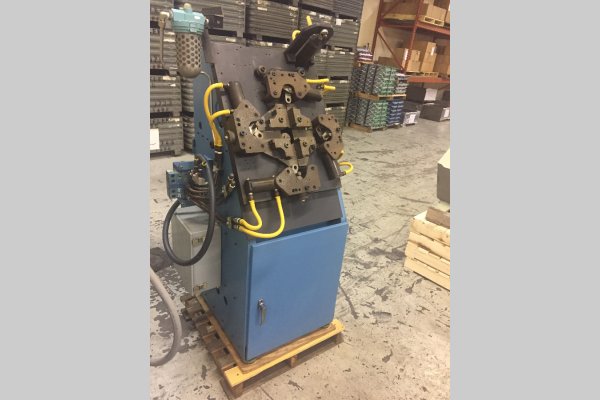

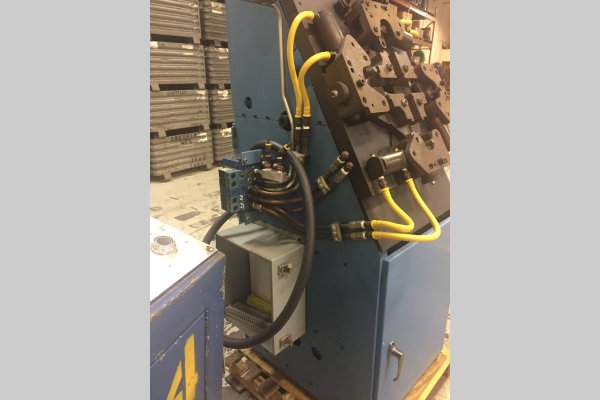

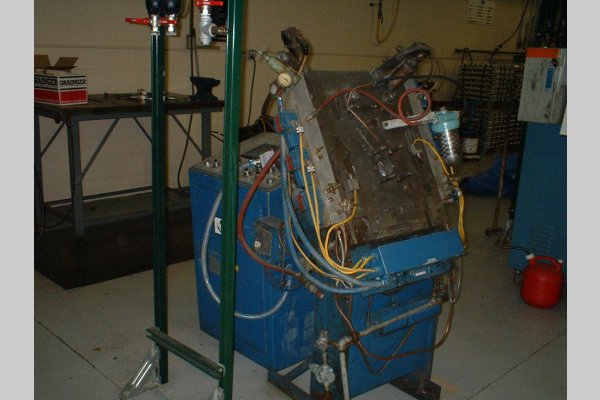

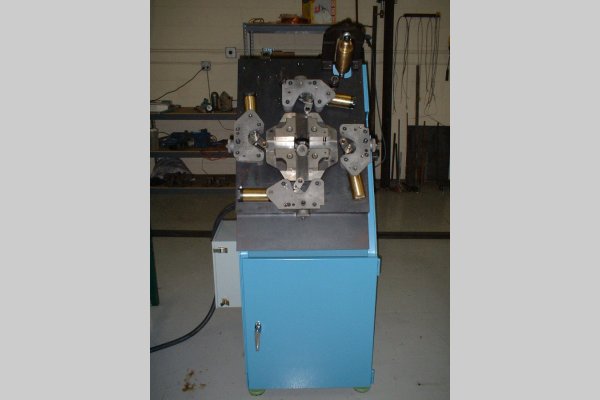

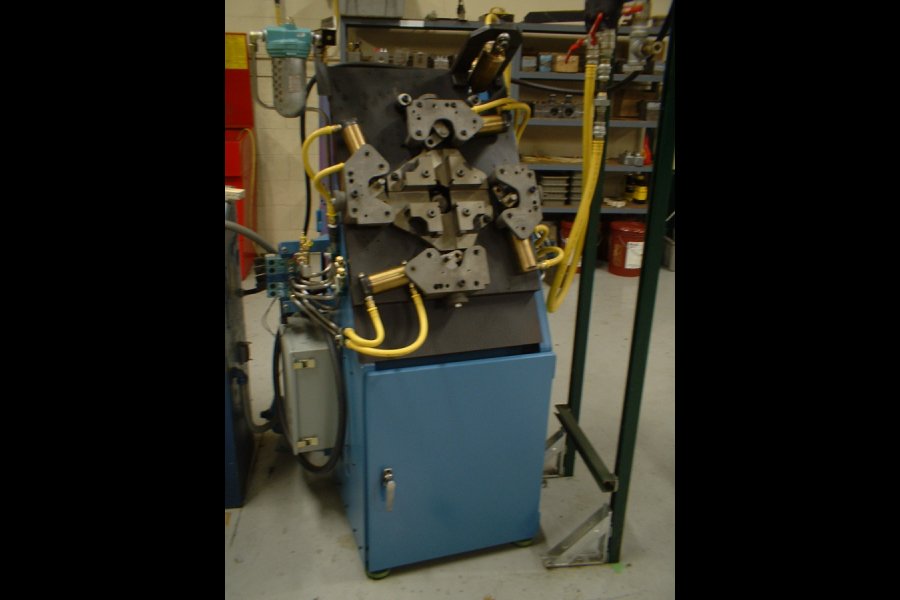

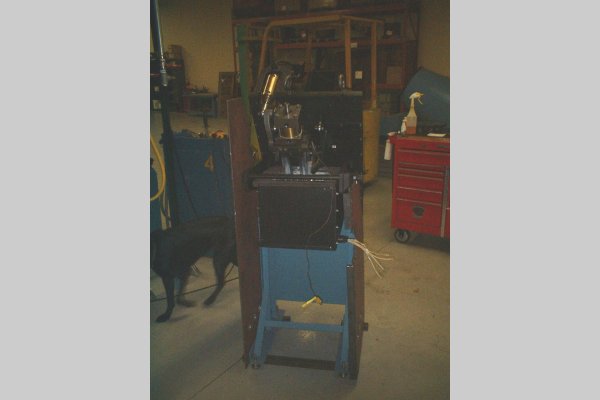

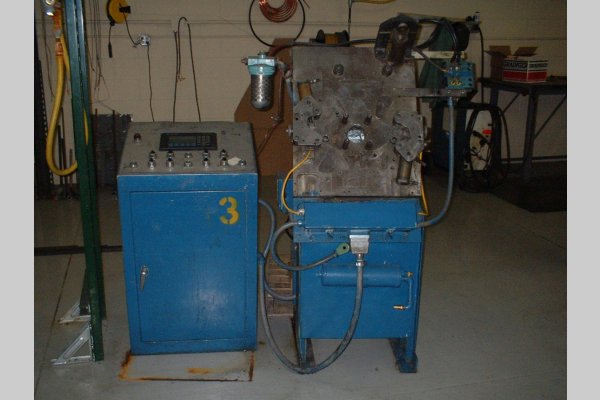

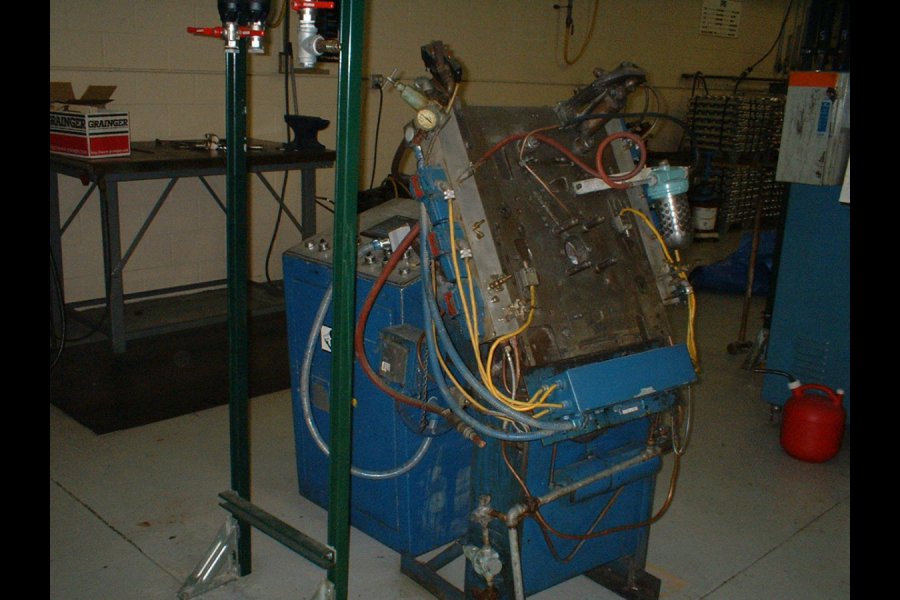

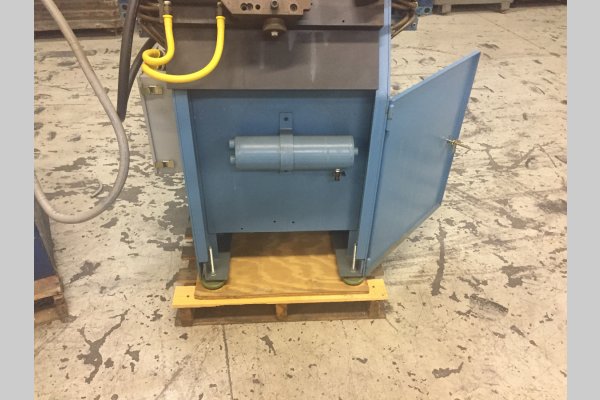

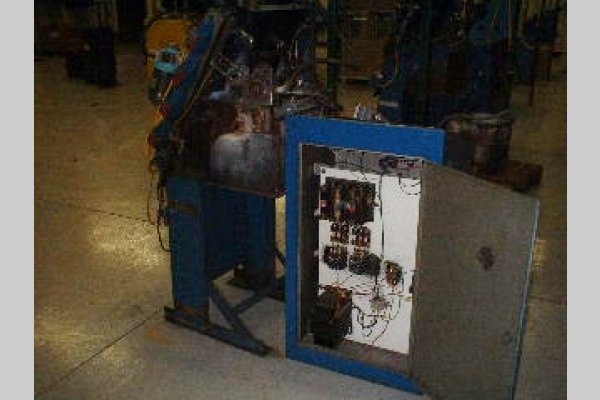

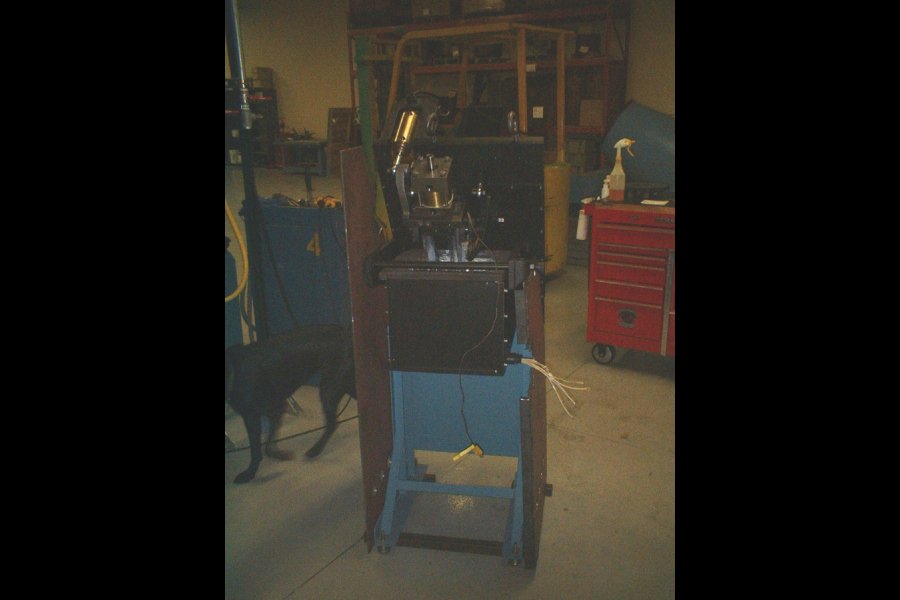

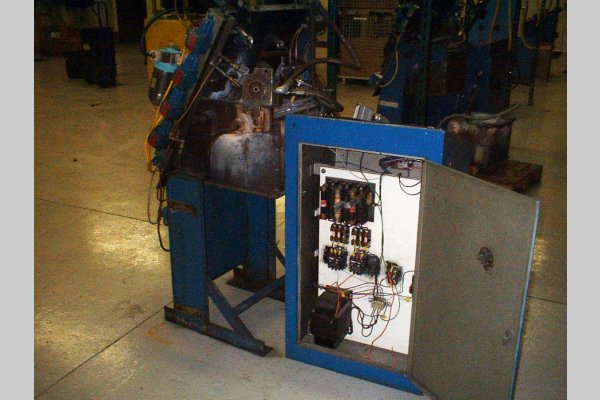

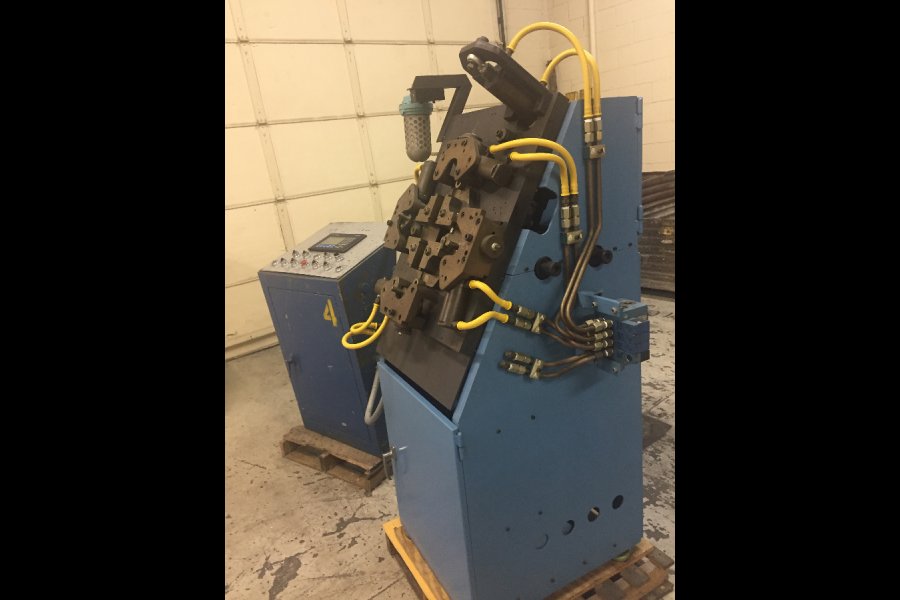

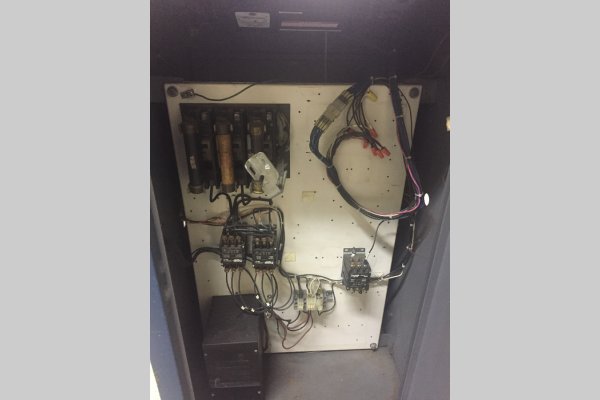

Used Dynacast Model: A2 22 Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Dynacast
Model: A2
Size: 22
Inventory Number: DCM-5011
Used Dynacast Model: A2 22 Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine.
Features & Accessories:

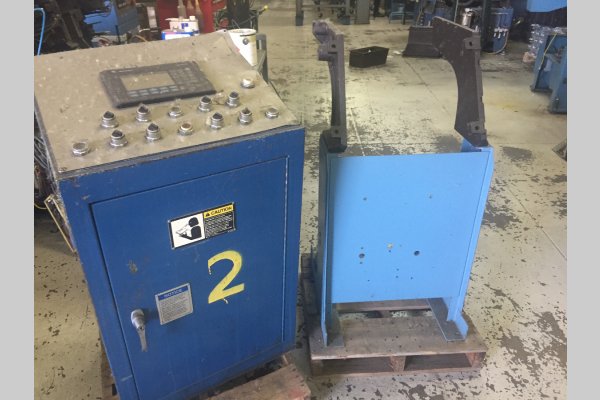

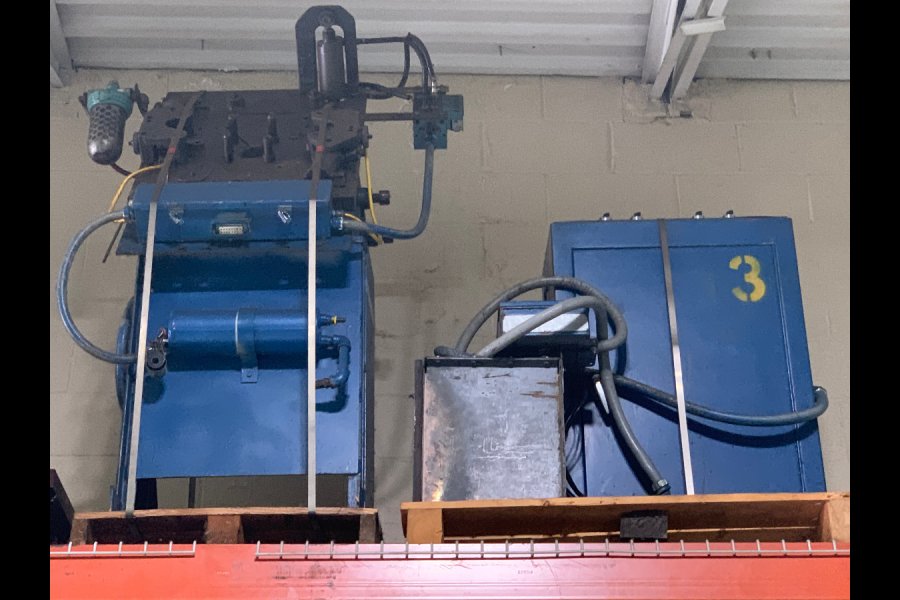

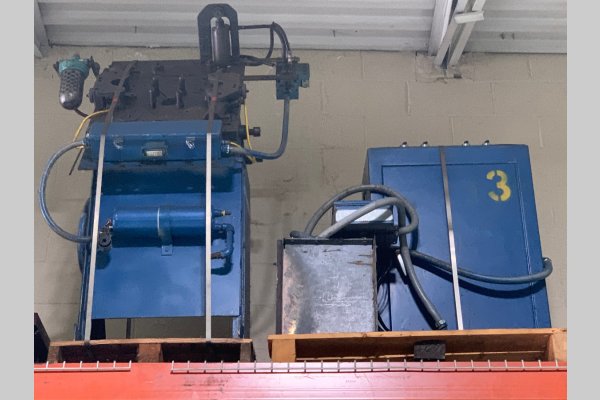

- One (1) Lot of Four (4) Used Dynacast Machines for Parts or for Rebuild

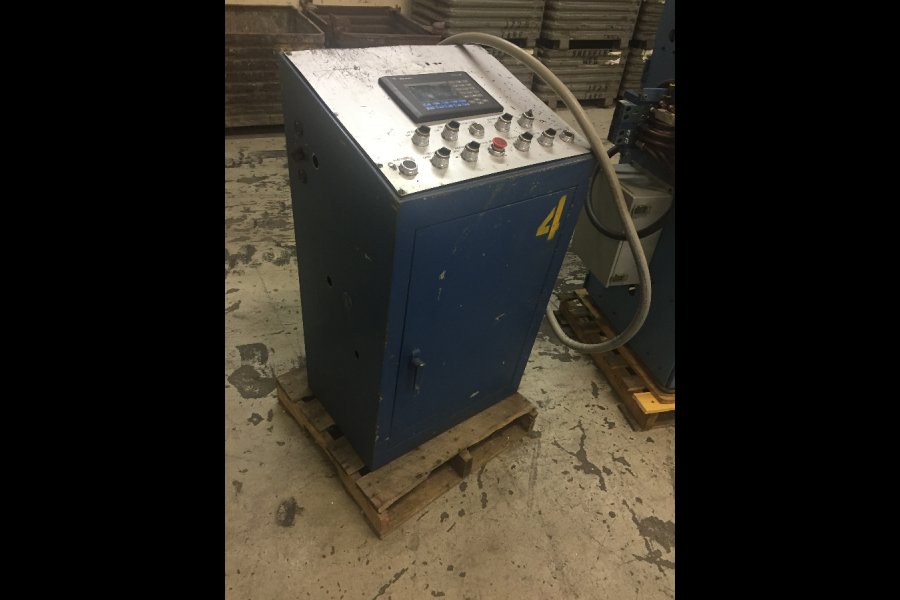

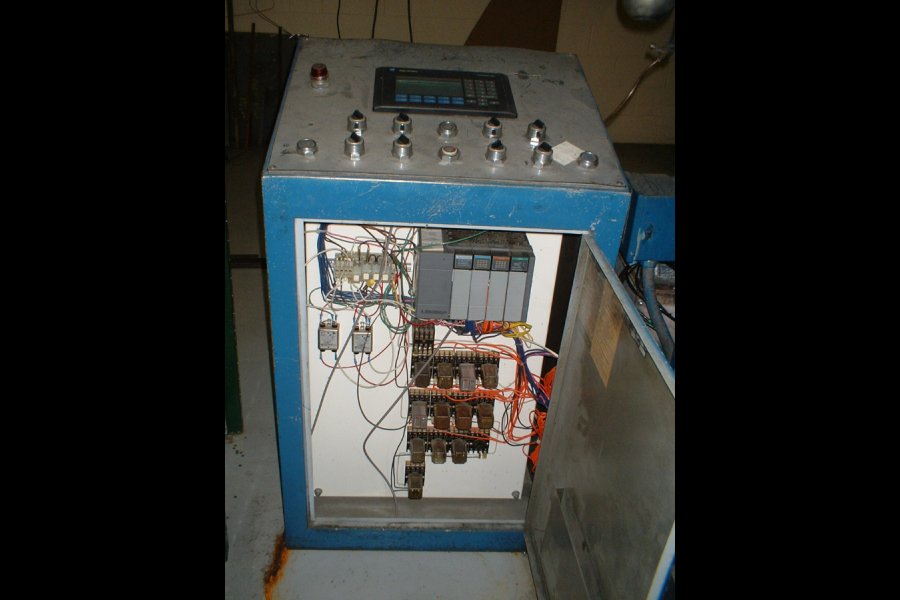

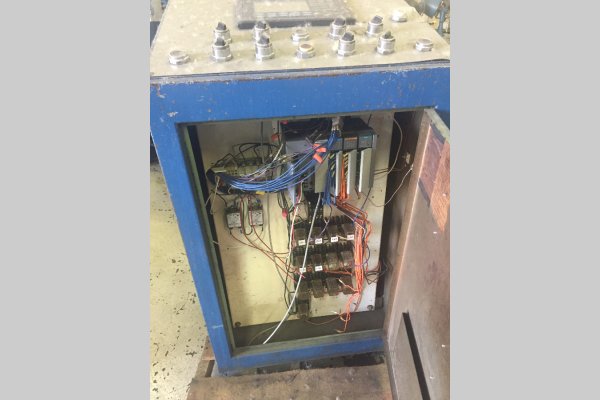

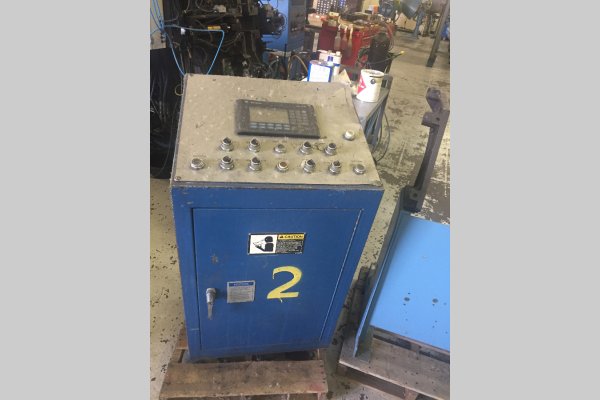

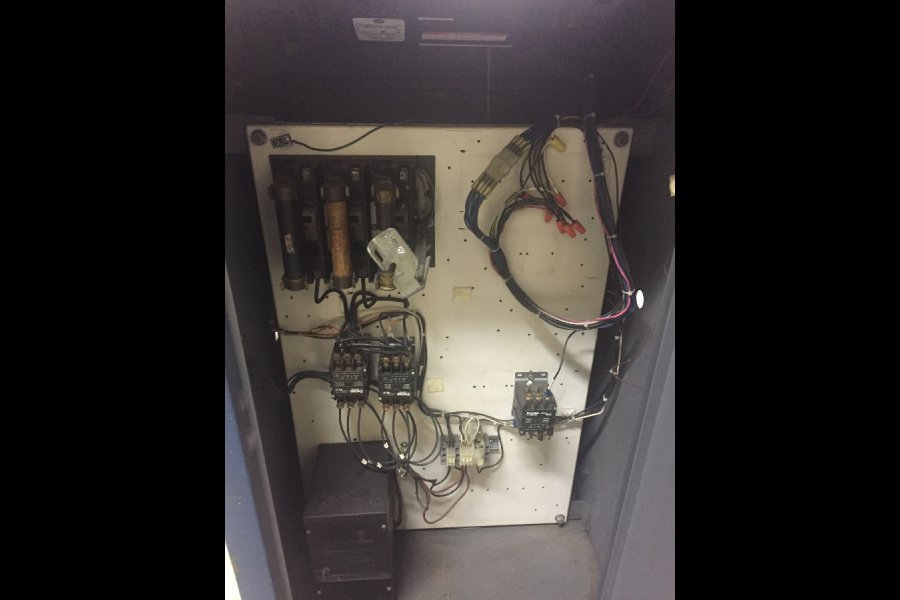

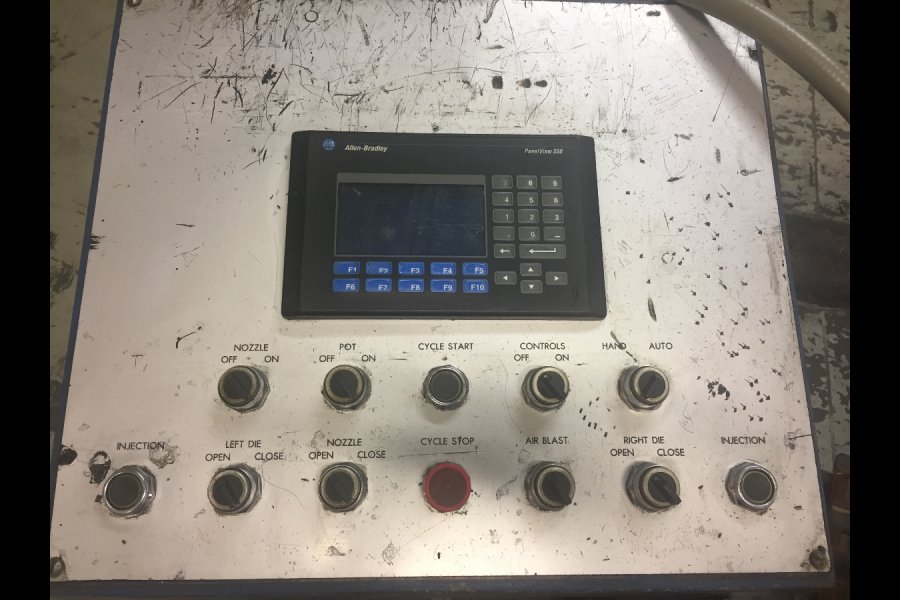

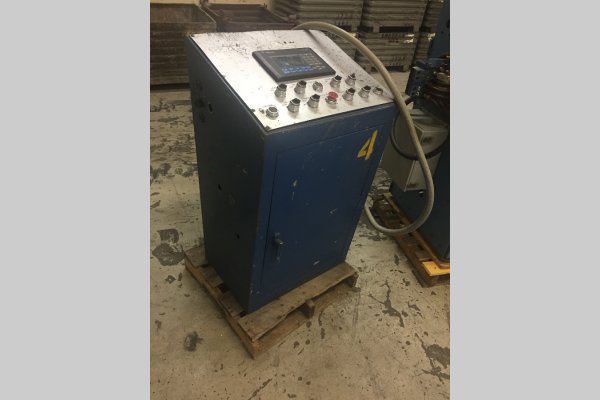

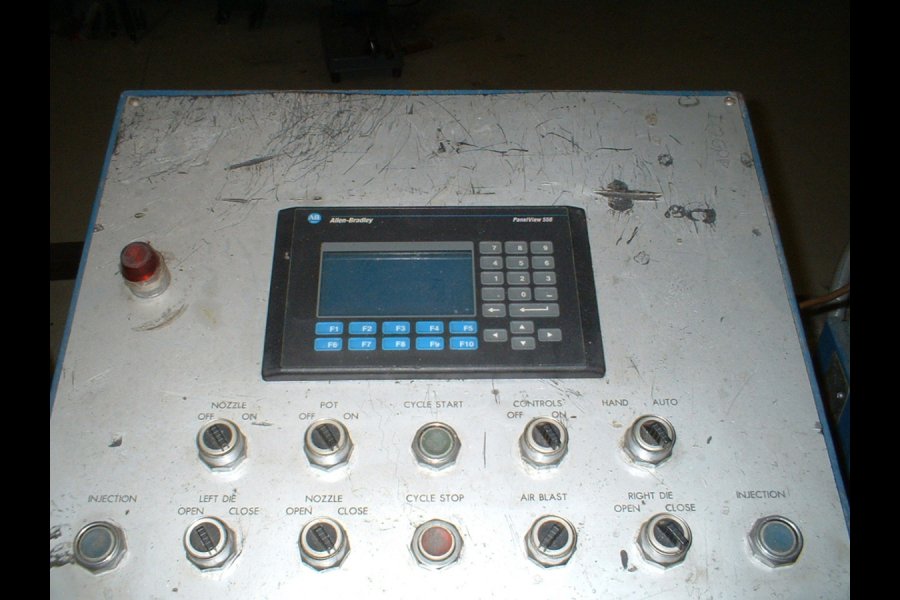

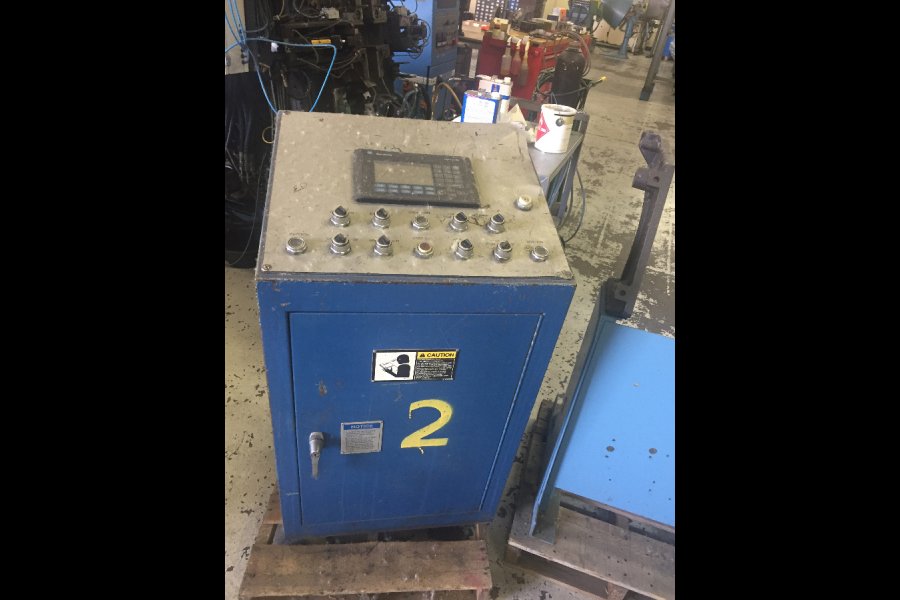

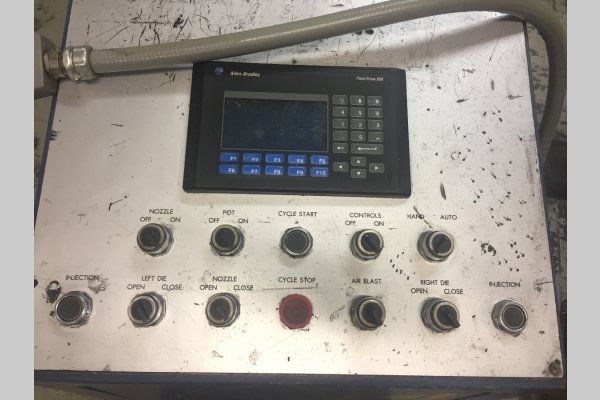

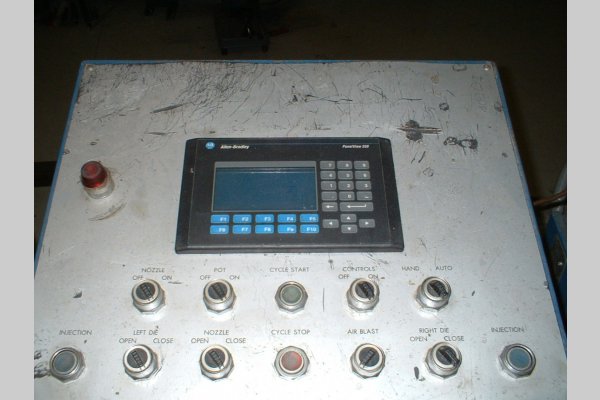

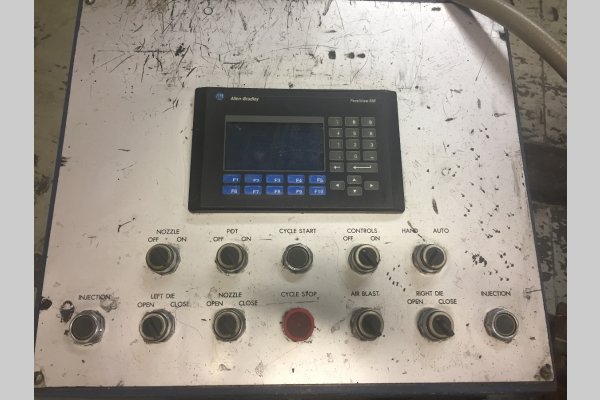

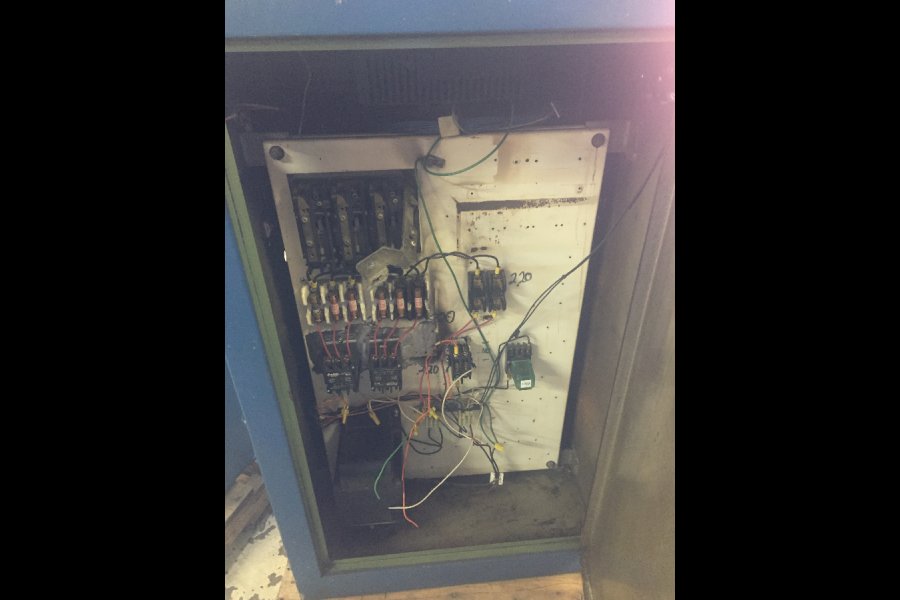

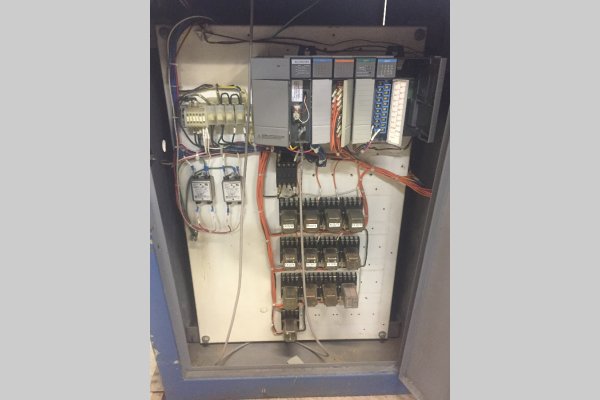

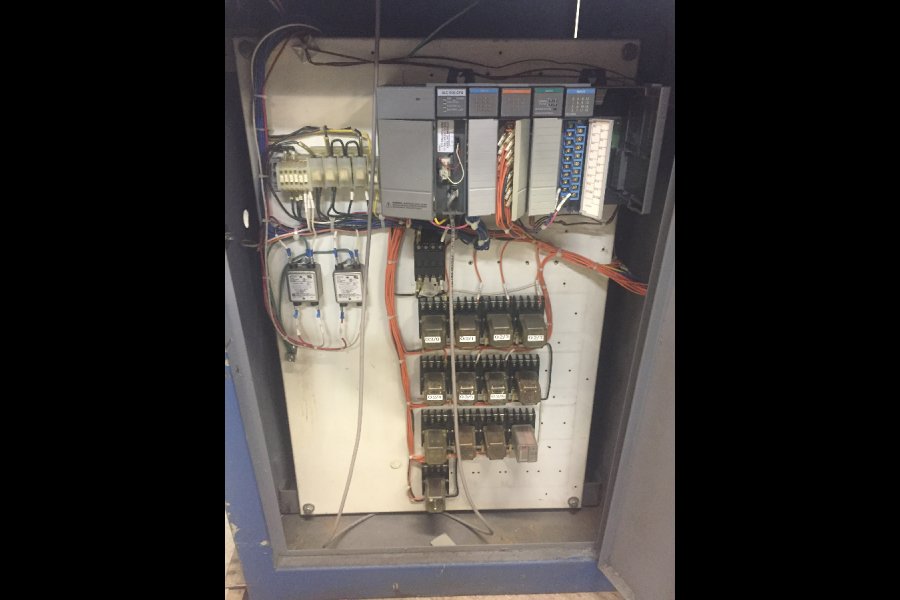

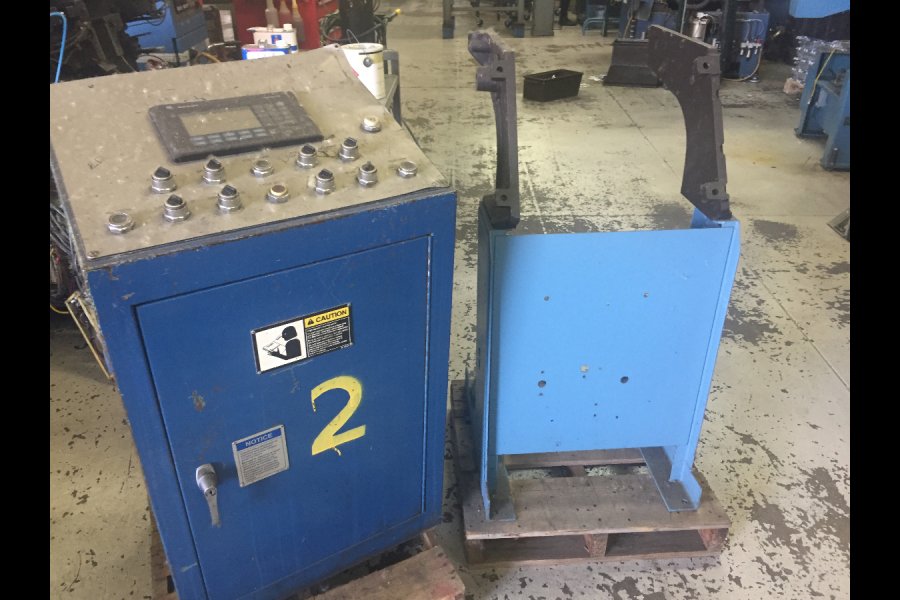

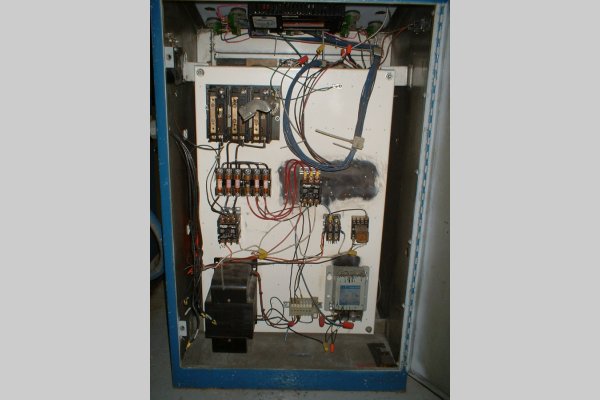

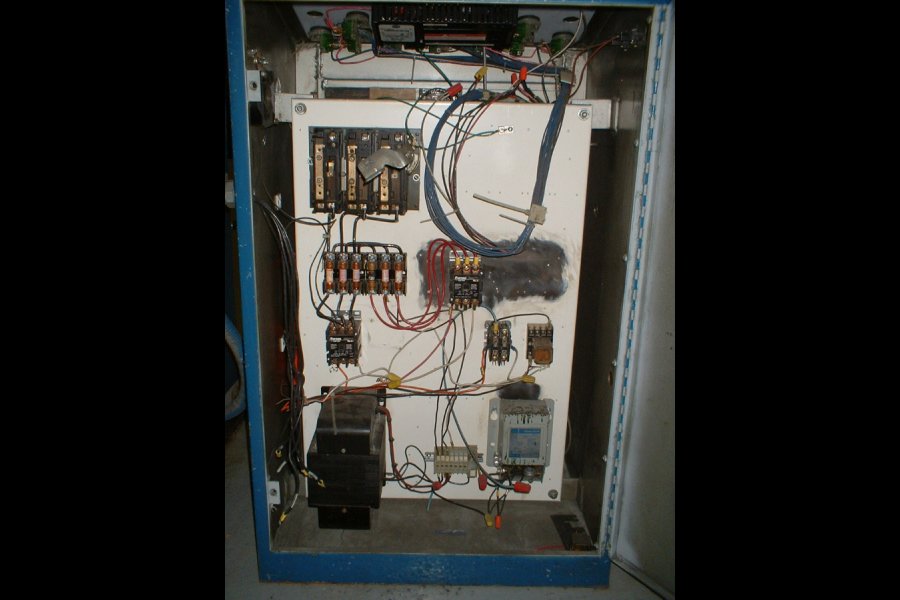

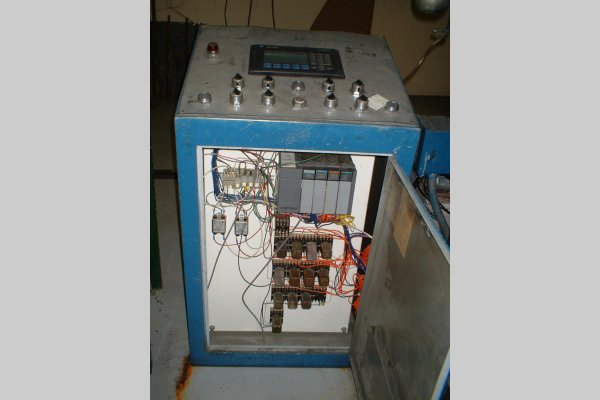

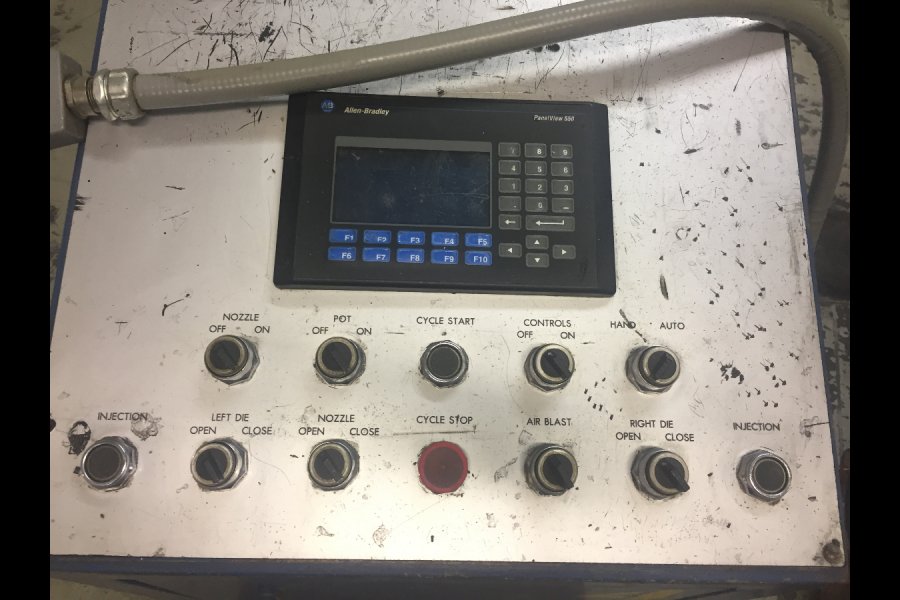

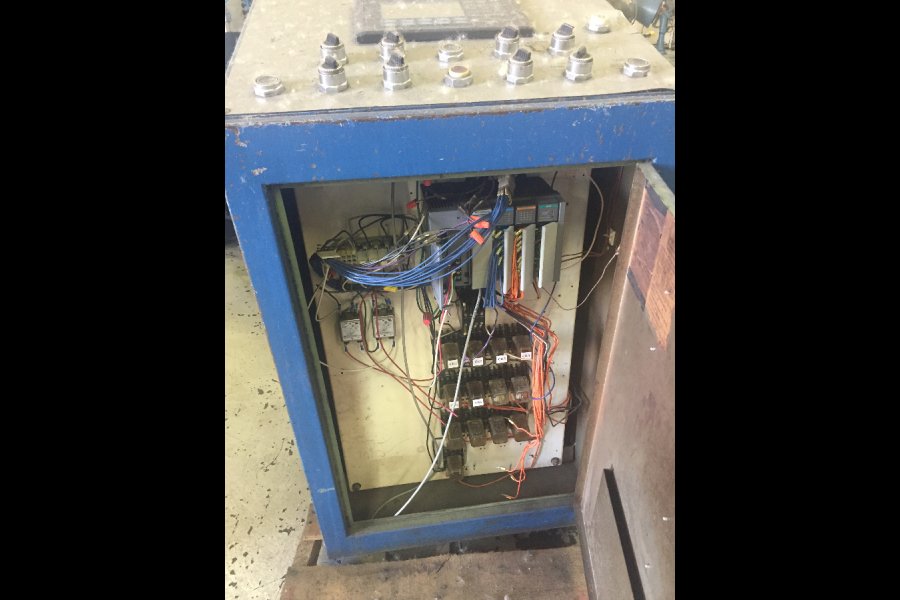

- Allen Bradley PLC controls with panel view touch screens
Item Specifications for DCM-5011
| Specifications | |
|---|---|
| Injection Force |
Max. 1177 lbs. at 100 P.S.I.
|
| Injection Pressure |
1961 P.S.I.
|
| Dry Cycle Rate |
75 cycles per minute
|
| Standard Die Area |
1½ x 1½ (38mm x 38mm)
|
| Optional Die Areas |
Up to 2-1/8
|
| Max. Recommended Casting Weight: |
1¾ oz.
|
| Die Lubrication Units: |
1 spray type, 1 drip type
|
| Pot Capacity: |
Max. 150 lbs.
|
| Electrical Requirements: |
240 volts, 3 phase, 50 or 60 cycles
|
| Maximum Draw: |
96 KW
|
| Water Consumption: |
3.5 gallons per minute at 50 P.S.I
|
| Air Consumption: |
Max. 39 C.F.M.
|
Document(s) For This Machine
Shipping Terms: Ex-works
We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.
Description
Used, Dynacast Model A2 22 Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: One (1) Lot of Four (4) Used Dynacast Machines for Parts or for Rebuild, Allen Bradley PLC controls with panel view touch screens , Allen Bradley PLC controls, second Hand, DCM-5011
See jumbo large photos of this Dynacast A2
