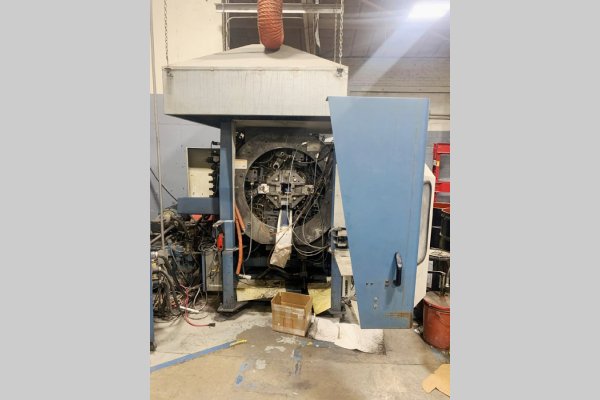

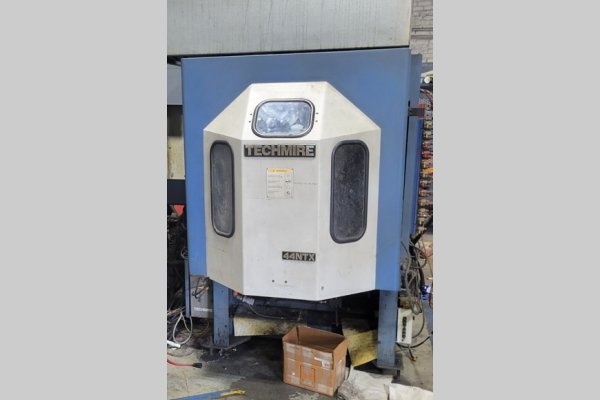

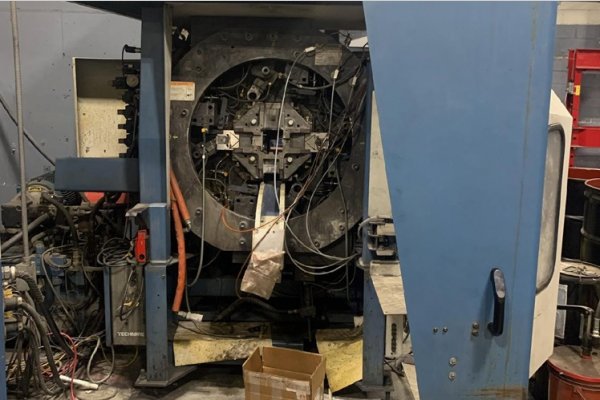

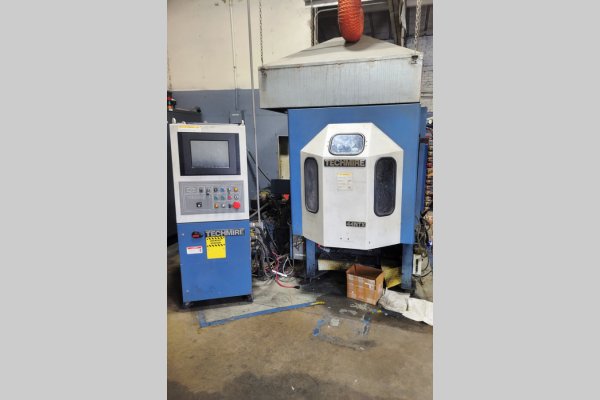

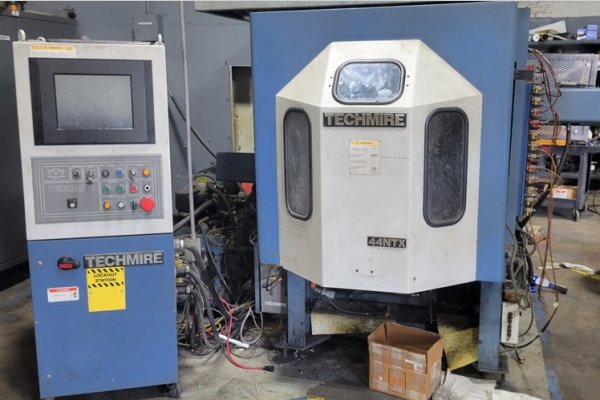

Used Techmire Model: 44NTXR 44 NTXR 25 US Tons Clamping Force Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Techmire
Model: 44NTXR
Size: 44 NTXR 25 US Tons Clamping Force
Inventory Number: DCM-5600
Used Techmire Model: 44NTXR 44 NTXR 25 US Tons Clamping Force Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine.
Features & Accessories:
- New in 2003 - Features Techmire NTX Design with improved Clamping Ring System

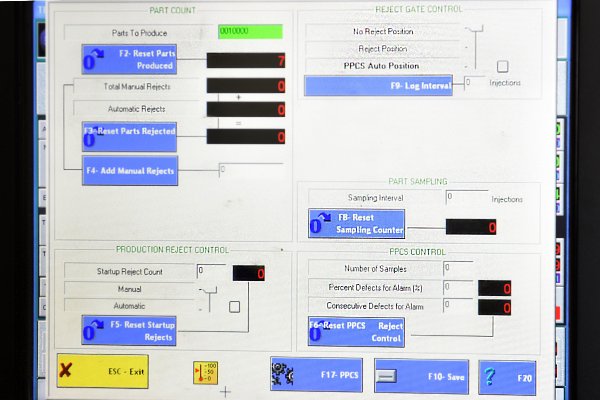

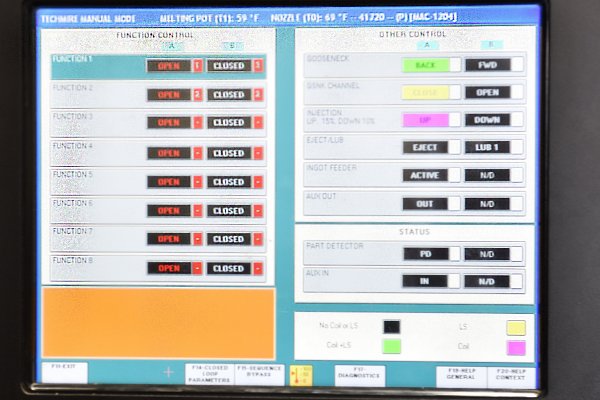

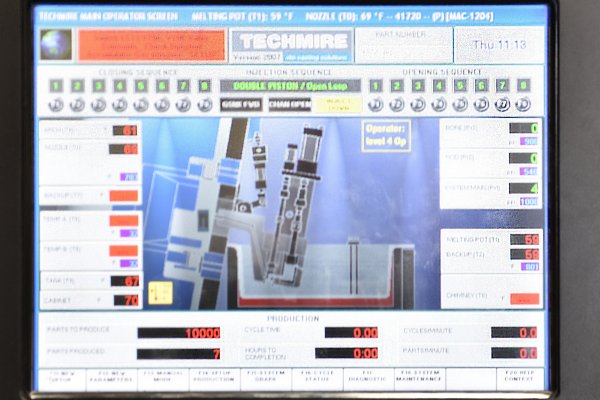

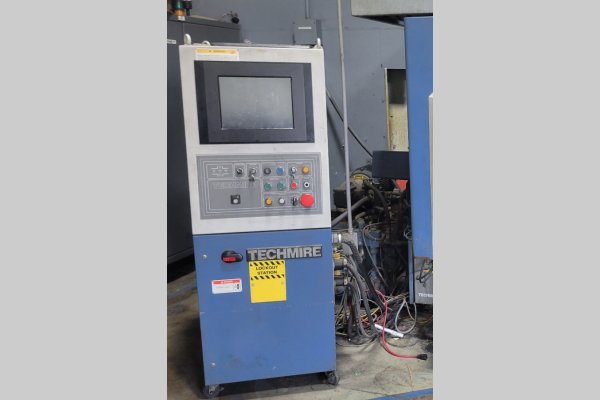

- Techmire P.P.C.S. Process Parameters and Shot Monitoring System (PCCS) Real-Time Programmable System for Accepting or Rejecting Parts at time of Casting
- Equippped with optional Techmire Automatic Linkage Lubrication System

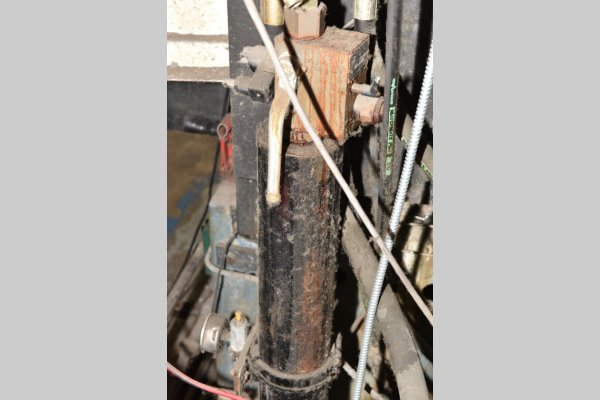

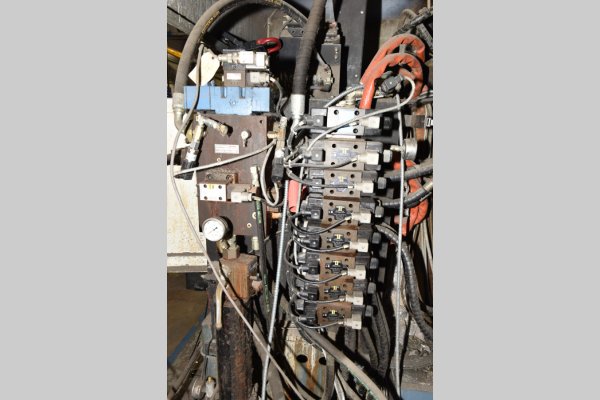

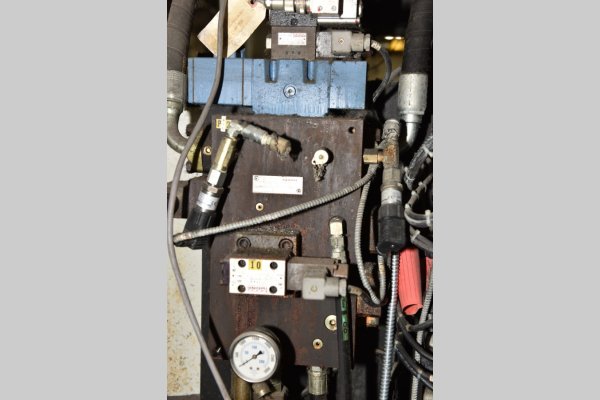

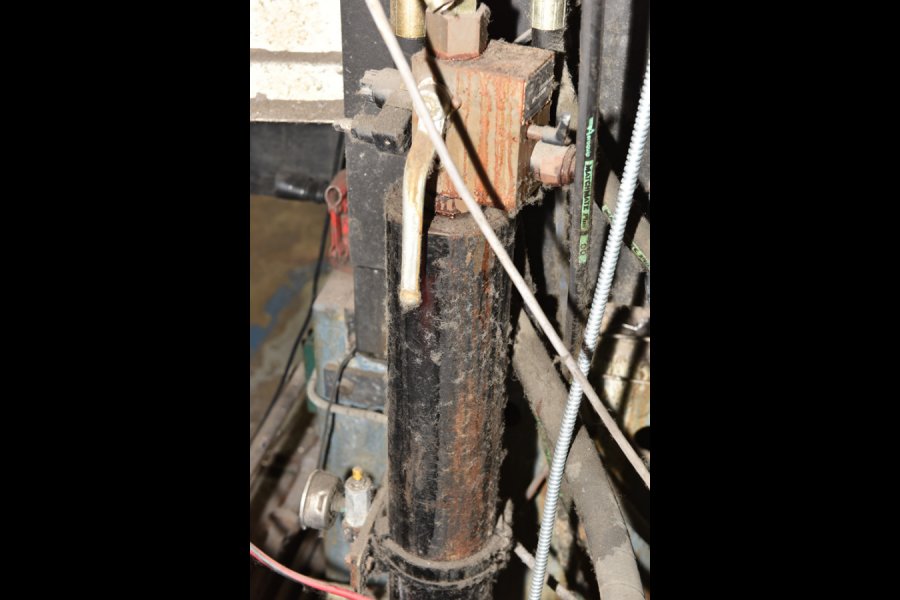

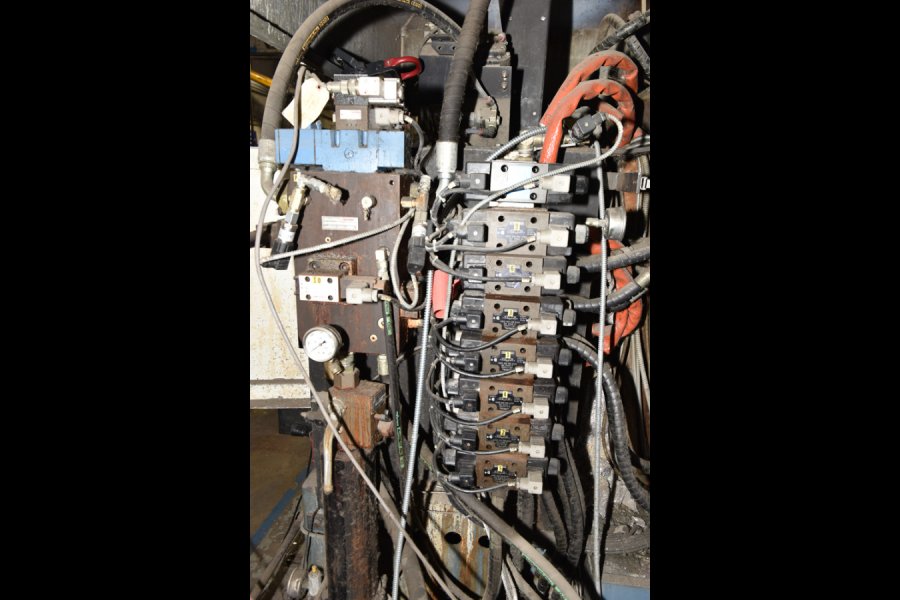

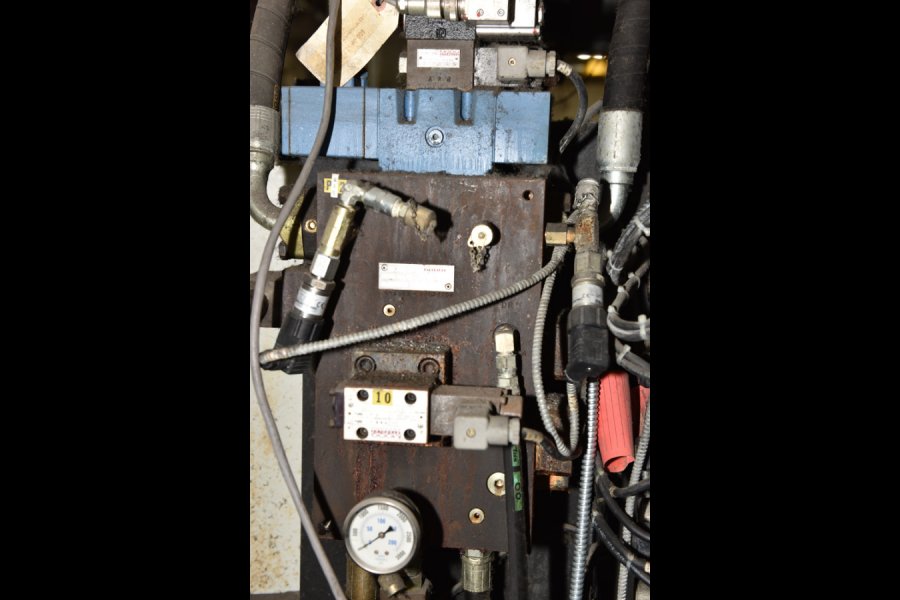

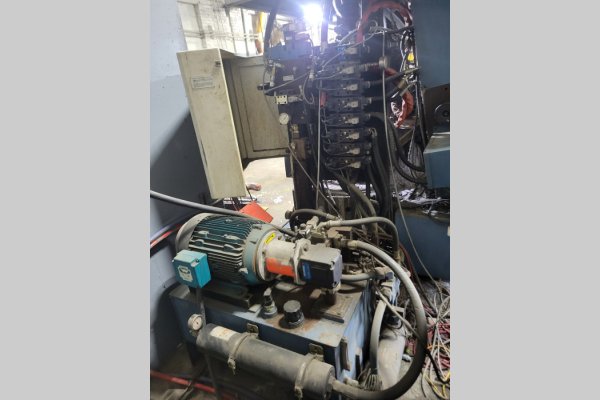

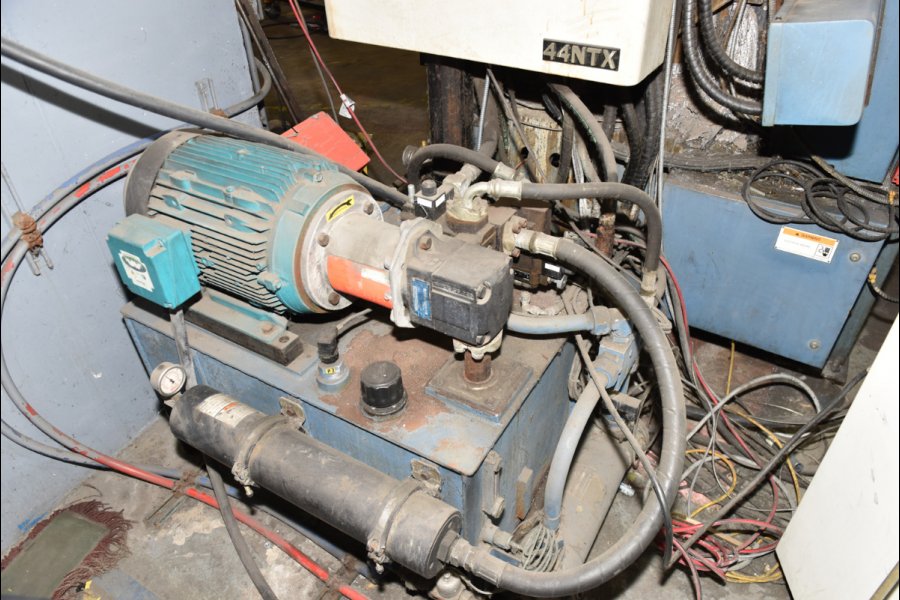

- Equipped with 20 HP hydrauilc system with Techmire Booster Cylinder (Hydraulic Piston Accumulator)

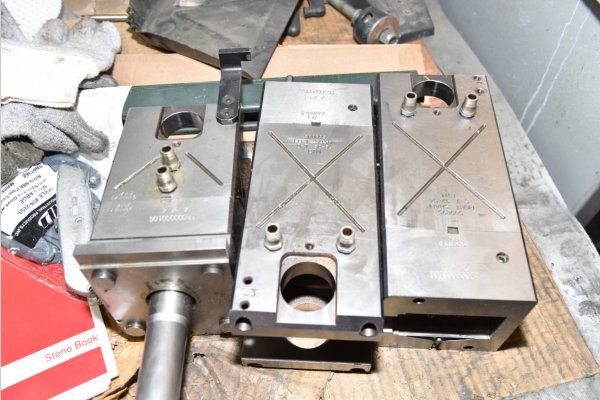

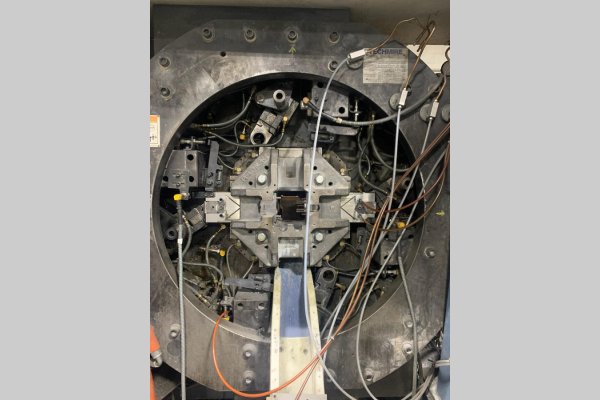

- Currently Configured with Four (4) Slides, Expandable to Six (6) Slides

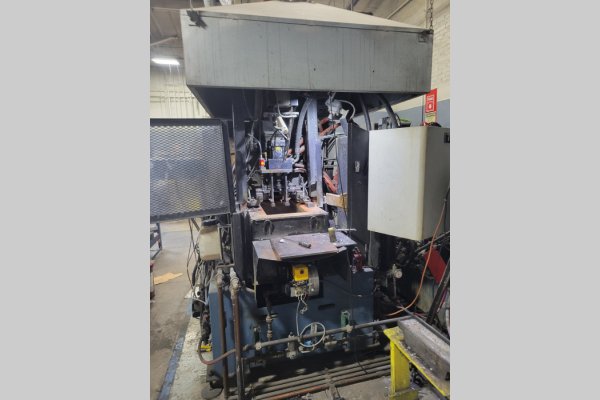

- Automatic Ingot Feeder System, Optional Metal Mixer System for Melting Pot
- Techmire 44 NTXR (aka: Techmire 4x4 or Techmire 44 or 4 x 4) Die Casting Machines are Manufactured in Montreal, Quebec Canada
Notice: Undefined index: feature7 in /home/diecastm/public_html/modules/machineshow-seo2018.php on line 455
Item Specifications for DCM-5600
| Specifications | |
|---|---|
| Clamping Force: |
25 U.S. Tons
|
| Die Motions - Current/Maximum: |
4 motions (slides) installed
|
| Standard Die Size: |
4 x 4 inches
|
| Individual Die Stroke/Total Die Opening: |
2 inches/4 inches
|
| Injection Plunger Diameter/Stroke: |
1.875 inches/2.4 inches
|
| Theroetical Injection Capacity/Recomended Maximum |
14.5 ounces/7.25 ounces
|
| Injection Speed: |
56.29 inches per second
|
| Metal Pressure (maximum) |
4,000 psi
|
| Machine System Pressure: |
1,355 PSI
|
| Melting Pot Capacity: |
8.1 gallons
|
| Furnace type/Energy: |
Natural Gas, 110,000 BTU
|
| Machine Weight (approxiamte): |
3,700 pounds
|
Shipping Terms: Ex-works
We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.
Description
Used, Techmire Model 44NTXR 44 NTXR 25 US Tons Clamping Force Multi-slide Hot Chamber Miniature Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Techmire P.P.C.S. Process Parameters and Shot Monitoring System (PCCS) Real-Time Programmable System for Accepting or Rejecting Parts at time of Casting, Equippped with optional Techmire Automatic Linkage Lubrication System, Equipped with 20 HP hydrauilc system with Techmire Booster Cylinder (Hydraulic Piston Accumulator), Currently Configured with Four (4) Slides, Expandable to Six (6) Slides, Automatic Ingot Feeder System, Optional Metal Mixer System for Melting Pot, Techmire 44 NTXR (aka: Techmire 4x4 or Techmire 44 or 4 x 4) Die Casting Machines are Manufactured in Montreal, Quebec Canada, Techmire controls, second Hand, DCM-5600
See jumbo large photos of this Techmire 44NTXR
