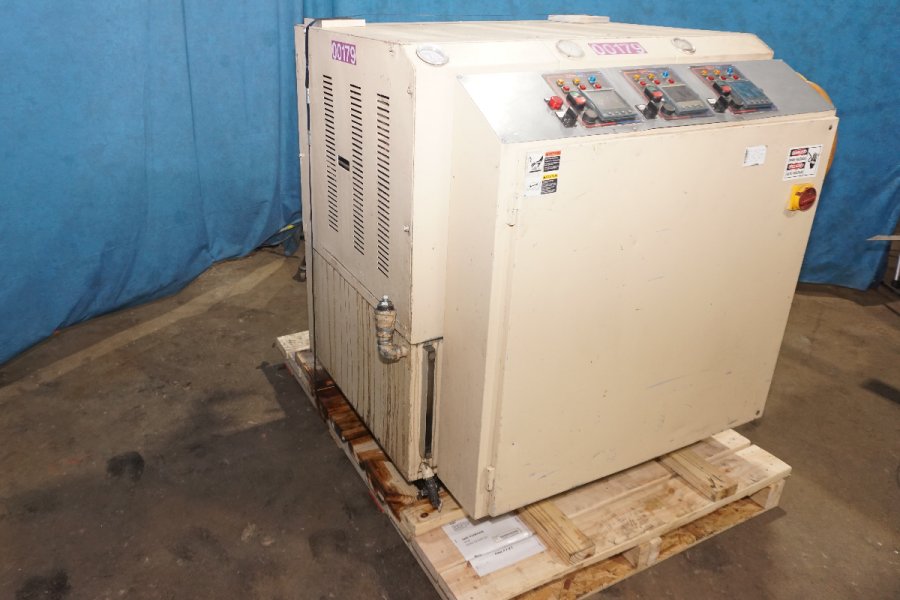

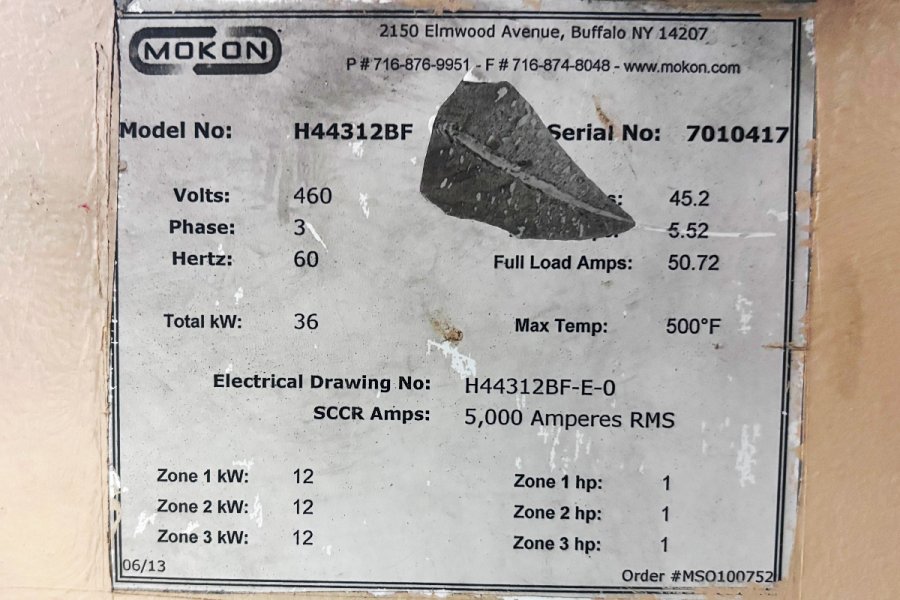

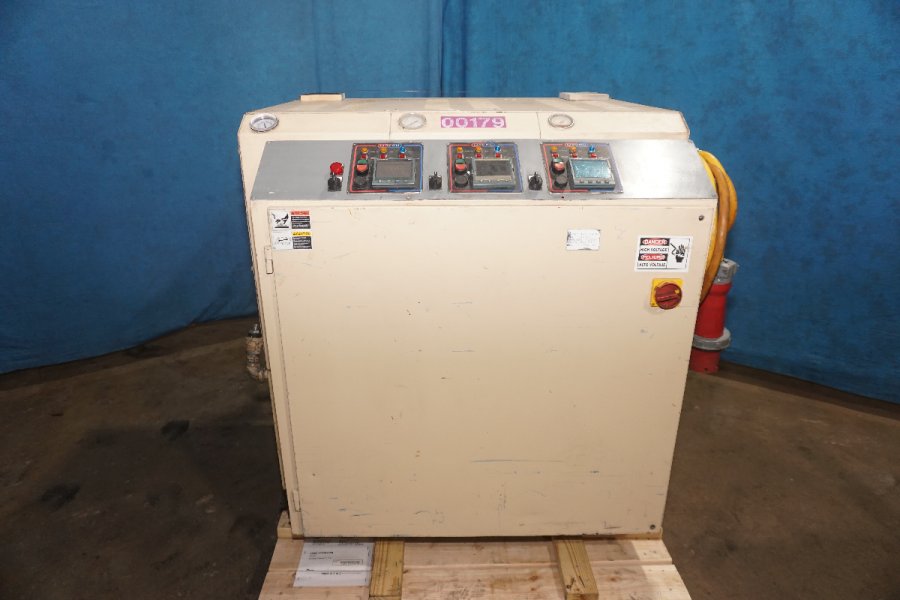

Used Mokon Model: H44312BF 36 kW (12 kW per zone) Three Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
Status: Sold - View Available
We offer for sale, subject to availability, prior sale and the terms listed below:
Manufacturer: Mokon
Model: H44312BF
Size: 36 kW (12 kW per zone)
Inventory Number: DCM-5688
Used Mokon Model: H44312BF 36 kW (12 kW per zone) Three Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit.
Features & Accessories:
- Call us on our Hot Oil Temperature Control Unit Hot Line 7:00 AM to 7:00 PM at 1-847-360-9170 Extension 2
- HTF 500 Series Mokon Rated for 500 Fahrenheit Operation
- Eurotherm 2204e Microprocessor Digital Controller
- Water Cooling Circuit for Process Cooling controlled by the Eurotherm 2204e Microprocessor
- Built-in pump pressure relief valve.
- Unit on casters for easy movement
Item Specifications for DCM-5688
| Specifications | |
|---|---|
| Total Heating Power: |
36 KW
|
| Main Heater Power Per (Zone #1, #2 & #3 ): |
12 KW
|
| Pump Motor Size Per (Zone #1, #2 & #3 ): |
1 HP @1,150 RPM
|
| Flow Rate Per (Zone #1, #2 & #3 ): |
10 gallons per minute
|
| Connection size/type Per (Zone #1, #2 & #3 ): |
3/4 inch NPT
|
| Maximum Operating Temperature: |
500 degrees F
|
| Overall Size (L x W x H): |
44 x 45 x 51 inches
|
| Power Requirement @ 50.9 amp |
460 volt, 3 phase, 60 cycle
|
| Weight: |
1,160 pounds
|
Description
Used, Mokon Model H44312BF 36 kW (12 kW per zone) Three Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: HTF 500 Series Mokon Rated for 500 Fahrenheit Operation, Eurotherm 2204e Microprocessor Digital Controller, Water Cooling Circuit for Process Cooling controlled by the Eurotherm 2204e Microprocessor, Built-in pump pressure relief valve., Unit on casters for easy movement Eurotherm 2204e Microprocessor controls, second Hand, DCM-5688
