Used HPM Model: D-250-Z 250 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine

Print PDF

Status: Available

We offer for sale, subject to availability, prior sale and the terms listed below:

Manufacturer: HPM

Model: D-250-Z

Size: 250 Ton

Inventory Number: DCM-5315

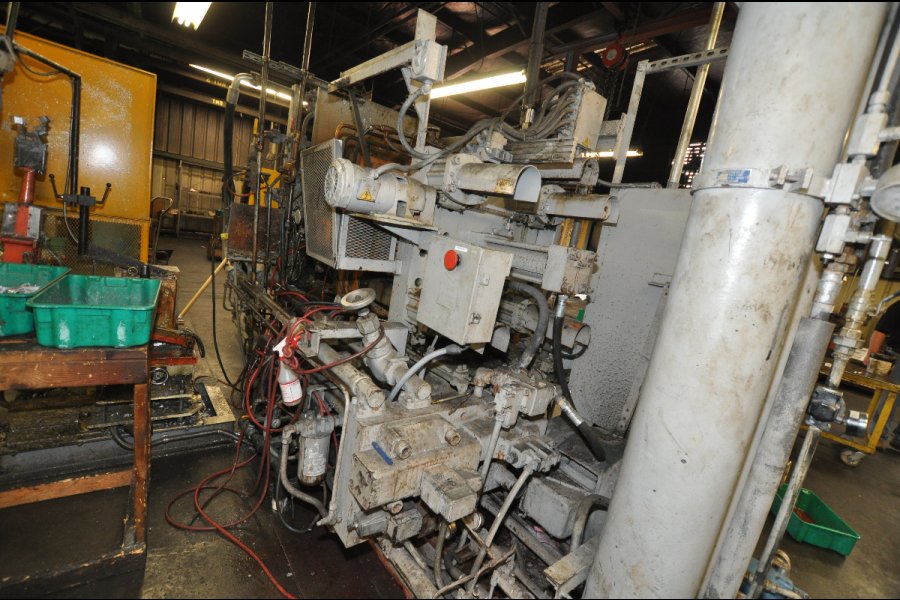

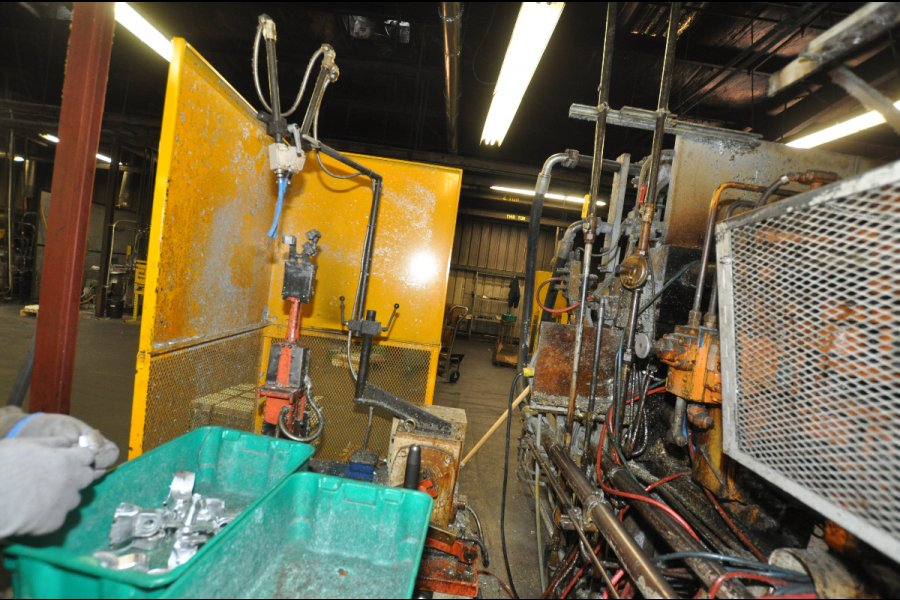

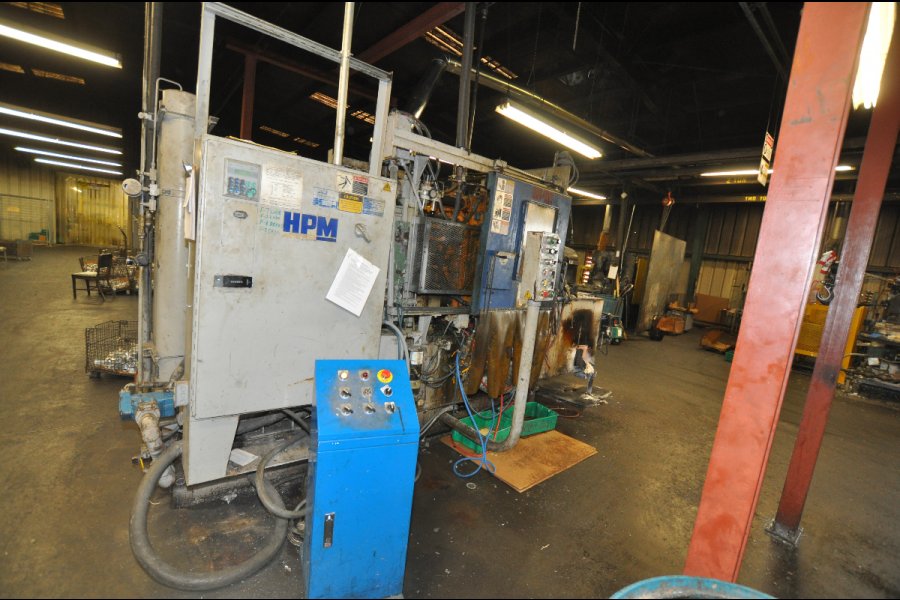

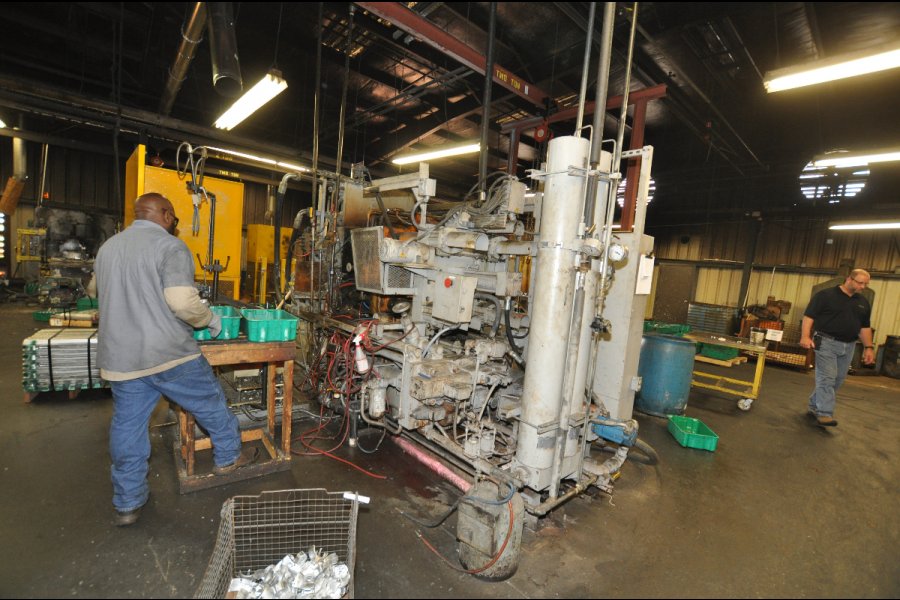

Used HPM Model: D-250-Z 250 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine.

View Available Hot Chamber Die Casting Machines

Click above for larger image

Features & Accessories:

  • Factory Rebuilt by HPM
  • Electric Motorized Die Height Adjustment
  • One (1) Axillary Core Circuit on the Moving Platen
  • Mechanical Ejection System
  • Air Safety Ratchet Device
  • Helper Side Automatic Parts Extractor
  • Trabon Central Lubrication System - Oil Type

Item Specifications for DCM-5315

Locking Force:
250 tons
Tie Bar Diameter:
4 inches
Clearance Between Tie Bars:
19 x 19 inches
Die Thickness (minimum - maximum):
10 - 24 inches
Die Stroke (minimum - maximum):
10 inches
Moving Platen Size (T x V x H) Stationary:
6.25 x 32 x 32 inches
Moving Platen Size (T x V x H) Moving:
5.75 x 32 x 32 inches
Shot Positions:
Center and 5 inches below center
Cylinder Stroke:
7.25 inches
25 hp
Machine Size:
15 x 7 x 7.5 feet
Machine Weight:
20,000 pounds

Shipping Terms: Ex-works

We offer same day shipping on many of our products with next day delivery available within the United States in many cases. We can supply both domestic and international export packing using ISPM-15 certified materials. We can arrange contractor services for dismantling, rigging, packing and transportation. Within North America we can ship single pieces weighing up to 182,000 pounds/82,727 kg. We have shipped hundreds of die casting machines internationally up to 4,000 tons.


Used, HPM Model D-250-Z 250 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Electric Motorized Die Height Adjustment, One (1) Axillary Core Circuit on the Moving Platen, Mechanical Ejection System, Air Safety Ratchet Device, Helper Side Automatic Parts Extractor, Trabon Central Lubrication System - Oil Type, Allen Bradley SLC 5/03 Solid State Controls controls, second Hand, DCM-5315

See jumbo large photos of this HPM D-250-Z
